1602W–02
A36661
16–10
–
COOLING
WA
TER PUMP ASSY
(2AZ–FE)
1829
Author:
Date:
2002 CAMRY REP
AIR MANUAL (RM881U)
INSPECTION
1.
INSPECT
W
A
TER PUMP ASSY

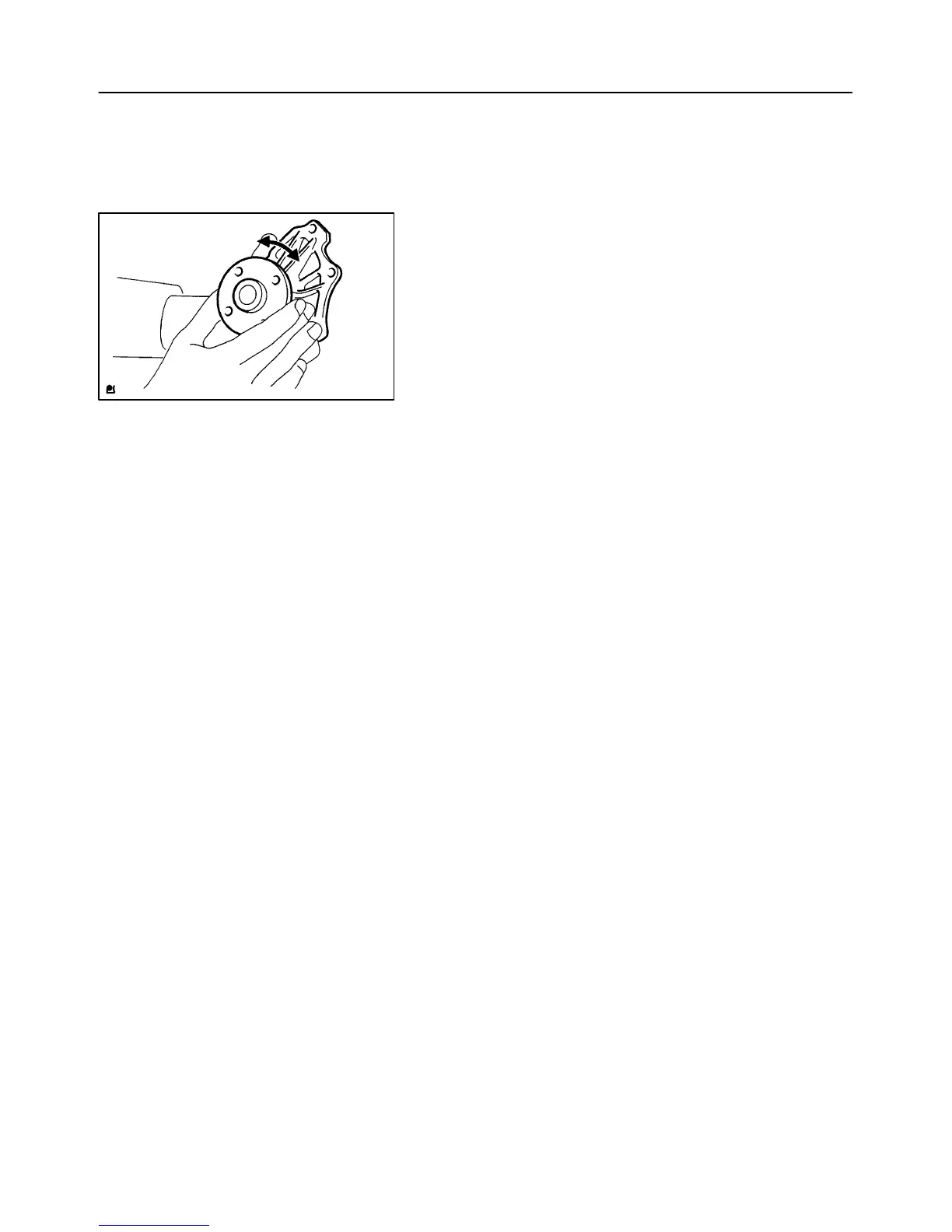

(a)
Visually check the drain hole coolant leakage.
(b)
Turn the pulley
, and check that the water
pump bearing
moves smoothly and quietly
.
