–REAR SUSPENSION SHOCK ABSORBER ASSY REAR LH
27–5
1938Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

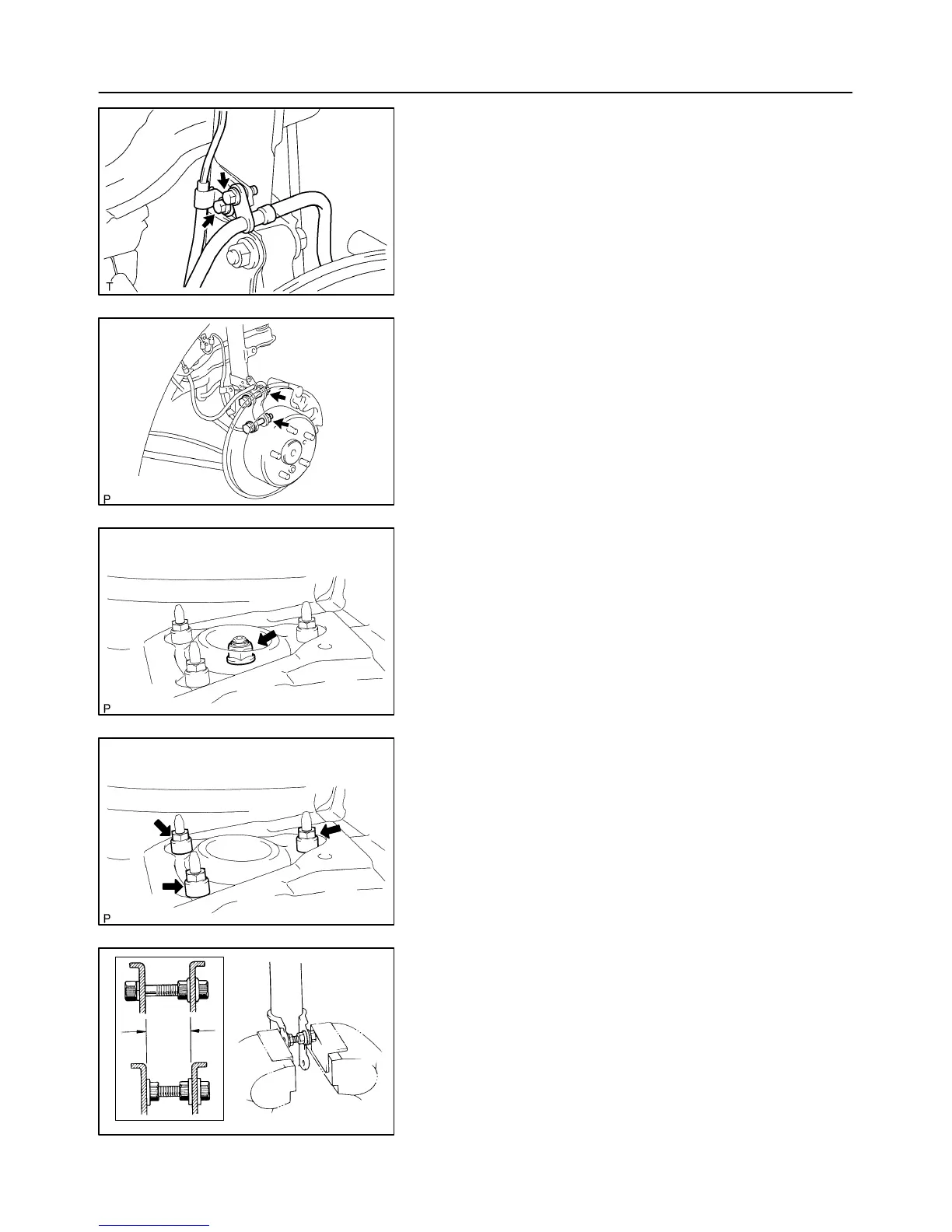

11. REMOVE REAR SHOCK ABSORBER WITH COIL
SPRING
(a) Remove the 2 bolts, disconnect the flexible hose and ABS
speed sensor wire harness from shock absorber.
(b) Loosen the 2 nuts on the lower side of the shock absorber.
HINT:
Do not remove the 2 bolts.
(c) Support the rear axle carrier with a jack.
(d) Remove the rear suspension support No. 1 cover LH.
(e) Loosen the suspension support center nut.
NOTICE:
Do not remove the nut.
HINT:
If not disassembling the rear shock absorber, it is not necessary
to loosen the nut.
(f) Remove the 3 nuts of the suspension support.
(g) Lower the rear axle carrier and remove the 2 nuts and
bolts on the lower side of the shock absorber.
(h) Remove the shock absorber with the coil spring.
12. FIX REAR SHOCK ABSORBER WITH COIL SPRING
13. REMOVE SHOCK ABSORBER ASSY REAR LH
(a) Install 2 nuts and a bolt to the bracket at the lower part of
the shock absorber, and secure it in a vise.
