–REAR SUSPENSION STRUT ROD ASSY REAR
1953Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

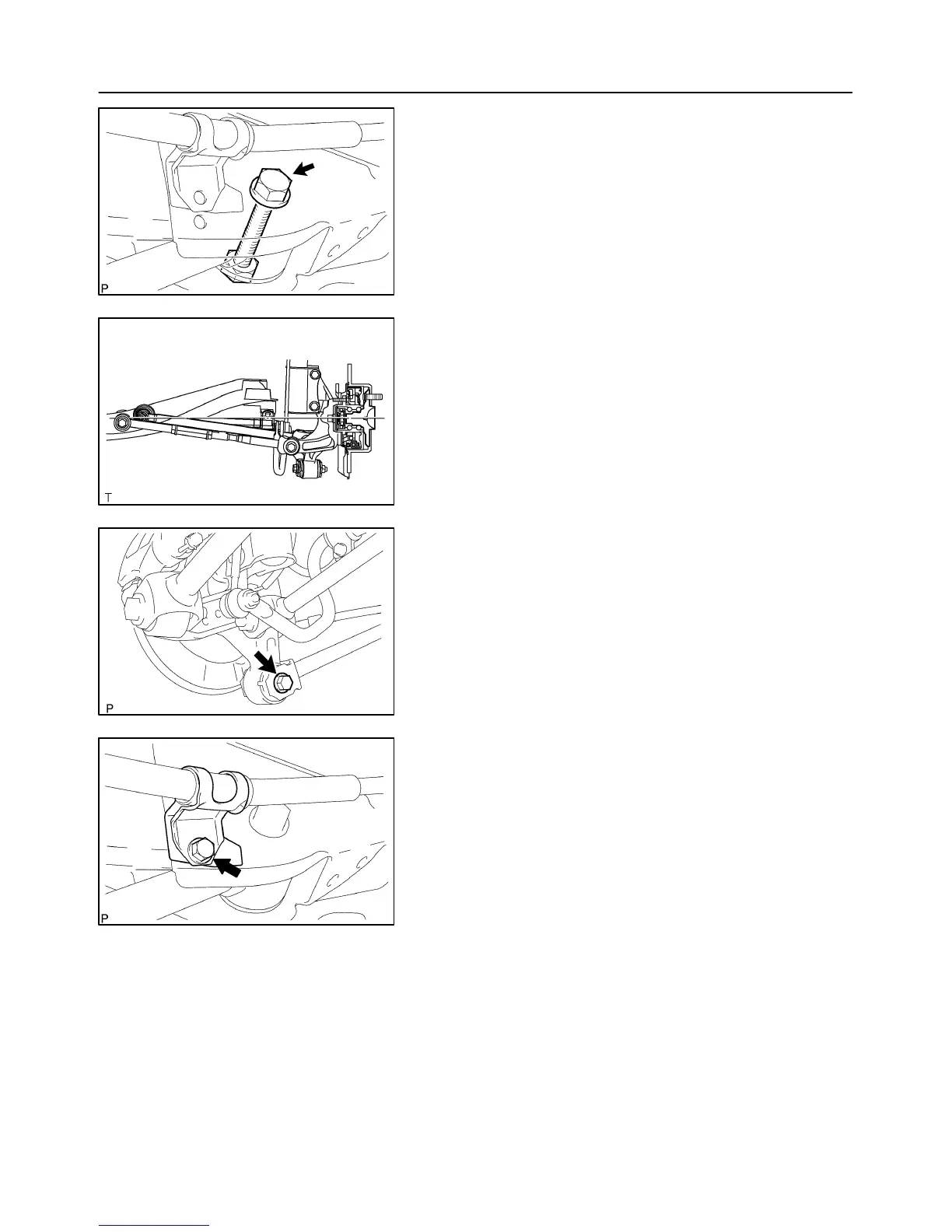

(b) Connect the strut rod (inner side) with the bolt.
Torque: 113 N⋅m (1,150 kgf⋅cm, 83 ft⋅lbf)
HINT:
Keep the nut fixed while tightening the bolt.
4. STABILIZE SUSPENSION
(a) Jack up the rear axle carrier, placing a wood block be-
tween them. Apply load to the suspension so that the
installed bolt of the suspension arm assy No. 1 (vehicle
side) is horizontally aligned with the center of the rear axle
hub.
5. FULLY TIGHTEN STRUT ROD ASSY REAR
(a) Fully tighten the bolt.
Torque: 113 N⋅m (1,152 kgf⋅cm, 83 ft⋅lbf)
HINT:
Keep the nut fixed while tightening the bolt.
(b) Install the parking brake cable with the bolt and nut.
Torque: 5.4 N⋅m (55 kgf⋅cm, 48 in.⋅lbf)
6. INSTALL REAR WHEEL
Torque: 103 N⋅m (1,050 kgf⋅cm, 76 ft⋅lbf)
7. INSPECT REAR WHEEL ALIGNMENT(See page 27–3)
