F41698

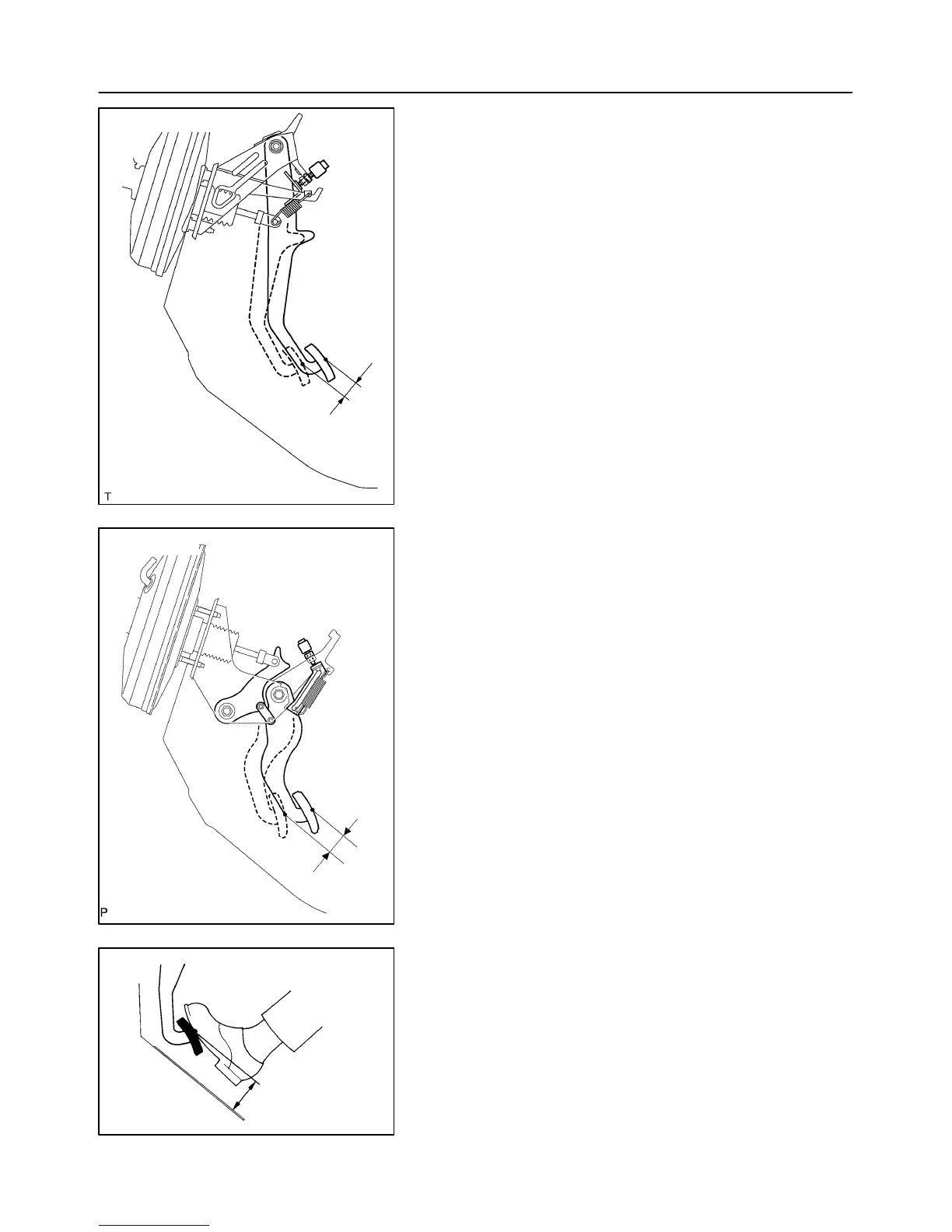

Pedal Free Play
Normal type:
F41700
Link type:
Pedal
Free Play
R00934
Pedal Reserve
Distance
–BRAKE BRAKE PEDAL SUPPORT ASSY
32–7
1995Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
2. CHECK PEDAL FREE PLAY
(a) Stop the engine and depress the brake pedal several
times until there is no more vacuum left in the booster.
(b) Push in the pedal until the beginning of the resistance is
felt. Measure the distance, as shown.
Pedal freeplay: 1 – 6 mm (0.04 – 0.24 in.)
If incorrect, check the stop lamp switch assy clearance.
If the clearance is OK, then troubleshoot the brake system.
Stop lamp switch clearance:
0.5 – 2.5 mm (0.020 – 0.098 in.)
3. CHECK PEDAL RESERVE DISTANCE
(a) Release the parking brake pedal.
With engine running, depress the pedal and measure the
pedal reserve distance, as shown.
Pedal reserve distance from asphalt sheet at 490 N
(50 kgf, 110.2 lbf): More than 63 mm (2.48 in.)
If incorrect, troubleshoot the brake system.
