–BRAKE BRAKE MASTER CYLINDER SUB–ASSY
32–13
2001Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
7. REMOVE MASTER CYLINDER RESERVOIR GROMMET
(a) Remove the 2 master cylinder reservoir grommets.

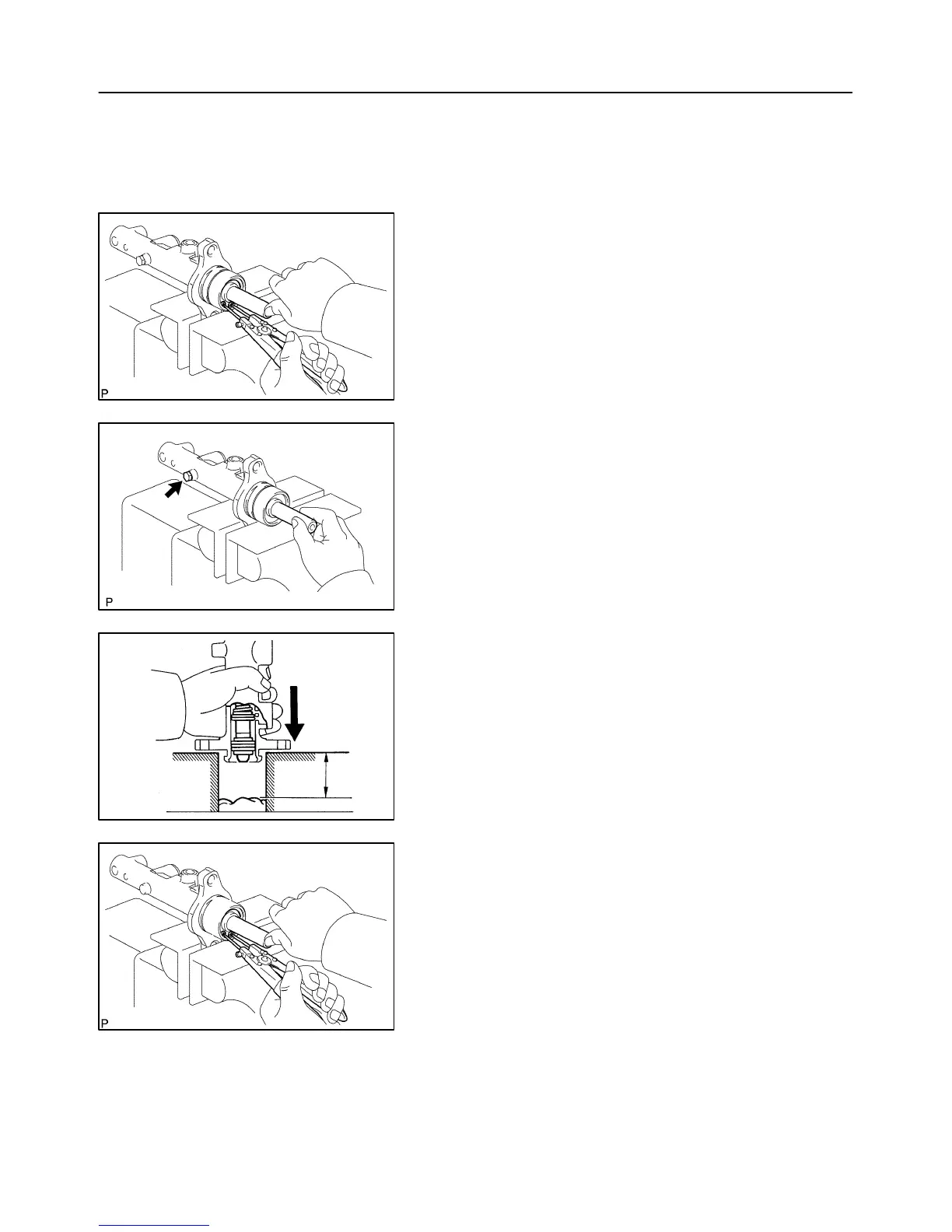

8. REMOVE BRAKE MASTER CYLINDER KIT(W/O VSC)
(a) Place master cylinder in vise.
(b) Remove the O–ring.
(c) Push in the piston and remove the snap ring with snap
ring pliers.
(d) Push in the piston and remove the piston stopper bolt and
gasket.
(e) Remove the No.1 piston sub–assy, pulling straight out not
at an angle.
NOTICE:
If pulled out at an angle, there is a possibility that the cylin-
der bore could be damaged.
(f) Place a waste cloth and 2 wooden blocks on the work
table and lightly edges until the No.2 piston sub–assy
drops out of the cylinder.
HINT:
Make sure the distance (A) from the rag the top of the blocks
is at least 100 mm (3.94 in.).
NOTICE:
If pulled out at an angle, there is a possibility that the cylin-
der bore could be damaged.
9. REMOVE BRAKE MASTER CYLINDER KIT(W/ VSC)
(a) Place master cylinder in vise.
(b) Remove the O–ring.
(c) Push in the piston and remove the snap ring with snap
ring pliers.
NOTICE:
If pulled out at an angle, there is a possibility that the cylin-
der bore could be damaged.
