32–26
–BRAKE FRONT BRAKE
2014Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

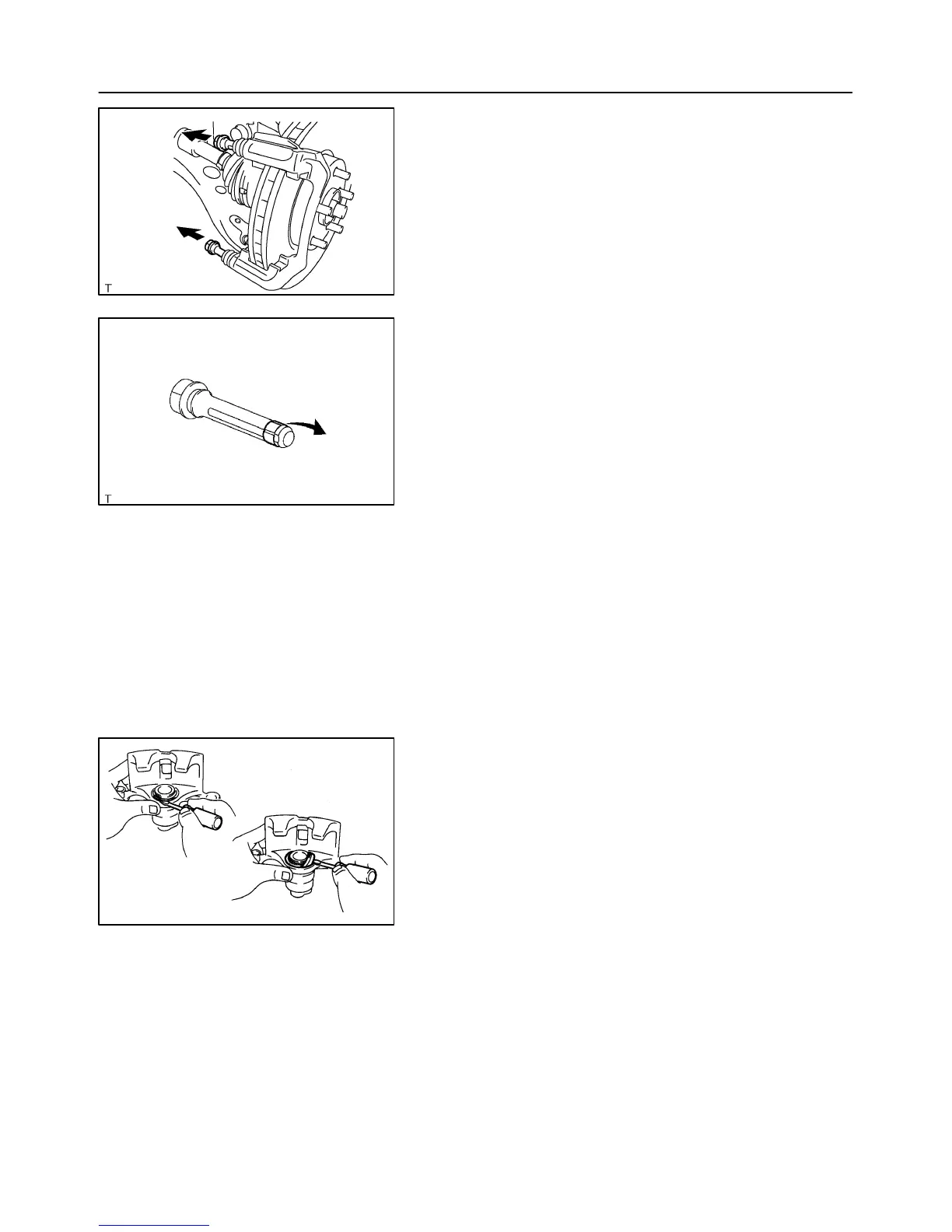

9. REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN
(a) Remove the 2 cylinder slide pins from the disc brake cylin-
der mounting.
10. REMOVE FRONT DISC BRAKE CYLINDER SLIDE
BUSH
(a) Remove the cylinder slide bush from the cylinder slide
pin.
11. REMOVE FRONT DISC BRAKE BUSH DUST BOOT
(a) Remove the 2 bush dust boots from the disc brake cylinder mounting.
12. REMOVE FRONT DISC BRAKE CYLINDER MOUNTING LH
(a) Remove the 2 bolts and disc brake cylinder mounting LH.
13. REMOVE CYLINDER BOOT
(a) Using a screwdriver, remove the set ring and cylinder
boot.
To Next Page
