F41008
N
â‹…
m
(kgf
â‹…
cm,
ft
â‹…
lbf)
:

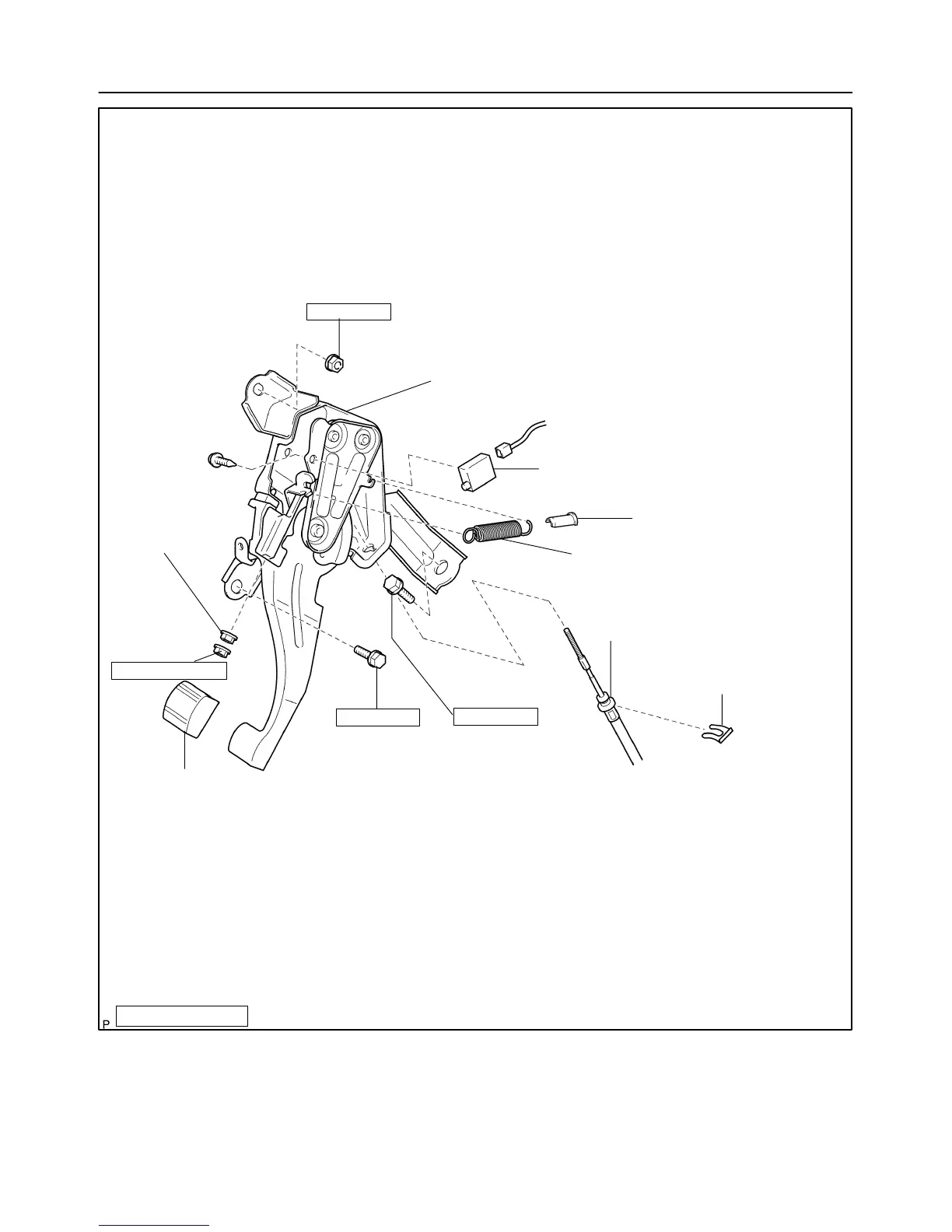

Specified torque
39 (398, 29)
5.4 (55, 48 in.
â‹…
lbf)
Lock Nut
Adjusting Nut
Parking Brake Control Pedal Assy
Parking Brake Switch Assy
T
ension Spring
Parking Brake Cable Assy No.1
Clip
39 (398, 29)
39 (398, 29)
Parking
Brake Control Pedal Assy:
Parking Pedal Pad
Return Spring Damper
33–4
–
P
ARKING BRAKE
P
ARKING BRAKE
2055
Author:
Date:
592
594
Table of Contents
General Information
1
General Description
1
Index
1
Repair Procedures
1
How to Use this Manual
1
Service Specifications
2
Terms Definition
2
SI Unit
3
Identification Information
4
Vehicle Identification Number
4
Factory of Production
4
Engine Serial Number and Transaxle Serial Number
4
Jacking up and Supporting Vehicle
5
Basic Repair Hint
5
Hints on Operations
5
Repair Instructions
5
Precoated Parts
6
Gaskets
6
Bolts, Nuts and Screws
6
Fuses
6
Clips
7
Removal and Installation of Vacuum Hoses
8
For Vehicles Equipped with SRS Airbag and Seat Belt Pretensioner
9
Torque When Using Torque Wrench with Extension Tool
9
Spiral Cable
10
Horn Button Assembly
10
Instrument Panel Passenger Airbag Assembly
11
Front Seat Airbag Assembly
12
Curtain Shield Airbag Assembly
13
Seat Belt Pretensioner
14
Airbag Sensor Assembly
14
Wire Harness and Connector
14
Electronic Control
15
Removal and Installation of Fuel Control Parts
15
Removal and Installation of Battery Terminal
15
Handling of Electronic Parts
15
Removal and Installation of Engine Intake Parts
16
Handling of Hose Clamps
16
For Vehicles Equipped with Mobile Communication System
16
Removing and Installing of Fuel System Parts
16
Notices When Using 2-Wheel Drum Tester
17
For Vehicles Equipped with Traction Control (Trac) System
17
For Vehicles Equipped with Catalytic Converter
17
For Vehicles Equipped with Vehicle Skid Control (Vsc) System
17
Vehicle Lift and Support Locations
18
Notice about Vehicle Condition When Jacking up
18
Notice for Using 4 Post Lift
18
Notice for Using Jack and Safety Stand
18
Notice for Using Swing Arm Type Lift
19
Notice for Using Plate Type Lift
19
How to Troubleshoot ECU Controlled Systems
20
For Using OBDII Scan Tool or Hand-Held Tester
20
General Information
20
How to Proceed with Troubleshooting
21
Customer Problem Analysis
23
Symptom Confirmation and Diagnostic Trouble Code
24
Symptom Simulation
26
Vibration Method
26
Heat Method
26
Water Sprinkling Method
27
Diagnostic Trouble Code Chart
28
Problem Symptoms Table
29
Circuit Inspection
30
Electronic Circuit Inspection Procedure
31
Basic Inspection
31
Resistance Measuring Condition of Electronic Parts
31
Handling of Connector
31
Handling of Wire Harness
32
Check Open Circuit
32
Repair Method of Connector Terminal
32
Check Short Circuit
34
Check and Replace ECU
35
Terms
36
Abbreviations Used in this Manual
36
Glossary of SAE and Toyota Terms
41
Diagnostics Preparation
44
Diagnostics Recommended Tools
44
Engine Control System Preparation
46
Fuel Preparation
47
Emission Control Preparation
49
Intake Preparation
50
Engine Mechanical Preparation
51
Exhaust Preparation
61
Cooling Preparation
62
Cooling Recommended Tools
63
Lubrication Preparation
64
Lubrication Recommended Tools
66
Ignition Preparation
67
Starting & Charging Preparation
68
Starting & Charging Recommended Tools
68
Front Suspension Preparation
69
Front Suspension Recommended Tools
69
Rear Suspension Preparation
70
Tire & Wheel Preparation
71
Drive Shaft / Propeller Shaft Preparation
72
Brake Preparation
75
Parking Brake Preparation
78
Automatic Transmission/Trans Preparation
79
Manual Transmission/Transaxle Preparation
81
Clutch Preparation
87
Clutch Recommended Tools
87
Steering Column Preparation
88
Steering Column Recommended Tools
88
Power Steering Preparation
89
Heater & Air Conditioner Preparation
94
Heater & Air Conditioner Recommended Tools
96
Supplemental Restraint System Preparation
97
Supplemental Restraint System Recommended Tools
98
Seat Belt Preparation
99
Lighting Preparation
100
Wiper & Washer Preparation
101
Audio & Visual System Preparation
102
Communication System Preparation
103
Windshield/Windowglass/Mirror Preparation
104
Instrument Panel/Meter Preparation
105
Seat Preparation
106
Sliding Roof/Convertible Preparation
107
Engine Hood/Door Preparation
108
Exterior/Interior Trim Preparation
109
Vehicle Control System Preparation
110
Cruise Control Preparation
111
Standard Bolt
112
How to Determine Bolt Strength
112
Specified Torque for Standard Bolts
113
How to Determine Nut Strength
114
Engine Control System
115
Service Data
115
Torque Specification
116
Fuel Service Data
117
Fuel Torque Specification
118
Emission Control Service Data
119
Emission Control Torque Specification
120
Intake Service Data
121
Intake Torque Specification
122
Engine Mechanical Service Data
123
Engine Mechanical Torque Specification
129
Exhaust Torque Specification
134
Cooling Service Data
135
Cooling Torque Specification
136
Lubrication Service Data
137
Lubrication Torque Specification
138
Ignition Service Data
139
Ignition Torque Specification
140
Starting & Charging Service Data
141
Starting & Charging Torque Specification
142
Front Suspension Service Data
143
Front Suspension Torque Specification
144
Rear Suspension Service Data
145
Rear Suspension Torque Specification
146
Tire & Wheel Service Data
147
Drive Shaft/Propeller Shaft/Axle Service Data
148
Drive Shaft/Propeller Shaft/Axle Torque Specification
149
Brake Service Data
150
Brake Torque Specification
151
Parking Brake Service Data
152
Parking Brake Torque Specification
153
Automatic Transmission/Transaxle Service Data
154
Automatic Transmission/Transaxle Torque Specification
156
Manual Transmission/Transaxle Service Data
157
Clutch Service Data
163
Clutch Torque Specification
164
Steering Column Service Data
165
Steering Column Torque Specification
166
Power Steering Service Data
167
Power Steering Torque Specification
168
Heater & Air Conditioner Service Data
169
Heater & Air Conditioner Torque Specification
170
Supplemental Restraint System Torque Specification
171
Wiper & Washer Torque Specification
172
Instrument Panel/Meter Torque Specification
173
Engine Hood/Door Torque Specification
174
Inspect Accelerator Pedal Position Sensor
175
Inspection Throttle Body
175
On-Vehicle Inspection
175
SFI System (2AZ-FE)
175
Intake Air Flow Meter Sub-Assy
176
Camshaft Timing Oil Control Valve Assy
176
Accelerator Pedal Assy
177
Throttle Body Assy
177
E.F.I. Engine Coolant Temperature Sensor
177
Knock Control Sensor
178
E.F.I. Circuit Opening Relay Assy
178
E.F.I. ECU Relay
178
Throttle Body Assy (2AZ-FE) Components
179
Remote Throttle Body Assy
180
Install Throttle Body Assy
180
SFI System (1MZ-FE) On-Vehicle Inspection
181
Throttle Body Assy (1MZ-FE) Components
185
Fuel System Precaution
189
Work for Prevent Gasoline from Spilling out
189
Check Fuel Pressure
193
Fuel Injector Assy
196
Fuel Injector Assy Components
198
Fuel Injector Assy Replacement
199
Remove Fuel Delivery Pipe Winjector
199
Install Fuel Injector Assy
199
Install Fuel Delivery Pipe Winjector
200
Fuel Pump Assy (2AZ-FE) Components
201
Remove Fuel Suction Tube Assy W/Pump & Gage
203
Remove Fuel Tank Vent Tube Set Plate
203
Separate Fuel Pump Tube Sub-Assy
203
Install Fuel Pump Tube Sub-Assy
205
Fuel Tank Assy (2AZ-FE) Components
206
Disconnect Fuel Pump Tube Sub-Assy
210
Remove Fuel Tank Assy
210
Remove Fuel Tank over Fill Check Valve Assy
211
Install Fuel Tank over Fill Check Valve Assy
213
Install Fuel Tank Assy
213
Fuel Injector Assy (1MZ-FE) Components
222
Fuel Injector Assy (1MZ-FE) Replacement
223
Fuel Pump Assy (1MZ-FE) Components
225
Fuel Tank Assy (1MZ-FE) Components
230
Emission Control System (2AZ-FE) On-Vehicle Inspection
238
Inspect Air-Fuel Ratio Compensation System
238
Inspect Evap System Line
239
Check Airtightness in Fuel Tank and Filler Pipe
241
Inspect Fuel Cut off Valve and Fill Check Valve
241
Check Air Inlet Line
241
Charcoal Canister Assy
243
Emission Control System (1MZ-FE) On-Vehicle Inspection
248
Ventilation Valve Sub-Assy
255
Fuel Tank Cap Assy
255
Emission Control Valve Set
255
Air Cleaner Cap Sub-Assy
256
Oxygen Sensor
257
Air Fuel Ratio Sensor
257
Inspect EGR Valve Position Sensor
258
EGR System (1MZ-FE) On-Vehicle Inspection
258
EGR Valve Assy
259
Vacuum Control Valve
259
E.G.R. Gas Temperature Sensor
259
Vacuum Switching Valve No.1
260
EGR Valve Assy (1MZ-FE) Replacement
261
Intake Air Control System (1MZ-FE) On-Vehicle Inspection
263
Intake Air Control Valve Assy
264
Intake Air Control Valve Assy No.3
264
Vacuum Switching Valve Assy No.1
265
Intake Air Control Valve Assy (1MZ-FE) Replacement
266
Engine Assembly (2AZ-FE) Inspection
267
Fan and Generator V Belt (2AZ-FE) Replacement
271
Valve Clearance (2AZ-FE) Adjustment
273
Valve Lifter Selection Chart (Intake)
277
Valve Lifter Selection Chart (Exhaust)
278
Partial Engine Assy (2AZ-FE) Components
282
Chain (2AZ-FE) Replacement
290
Camshaft (2AZ-FE) Replacement
304
Cylinder Head Gasket (2AZ-FE) Replacement
311
Remove Intake Manifold
311
Remove No.2 Camshaft
312
Remove Camshaft
312
Install Cylinder Head Gasket
313
Install Cylinder Head Sub-Assy
313
Inspect Cylinder Head Set Bolt
313
Remove Cylinder Head Sub-Assy
313
Install Camshaft
314
Install No.2 Camshaft
315
Install Exhaust Manifold Converter Sub-Assy
315
Install Intake Manifold
315
Timing Gear Case or Timing Chain Case Oil Seal (2AZ-FE) Replacement
317
Remove Crankshaft Pulley
317
Remove Timing Gear Case or Timing Chain Case Oil Seal
318
Install Timing Gear Case or Timing Chain Case Oil Seal
318
Install Crankshaft Pulley
319
Engine Rear Oil Seal (2AZ-FE) Replacement
320
Remove Drive Plate & Ring Gear Sub-Assy(A/T Transaxle)
320
Install Drive Plate & Ring Gear Sub-Assy
321
Remove Engine Rear Oil Seal
321
Install Engine Rear Oil Seal
321
Install Flywheel Sub-Assy
322
Cylinder Head Assy (2AZ-FE) Overhaul
323
Remove Intake Valve
323
Remove Exhaust Valve
323
Inspect Cylinder Head for Flatness
324
Inspect Valve Seats
324
Repair Valve Seats
325
Inspect Camshaft Thrust Clearance
325
Inspect Camshaft Oil Clearance
325
Inspect Inner Compression Spring
327
Inspect Intake Valve
327
Inspect Exhaust Valve
328
Inspect Intake Valve Guide Bush
328
Inspect Exhaust Valve Guide Bush
329
Remove Intake Valve Guide Bush
329
Remove Exhaust Valve Guide Bush
329
Install Intake Valve Guide Bush
329
Install Exhaust Valve Guide Bush
330
Install Ring W/Head Pin
331
Install Stud Bolt
332
Install Valve Stem Oil O Seal or Ring
333
Install Intake Valve
333
Install Exhaust Valve
334
Inspect Connecting Rod Oil Clearance
335
Inspect Connecting Rod Thrust Clearance
335
Cylinder Block (2AZ-FE) Overhaul
335
Remove Piston Sub-Assy W/Connecting Rod
336
Remove Piston Ring Set
337
Remove Piston Pin Hole Snap Ring
337
Remove Piston
337
Inspect Crankshaft Thrust Clearance
337
Remove Crankshaft
338
Inspect Cylinder Block for Flatness
338
Inspect Cylinder Bore
339
Inspect Piston Diameter
339
Inspect Piston Clearance
339
Inspect Ring Groove Clearance
339
Inspect Piston Ring End Cap
340
Inspect Piston Pin Oil Clearance
340
Inspect Connecting Rod Sub-Assy
341
Inspect Connecting Rod Bolt
342
Inspect Crankshaft
342
Inspect Crankshaft Bearing Cap Set Bolt
343
Install Ring Pin
343
Inspect Crankshaft Oil Clearance
344
Install Tight Plug
346
Install Straight Pin
347
Install Piston
348
Install Piston Ring Set
348
Install Crankshaft Thrust Washer Upper
349
Install Crankshaft Bearing No.2
349
Install Crankshaft Bearing
349
Install Connecting Rod Bearing
350
Exhaust Pipe (2AZ-FE) Components
352
Exhaust Pipe (1MZ-FE) Components
355
Cooling System (2AZ-FE) On-Vehicle Inspection
358
Inspect Cooling System for Leaks
358
Check Engine Coolant Level at Reservoir
358
Check Engine Coolant Quality
358
Thermostat
359
Radiator Cap Sub-Assy
359
Cooling Fan System (2AZ-FE) On-Vehicle Inspection
361
Cooling Fan Relay
362
Add Coolant
363
Drain Coolant
363
Coolant (2AZ-FE) Replacement
363
Water Pump Assy (2AZ-FE) Replacement
365
Remove Water Pump Pulley
365
Remove Water Pump Assy
365
Install Water Pump Assy
365
Thermostat (2AZ-FE) Replacement
368
Radiator Assy (2AZ-FE) Removal & Installation and Disassembly & Reassembly
369
Cooling System (1MZ-FE) On-Vehicle Inspection
371
Cooling Fan System (1MZ-FE) On-Vehicle Inspection
374
Coolant (1MZ-FE) Replacement
377
Water Pump Assy (1MZ-FE) Replacement
378
Thermostat (1MZ-FE) Replacement
382
Radiator Assy (1MZ-FE) Removal & Installation and Disassembly & Reassembly
383
Lubrication System (2AZ-FE) On-Vehicle Inspection
385
Check Engine Oil Level
385
Check Engine Oil Quality
385
Remove Oil Pressure Switch Assy
385
Check Oil Pressure
386
Install Oil Pressure Switch
386
Start Engine and Check for Leaks
386
Oil Pump Assy (2AZ-FE) Replacement
387
Oil Filter Sub-Assy (2AZ-FE) Replacement
391
Lubrication System (1MZ-FE) On-Vehicle Inspection
392
Oil Pump Assy (1MZ-FE) Replacement
394
Oil Filter Sub-Assy (1MZ-FE) Replacement
406
Ignition System (2AZ-FE) On-Vehicle Inspection
407
Ignition System (1MZ-FE) On-Vehicle Inspection
409
Starting System (2AZ-FE) Inspection
411
Starter Assy (2AZ-FE) Replacement
413
Starter Assy (2AZ-FE) Components
414
Remove Repair Service Starter Kit
415
Remove Starter Commutator End Frame Assy
415
Remove Starter Armature Assy
416
Inspect Starter Armature Assy
416
Inspect Starter Commutator End Frame Assy
417
Inspect Repair Service Starter Kit
417
Install Starter Armature Assy
418
Install Starter Commutator End Frame Assy
418
Install Repair Service Starter Kit
419
Charging System (2AZ-FE) Precaution
420
Charging System (2AZ-FE) On-Vehicle Inspection
421
Check Battery Electrolyte Level
421
Check Battery Voltage
421
Check Battery Terminals, Fusible Link and Fuses
421
Inspect Charging Circuit Without Load
422
Generator Assy (2AZ-FE) Replacement
423
Generator Assy (2AZ-FE) Components
424
Remove Generator Pulley
425
Remove Generator Brush Holder Assy
426
Remove Alternator Rectifier End Frame
426
Remove Generator Rotor Assy
426
Inspect Generator Regulator Assy
426
Inspect Generator Rotor Assy
427
Inspect Generator Holder W/Rectifier
427
Inspect Brush
428
Install Generator Rotor Assy
428
Starting System (1MZ-FE) Inspection
431
Starter Assy (1MZ-FE) Replacement
433
Starter Assy (1MZ-FE) Components
434
Charging System (1MZ-FE) Precaution
440
Charging System (1MZ-FE) On-Vehicle Inspection
441
Generator Assy (1MZ-FE) Replacement
443
Generator Assy (1MZ-FE) Components
444
Front Suspension System
451
Front Suspension System Repair
452
Front Suspension Components
453
Front Wheel Alignment Adjustment
455
Front Shock Absorber with Coil Spring Overhaul
459
Front Suspension Arm Sub-Assy Lower No.1 LH Replacement
465
Lower Ball Joint Assy Front LH Replacement
467
Stabilizer Bar Front Replacement
469
Rear Suspension System Problem Symptoms Table
472
Rear Suspension System Components
473
Rear Wheel Alignment Adjustment
474
Shock Absorber Assy Rear LH Replacement
475
Shock Absorber Assy Rear LH Disposal
480
Rear Suspension Arm Assy No.1 LH Replacement
481
Rear Suspension Arm Assy No.2 LH Replacement
485
Stabilizer Bar Rear Replacement
488
Strut Rod Assy Rear Replacement
490
Wheel and Tire System Inspection
492
Drive Shaft, Propeller Shaft, Axle Problem Symptoms Table
493
Drive Shaft, Propeller Shaft, Axle On-Vehicle Inspection
494
Drive Shaft, Propeller Shaft, Axle Components
496
Front Drive Shaft Overhaul
500
Front Axle Hub Sub-Assy LH Replacement
513
Inspect and Adjust Front Wheel Alignment
518
Front Axle LH Hub Bolt Replacement
519
Rear Axle Hub & Bearing Assy LH Replacement
520
Check Abs Speed Sensor Signal(W/ Abs)
522
Rear Axle Carrier Sub-Assy LH Replacement
523
W/O VSC (BOSCH MADE)
525
W/O VSC (DENSO MADE)
525
Rear Axle LH Hub Bolt Replacement
526
Brake System
527
Brake Fluid Bleeding
530
Brake Pedal Support Assy Adjustment
532
Brake Pedal Support Assy Components
534
Brake Master Cylinder Sub-Assy Overhaul
538
Brake Booster Assy On-Vehicle Inspection
544
Brake Booster Assy On-Vehicle Components
545
Front Brake Components
550
Front Brake Overhaul
551
Rear Disc Brake Components
557
Rear Disc Brake Overhaul
559
Rear Drum Brake Components
564
Rear Drum Brake Overhaul
565
Brake Actuator Assy On-Vehicle Inspection
572
Brake Actuator Assy On-Vehicle Replacement
573
ABS & Traction Actuator Assy (W/ VSC) On-Vehicle Inspection
577
ABS & Traction Actuator Assy (W/ VSC) Replacement
578
Proportioning Valve Assy On-Vehicle Inspection
580
Proportioning Valve Assy On-Vehicle Replacement
581
Speed Sensor Front LH Replacement
582
Skid Control Sensor Replacement
584
Yawrate Sensor Replacement
587
Steering Sensor Replacement
588
Skid Control Ecu Assy Replacement
589
Parking Brake System Problem Symptoms Table
590
Parking Brake System Adjustment
591
Parking Brake Components
592
Parking Brake Lever Sub-Assy Replacement
596
Parking Brake Control Pedal Assy Overhaul
598
Parking Brake Cable Assy No.1 Replacement
601
Parking Brake Cable Assy No.3 Replacement
605
Parking Brake Cable No.4 Replacement
608
Parking Brake Assy Overhaul
610
Automatic Transaxle Fluid On-Vehicle Inspection
614
Automatic Transaxle Assy Precaution
615
Park/Neutral Position Switch Assy Replacement
616
Automatic Transaxle Assy (1MZ-FE) Replacement
621
Automatic Transaxle Assy (2AZ-FE) Replacement
627
Torque Converter Clutch and Drive Plate Inspection
633
Transmission Revolution Sensor Replacement
635
Speed Sensor Replacement
637
Transmission Wire Replacement
639
Transmission Valve Body Assy Replacement
642
Front Differential Oil Seal Replacement
646
Front Differential Oil Seal (U140E) Replacement
648
Shift Lock System On-Vehicle Inspection
650
Floor Shift Assy Overhaul
652
Floor Shift Parking Lock Cable Assy Replacement
661
Floor Shift Cable Transmission Control Shift Replacement
666
Manual Transaxle System Problem Symptoms Table
669
Manual Transaxle Oil On-Vehicle Inspection
670
Floor Shift Lever Assy Replacement
673
Floor Shift Cable Transmission Control Select Replacement
677
Manual Transaxle Assy Replacement
679
Manual Transaxle Assy (E351) Overhaul
683
Input Shaft Assy (E351) Overhaul
720
Output Shaft Assy (E351) Overhaul
731
Shift & Select Lever Shaft Assy (E351) Overhaul
742
Differential Case Assy (E351) Overhaul
749
Clutch System
754
Clutch Pedal Sub-Assy Replacement
755
Clutch Pedal Sub-Assy Adjustment
760
Clutch Master Cylinder Assy Overhaul
762
Clutch Release Cylinder Assy Overhaul
765
Clutch Unit Overhaul
767
Clutch Start Switch Assy On-Vehicle Inspection
771
Clutch Start Switch Assy Replacement
773
Steering System Precaution
774
Steering System Problem Symptoms Table
775
Steering Column Components
779
Steering Column Asy (TMC Made) Overhaul
782
Steering Column Assy (TMMK Made) Overhaul
795
Power Steering System Precaution
806
Power Steering System Problem Symptoms Table
807
Power Steering System On-Vehicle Inspection
808
Vane Pump Assy (2AZ-FE) Components
812
Vane Pump Assy (2AZ-FE) Overhaul
813
Vane Pump Assy (1MZ-FE) Components
820
Rack & Pinion Power Steering Gear Assy Components
831
Rack & Pinion Power Steering Gear Assy Overhaul
834
Air Conditioning System Precautions
854
Air Conditioning System Problem Symptoms Table
855
Air Conditioning System On-Vehicle Inspection
856
Air Conditioning System Inspection
860
Refrigerant On-Vehicle Inspection
865
Insufficient Cooling
867
Refrigerant Replacement
871
Refrigerant Line Components
872
V (Cooler Compressor to Crankshaft Pulley) Belt No.1 Replacement
874
Air Conditioner Control Assembly Components
876
Air Conditioner Control Assembly Overhaul
877
Air Conditioning Panel Sub-Assy Components
878
Air Conditioning Radiator Assy Components
880
Blower Assy Components
898
Blower Assy Overhaul
899
Cooler Compressor Assy (1MZ-FE) Components
902
Cooler Compressor Assy (1MZ-FE) Replacement
903
Cooler Compressor Assy (2AZ-FE) Components
909
Cooler Compressor Assy (2AZ-FE) Replacement
910
Cooler Condenser Assy On-Vehicle Inspection
916
Cooler Condenser Assy Components
917
Cooler Condenser Assy Overhaul
918
Supplemental Restraint System Precaution
922
Supplemental Restraint System On-Vehicle Inspection
930
Horn Button Assy Components
935
Horn Button Assy Replacement
936
Spiral Cable Sub-Assy Components
945
Spiral Cable Sub-Assy Replacement
946
Instr Pnl Pass L/Door Air Bag Assy Components
948
Curtain Shield Air Bag Assy LH Components
961
Curtain Shield Air Bag Assy LH Replacement
962
Front Seat Airbag Assy RH Disposal
971
Air Bag Sensor Assy Center Components
976
Air Bag Sensor Assy Center Replacement
977
Air Bag Front RH Sensor Components
978
Air Bag Front RH Sensor Replacement
979
Air Bag Sensor Front LH Components
980
Air Bag Sensor Front LH Replacement
981
Side Air Bag Sensor Assy RH Components
982
Side Air Bag Sensor Assy RH Replacement
983
Air Bag Sensor Rear LH Components
985
Air Bag Sensor Rear LH Replacement
986
Seat Position Air Bag Sensor Components
987
Seat Position Air Bag Sensor Replacement
988
Seat Belt Warning System Location
989
Front Seat Belt Components
994
Front Seat Belt Replacement
995
Rear Seat Belt Components
1001
Rear Seat Belt (TMC Made) Replacement
1002
Rear Seat Belt (Tmmk Made) Replacement
1005
Lighting System Precaution
1008
Lighting System On-Vehicle Inspection
1009
LH Headlamp Assy Components
1014
LH Headlamp Assy Replacement
1015
LH Headlamp Assy Adjustment
1017
Fog Lamp Assy LH Replacement
1019
Fog Lamp Assy LH Adjustment
1020
Rear Combination Lamp Assy LH Replacement
1021
License Plate Lamp Assy Replacement
1022
Center Stop Lamp Assy Replacement
1023
Headlamp Dimmer Switch Assy Replacement
1024
Wiper and Washer System Precaution
1025
Wiper and Washer System Problem Symptoms Table
1026
Windshield Wiper Motor Assy Replacement
1030
Wiper Rubber LH Replacement
1033
Windshield Wiper Switch Assy Replacement
1034
Audio & Visual System Components
1035
Radio Receiver Assy Replacement
1037
Navigation Receiver Assy Replacement
1038
Front No.1 Speaker Assy Replacement
1039
Front No.2 Speaker Assy Replacement
1040
Rear Speaker Assy Replacement
1041
Stereo Component Amplifier Assy Replacement
1045
Antenna Cord Sub-Assy Replacement
1046
Navigation Antenna Assy Replacement
1053
Cigarette Lighter Assy Replacement
1057
Power Point Socket Assy Replacement
1058
Power Point Socket Assy RR Replacement
1059
Window Glass (Antenna Wire) Repair
1060
Power Source Location
1061
Horn System Location
1065
Horn System Problem Symptoms Table
1066
Horn System Inspection
1067
Low Pitched Horn Assy Replacement
1068
Garage Door Opener System Registration
1069
Garage Door Opener System Inspection
1071
Power Window Control System On-Vehicle Inspection
1072
Windshield Glass Components
1077
Windshield Glass Replacement
1078
Back Window Glass Components
1083
Back Window Glass Replacement
1084
Window Defogger System Location
1088
Window Defogger System Problem Symptoms Table
1089
Window Defogger System Inspection
1090
Power Mirror Control System Location
1091
Inner Rear View Mirror Assy Replacement
1097
Inner Rear View Mirror Assy Pre-Check
1098
Outer Rear View Mirror Sub-Assy LH Replacement
1101
Combination Meter Problem Symptoms Table
1102
Indicator Lights
1102
Combination Meter On-Vehicle Inspection
1104
Instrument Panel/Meter Components
1108
Instrument Panel Safety Pad Sub-Assy Precaution
1112
Instrument Panel Safety Pad Sub-Assy Replacement
1113
Combination Meter Assy Overhaul
1126
Clock Assy Replacement
1127
Front Power Seat Control System Location
1128
Front Seat (Power Seat for TMC Made) Components
1133
Front Seat (Power Seat for TMC Made) Overhaul
1134
Front Seat (Power Seat for TMMK Made) Components
1140
Front Seat (Power Seat for TMMK Made) Overhaul
1141
Front Seat (Manual Seat for TMC Made) Components
1146
Front Seat (Manual Seat for TMC Made) Overhaul
1147
Front Seat (Manual Seat for TMMK Made) Components
1153
Front Seat (Manual Seat for TMMK Made) Overhaul
1154
Rear Seat (TMC Made) Components
1160
Rear Seat (TMC Made) Overhaul
1161
Rear Seat (TMMK Made) Component S
1164
Rear Seat (TMMK Made) Overhaul
1165
Seat Heater System Location
1168
Power Door Lock Control System On-Vehicle Inspection
1172
Wireless Door Lock Control System On-Vehicle Inspection
1177
Door Control Transmitter Replacement
1179
Key Unlock Warning System Location
1182
Key Unlock Warning System On-Vehicle Inspection
1183
Theft Deterrent System On-Vehicle Inspection
1187
Engine Immobiliser System Registration
1195
Sliding Roof System Location
1203
Sliding Roof System On-Vehicle Inspection
1204
Sliding Roof (TMMK Made) Components
1210
Sliding Roof (TMMK Made) Replacement
1211
Sliding Roof (TMC Made) Components
1215
Sliding Roof (TMC Made) Replacement
1216
Hood Support Rod Replacement
1221
Hood Support Rod Disposal
1222
Front Door Components
1223
Front Door Adjustment
1224
Front Door Overhaul
1226
Rear Door Components
1231
Rear Door Adjustment
1232
Rear Door Overhaul
1234
Luggage Compartment Door Adjustment
1238
Luggage Door Hinge Torsion Bar Replacement
1240
Front Bumper Components
1242
Front Bumper Replacement
1243
Rear Bumper Components
1245
Rear Bumper Replacement
1246
Rear Spoiler Sub-Assy Replacement
1247
Name Plate Replacement
1249
Front Door Belt Moulding Assy LH Replacement
1250
Roof Drip Side Finish Moulding Center LH Replacement
1252
Out Side Moulding Replacement
1254
Rocker Panel Moulding LH Replacement
1256
Luggage Compartment Door Garnish Sub-Assy Outside Replacement
1257
Front Floor Footrest Replacement
1258
Roof Headlining Assy Components
1259
Ignition or Starter Switch Assy Replacement
1268
Ignition or Starter Switch Assy Inspection
1269
Cruise Control Main Switch Assy Replacement
1270
Clutch Switch Assy Replacement
1273
Steering Pad Switch Replacement
1274
Outside Vehicle General Maintenance
1276
Inside Vehicle General Maintenance
1277
Under Hood General Maintenance
1279
Engine On-Vehicle Inspection
1280
Brake On-Vehicle Inspection
1281
Chassis On-Vehicle Inspection
1282
Body On-Vehicle Inspection
1283
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Toyota 2002 Camry and is the answer not in the manual?
Ask a question
Toyota 2002 Camry Specifications
General
Brand
Toyota
Model
2002 Camry
Category
Automobile
Language
English
Related product manuals
Toyota CAMRY-2002
506 pages
Toyota 2002 Corolla
260 pages
Toyota Celica 2002
231 pages
Toyota Corolla 2002
253 pages
Toyota 2002 Land Cruiser
414 pages
Toyota LAND CRUISER 2002
123 pages
Toyota 2002 Rav4
274 pages
Toyota 2002 Tundra
298 pages
Toyota Tacoma 2002
299 pages
Toyota 2002 Avalon
311 pages
Toyota AVENSIS 2002
775 pages
Toyota 2002 4runner
308 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
