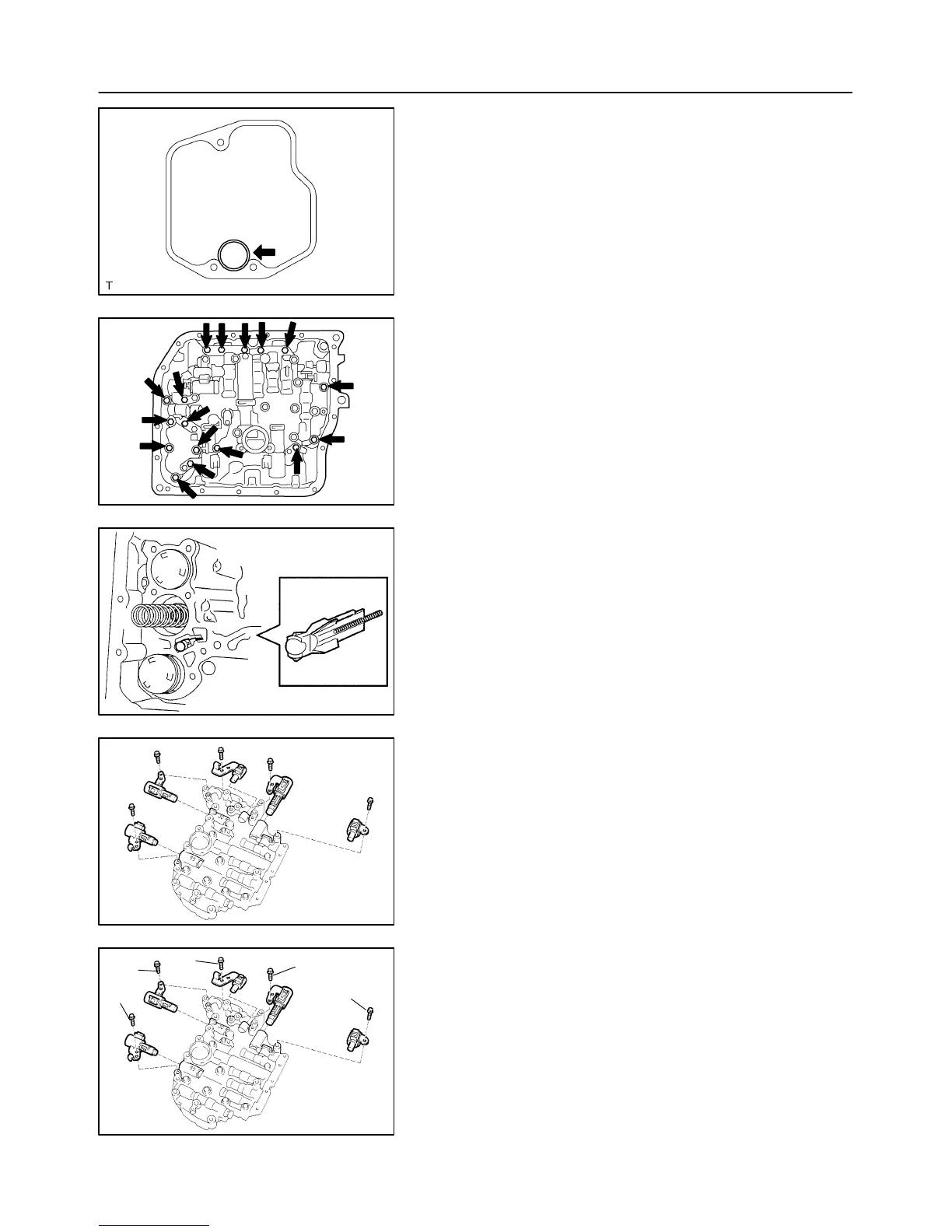

(b) Remove the O–ring from the oil strainer.
6. REMOVE TRANSMISSION VALVE BODY ASSY
(a) Support the valve body assy and remove the 17 bolts and
the valve body assy.
NOTICE:
Be careful not to drop the check valve body, spring and ac-
cumulator piston.
(b) Remove the check ball body and spring.
(c) Remove the 5 bolts and 5 shift solenoid valves.
7. INSTALL TRANSMISSION VALVE BODY ASSY
(a) Install the 5 shift solenoid valves with the 5 bolts.
Torque:
Bolt A: 6.6 N·m (67 kgf·cm, 58 in.⋅lbf)
Bolt B: 10.8 N·m (110 kgf·cm, 8 ft ·lbf)
Bolt length:
Bolt A: 12 mm (0.47 in.)
Bolt B: 45 mm (1.77 in.)
