C69637
C69636
–
MANUAL
TRANSMISSION/TRANSAXLE
OUTPUT SHAFT ASSY
(E351)
41–73
2203
Author:
Date:
2002 CAMRY REP
AIR MANUAL (RM881U)

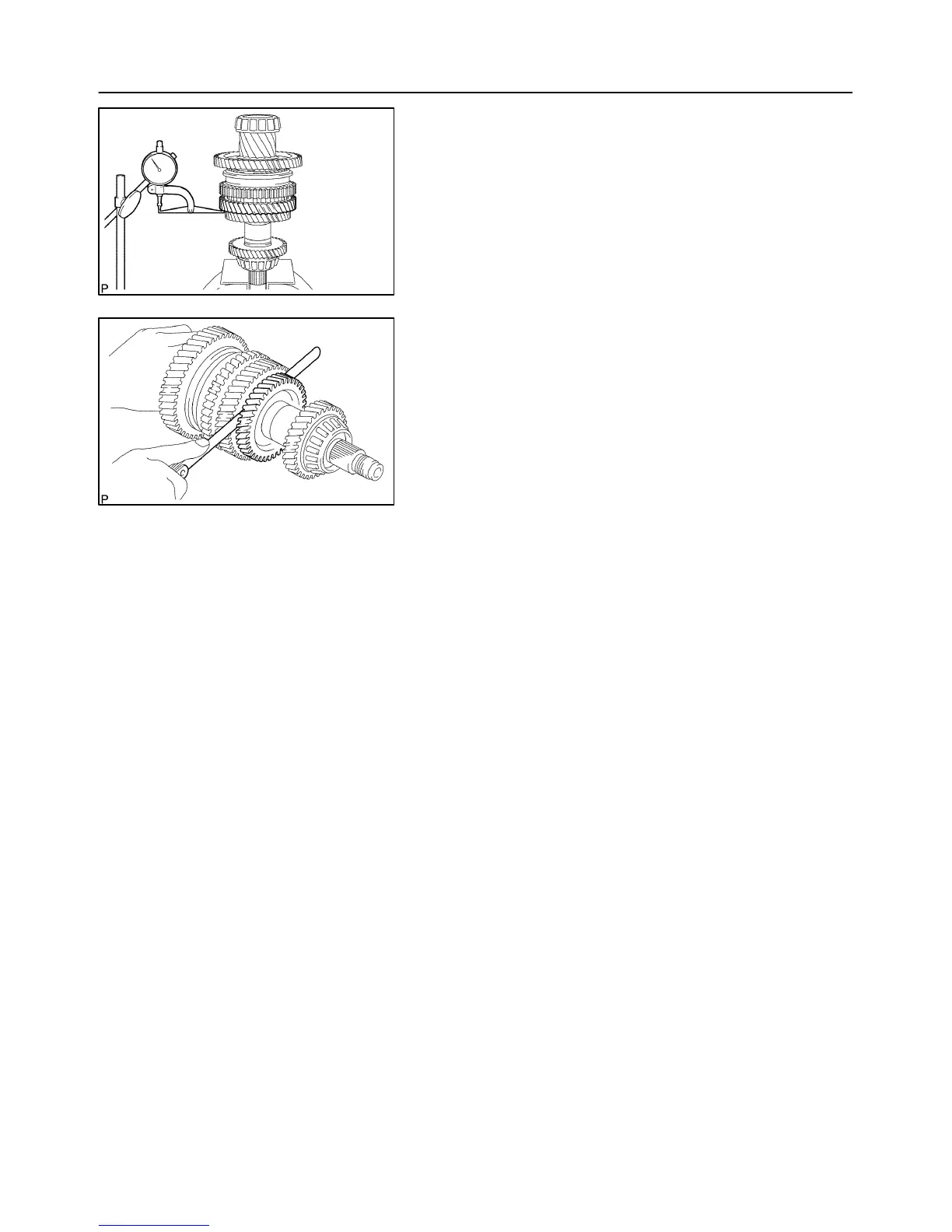

43.
INSPECT
2ND GEAR THRUST CLEARANCE
(a)
Using a dial indicator
, measure the 2nd gear thrust clear-
ance.
Standard
clearance:
0.10 – 0.35 mm (0.0039 – 0.0138 in.)
44.
INSPECT 1ST GEAR THRUST CLEARANCE
(a)
Using
a feeler gauge, measure the 1st gear thrust clear-
ance.
Standard clearance:
0.25 – 0.40 mm (0.0098 in. – 0.0157 in.)
