C69531
C69798
C69534
C69535
–MANUAL TRANSMISSION/TRANSAXLE SHIFT & SELECT LEVER SHAFT ASSY (E351)
41–75
2205Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

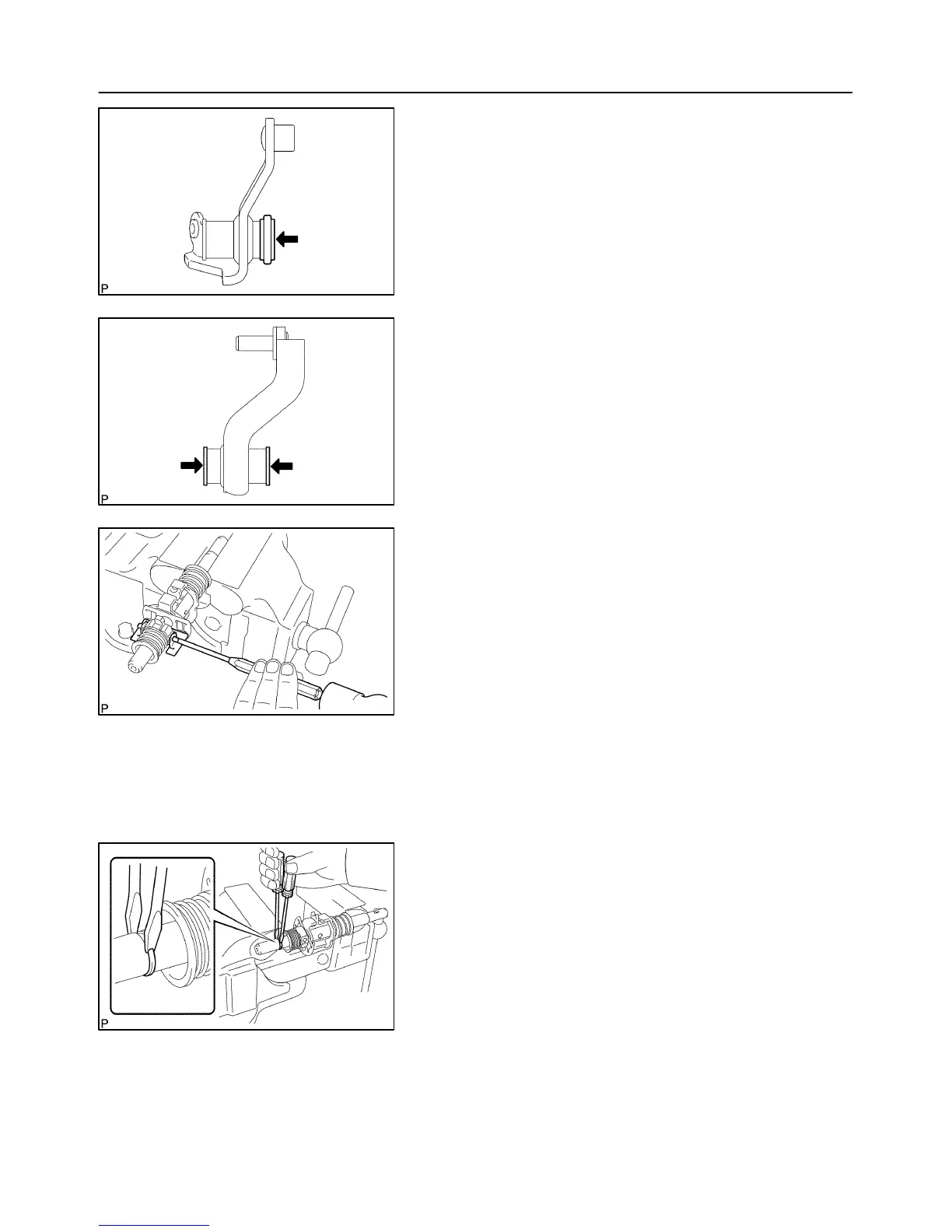

4. REMOVE SELECTING BELLCRANK DUST COVER
NO.2
(a) Remove the selecting bell crank dust cover No.2 from the
selecting bellcrank No.2.
5. REMOVE SELECTING BELLCRANK NO.2 BUSH
(a) Remove the selecting bellcrank bush from the selecting
bellcrank No.2.
6. REMOVE SHIFT LEVER INNER NO.2
(a) Hold the shift & select lever on the vise through the soft
jaw.
NOTICE:
Do not damage the shift & select lever shaft.
(b) Using a pin punch (φ 5 mm), remove the shift & select le-
ver inner slotted pin and oil baffle.
NOTICE:
Do not damage the shift & select lever shaft.
(c) Apply the force to the select return spring No.1 and select
return spring No.2 then hold it on the vise through the soft
jaw.
(d) Using 2 screwdrivers and a hammer, remove the select
seat snap ring from the shift & select lever shaft.
NOTICE:
Do not damage the shift & select lever shaft.
To Next Page
