5000P–02
F08857

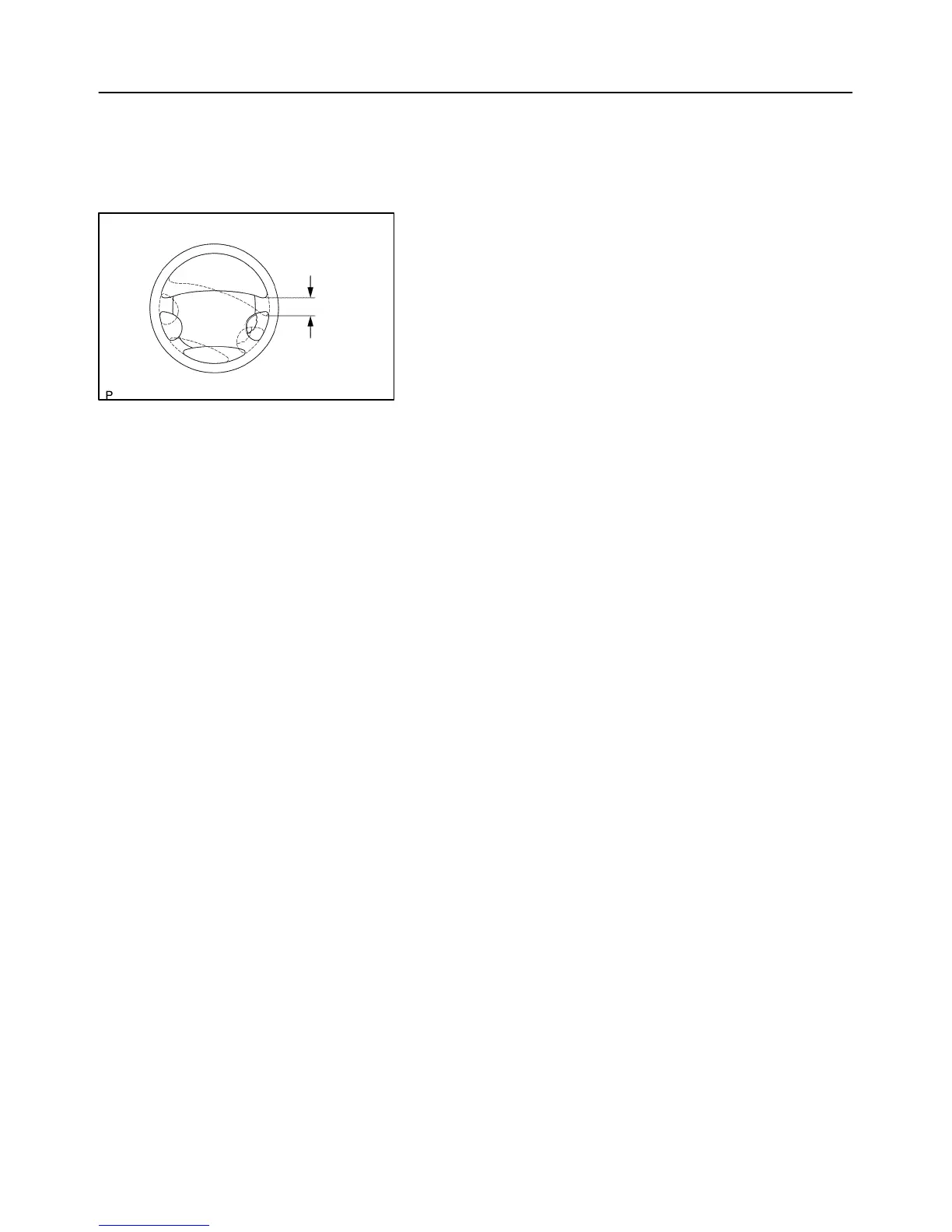

Maximum
Freeplay
30 mm (1.18 in.)
–
STEERING
COLUMN
STEERING SYSTEM
50–3
2238
Author:
Date:
2002 CAMRY REP
AIR MANUAL (RM881U)
ON–VEHICLE
INSPECTION
1.
CHECK STEERING WHEEL FREEPLA
Y
(a)
Stop the vehicle and face the tires straight ahead.
(b)
Rock
the steering wheel gently up and down by your
hand,
check the steering wheel freeplay
.
Maximum freeplay: 30 mm (1.18 in.)
775
777
