C92310
C90603
SSTMatchmarks
C92273
C90585
–STEERING COLUMN STEERING COLUMN ASSY (TMMK MADE)
50–23
2258Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

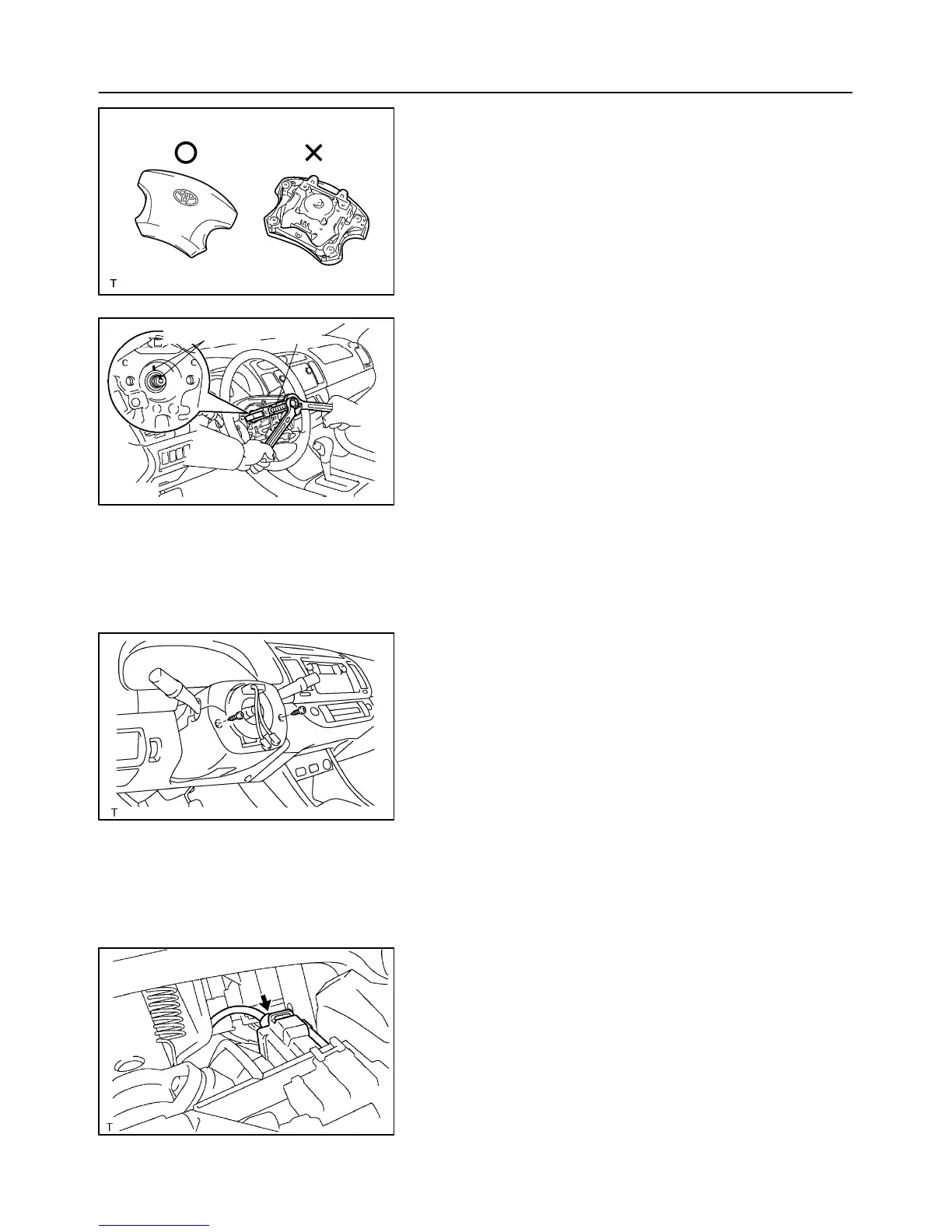

CAUTION:
When storing the horn button assy, keep the upper
surface of the pad facing upward.
Never disassemble the horn button assy.
9. REMOVE STEERING WHEEL ASSY
SST 09950–50013 (09951–05010, 09952–05010,
09953–05020, 09954–05021)
10. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY
(See page 71–12)
11. REMOVE STEERING COLUMN COVER LWR
(a) Remove the 2 screws and steering column cover upper.
12. REMOVE STEERING COLUMN COVER UPR
13. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE
ASSY
(a) Using a screwdriver, disconnect the floor shift parking lock
cable from the upper bracket.
To Next Page
