–POWER STEERING RACK & PINION POWER STEERING GEAR ASSY
2297Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

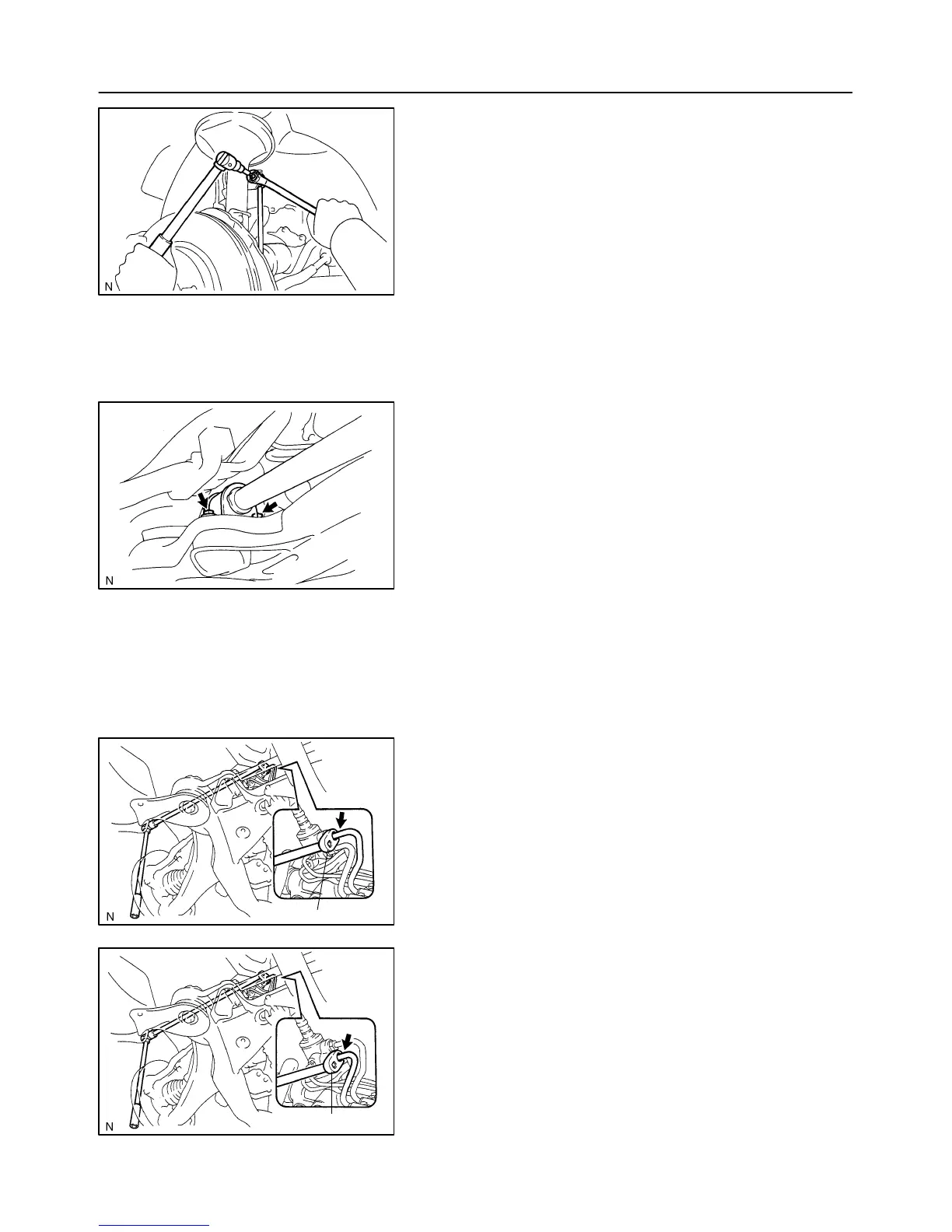

10. DISCONNECT FRONT STABILIZER LINK ASSY LH
(a) Remove the nut and disconnect the front stabilizer link
assy from the absorber.
HINT:
If the ball joint turns together with the nut, use a hexagon
wrench (6 mm) to hold the stud.
11. DISCONNECT FRONT STABILIZER LINK ASSY RH
HINT:
Remove the RH side by the same procedures with LH side.
12. REMOVE FRONT STABILIZER BRACKET NO.1 LH
(a) Remove the 2 bolts and disconnect the front stabilizer
bracket No.1 LH.
13. REMOVE FRONT STABILIZER BRACKET NO.1 RH
HINT:
Remove the RH side by the same procedures with LH side.
14. DISCONNECT PRESSURE FEED TUBE ASSY
(a) Using SST, disconnect the return tube assy from the rack
& pinion power steering gear assy.
SST 09023–12700
(b) Using SST, disconnect the pressure feed tube assy from
the rack & pinion power steering gear assy.
SST 09023–12700
