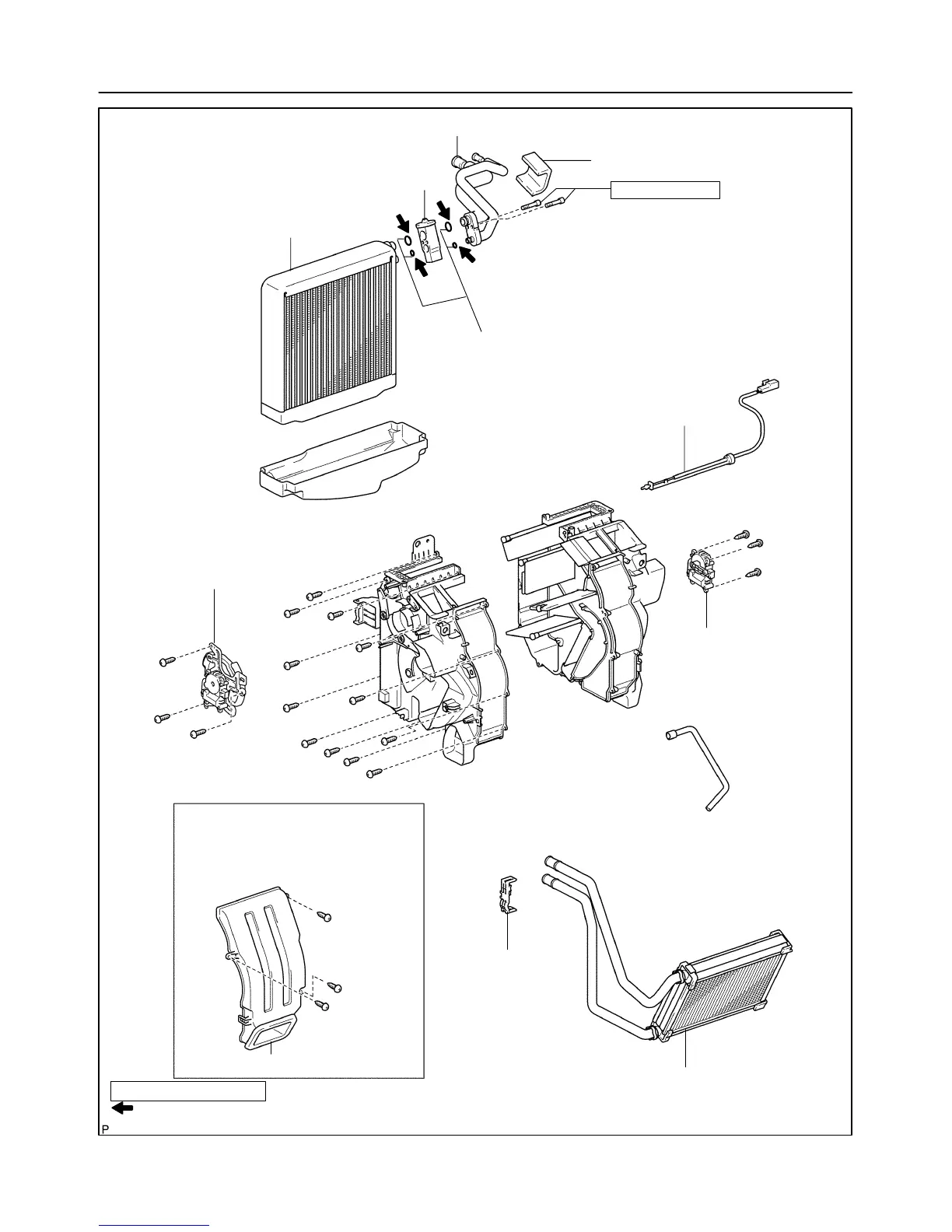

I31557

Compressor Oil ND–OIL 8 or equivalent

 Non–reusable part

N⋅m (kgf⋅cm, ft⋅lbf)

: Specified torque

3.5 (35, 30 in.⋅lbf)

Heater Radiator Unit Sub–assy

Piping Clamp

Air Duct Sub–assy

Auto A/C Model:

Mode Damper Servo Sub–assy

Air Mix Damper Servo

Sub–assy

Cooler Thermistor No. 1

Cooler Evaporator Sub–assy No. 1

Packing

Air Conditioning Tube Assy

Cooler Expansion Valve

O–Ring

55–28

–HEATER & AIR CONDITIONER AIR CONDITIONING RADIATOR ASSY
