–HEATER & AIR CONDITIONER AIR CONDITIONING RADIATOR ASSY
2359Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
40. INSTALL INSTRUMENT PANEL SAFETY PAD SUB–ASSY
(See page 71–12)
41. INSTALL COOLER REFRIGERANT SUCTION HOSE
NO.1
(a) Lubricate new O–ring with compressor oil and install them
to the hose.
Compressor oil: ND–OIL 8 or equivalent
(b) Install the cooler refrigerant suction hose No.1 and piping
clamp.
HINT:

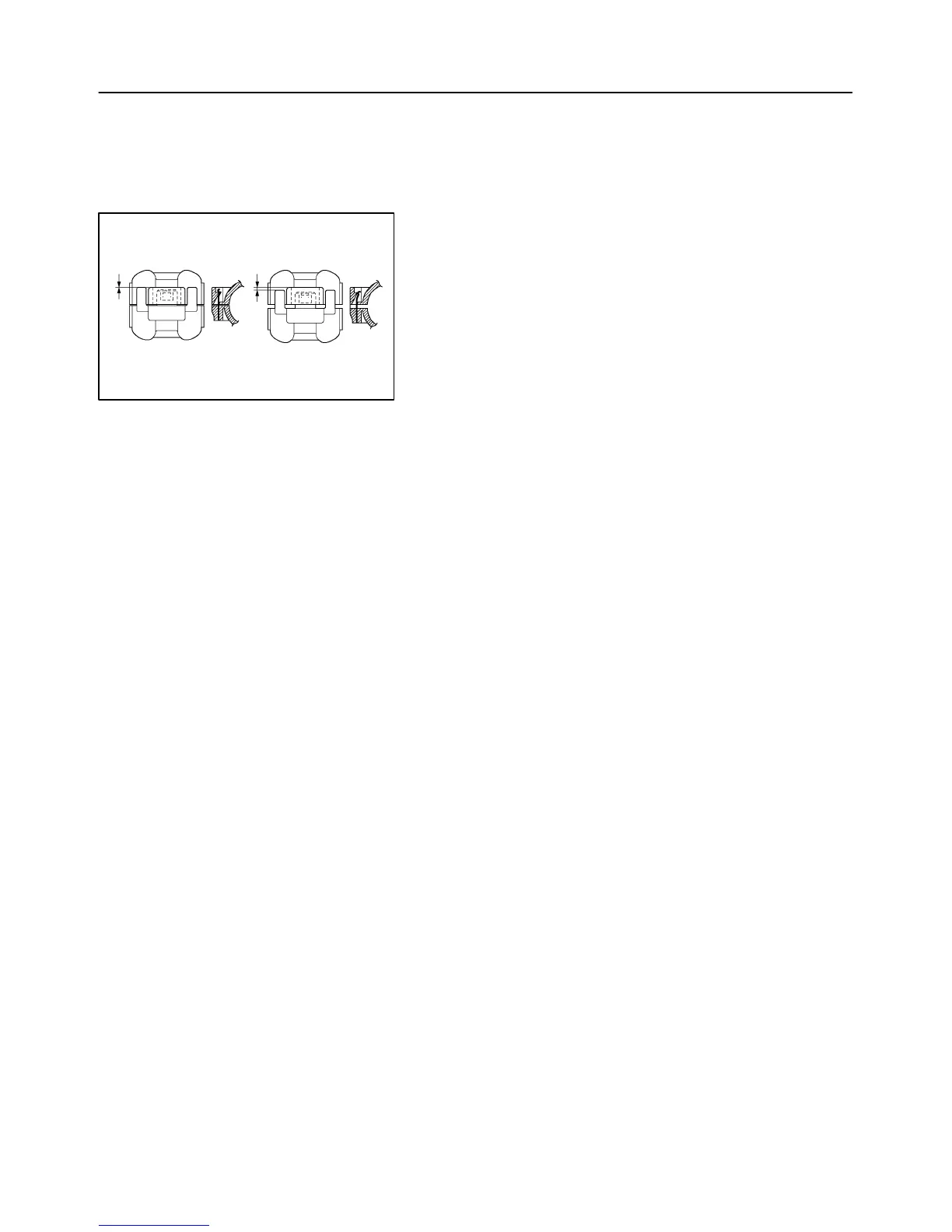

After connection, check the fitting for claw of the piping clamp.
42. INSTALL COOLER REFRIGERANT LIQUID PIPE A
HINT:
Install in the same way as the cooler refrigerant suction hose No. 1.
43. ADD COOLANT
1MZ–FE: (See page 16–20)
2AZ–FE: (See page 16–6)
44. CHARGE REFRIGERANT (See page 55–18)
SST 07110–58060 (07117–58060, 07117–58070, 07117–58080, 07117–58090, 07117–78050,
07117–88060, 07117–88070, 07117–88080)
Specified amount: 550 50 g (19.37 1.76 oz.)
45. WARM UP ENGINE
46. CHECK ENGINE COOLANT LEAK
1MZ–FE: (See page 16–14)
2AZ–FE: (See page 16–1)
47. INSPECT LEAKAGE OF REFRIGERANT (See page 55–18)
