–HEATER & AIR CONDITIONER COOLER COMPRESSOR ASSY (1MZ–FE)
55–55
2370Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

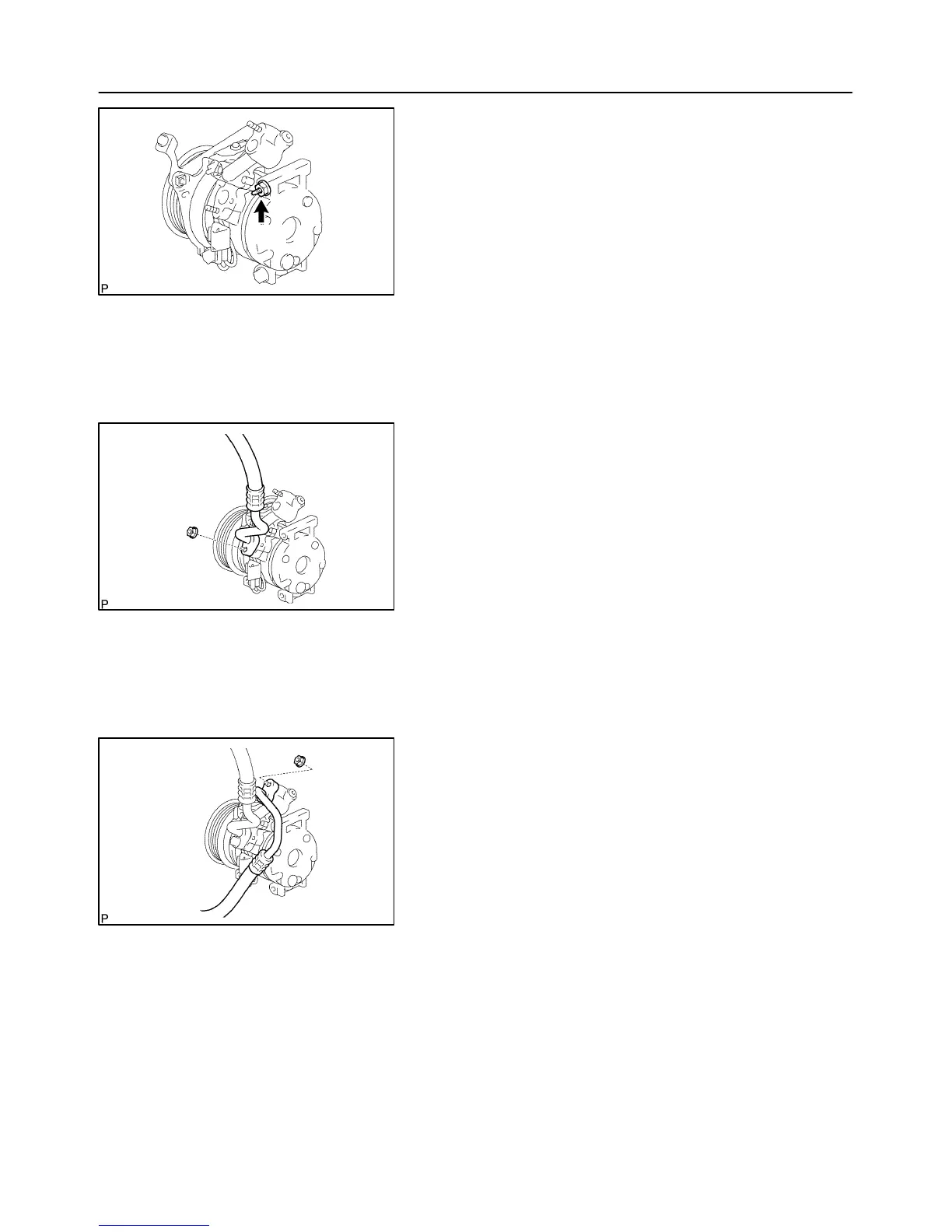

(c) Tighten the compressor and magnetic clutch with the bolt
(F).
Torque: 25 N⋅m (250 kgf⋅cm, 18 ft⋅lbf)
(d) connect the connector.
16. INSTALL COOLER REFRIGERANT SUCTION HOSE
NO.1
(a) Remove the attached vinyl tape from the hose.
(b) Sufficiently apply compressor oil to the new O–ring and
fit surface of the compressor and magnetic clutch.
Compressor oil: ND–OIL 8 or equivalent
(c) Install a O–ring to the cooler refrigerant suction hose
No. 1.
(d) Install the cooler refrigerant suction hose No. 1 to the
compressor and magnetic clutch with the nut.
Torque: 9.8 N⋅m (100 kgf⋅cm,87 in.⋅lbf)
17. INSTALL COOLER REFRIGERANT DISCHARGE
HOSE NO.1
(a) Remove the attached vinyl tape from the hose.
(b) Sufficiently apply compressor oil to the new O–ring and
fit surface of the compressor and magnetic clutch.
Compressor oil: ND–OIL 8 or equivalent
(c) Install a O–ring to the cooler refrigerant discharge hose
No.1.
(d) Install the cooler refrigerant discharge hose No. 1 to the
compressor and magnetic clutch with the nut.
Torque: 9.8 N⋅m (100 kgf⋅cm,87 in.⋅lbf)
18. INSTALL GENERATOR ASSY
(See page 19–33)
19. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
(See page 55–21)
20. CHARGE REFRIGERANT (See page 55–18)
SST 07110–58060 (07117–58060, 07117–58070, 07117–58080, 07117–58090, 07117–78050,
07117–88060, 07117–88070, 07117–88080)
21. WARM UP ENGINE
22. INSPECT LEAKAGE OF REFRIGERANT (See page 55–18)
