I31550
I31551
55–62
–HEATER & AIR CONDITIONER COOLER COMPRESSOR ASSY (2AZ–FE)
2377Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)

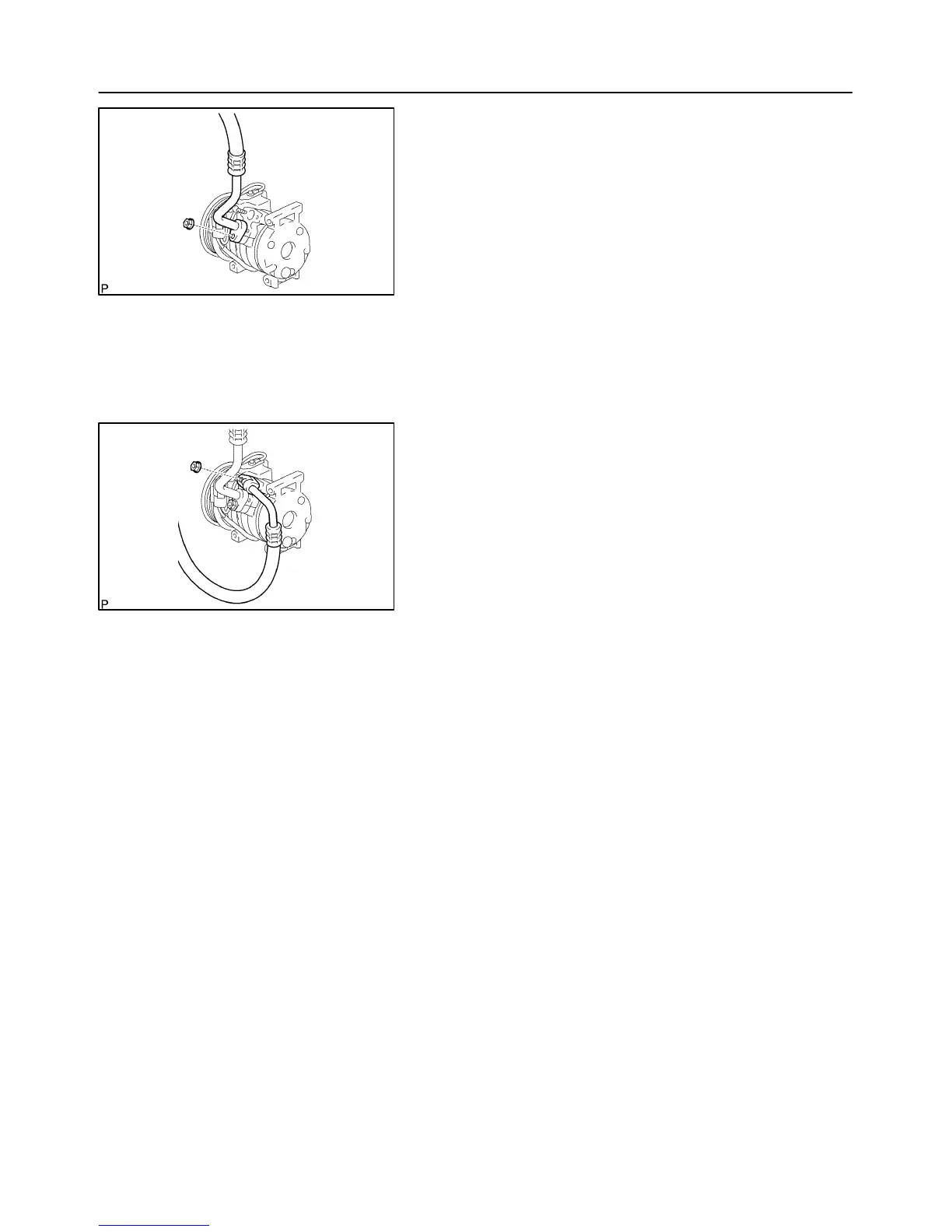

(d) Install the cooler refrigerant suction hose No. 1 to the
compressor and magnetic clutch with the nut .
Torque: 9.8 N⋅m (100 kgf⋅cm, 87 in.⋅lbf)
15. INSTALL COOLER REFRIGERANT DISCHARGE
HOSE NO.1
(a) Remove the attached vinyl tape from the hose.
(b) Sufficiently apply compressor oil to the new O–ring and
fit surface of the compressor and magnetic clutch.
Compressor oil: ND–OIL 8 or equivalent
(c) Install a O–ring to the cooler refrigerant discharge hose
No. 1.
(d) Install the cooler refrigerant discharge hose No. 1 to the
compressor and magnetic clutch with the nut.
Torque: 9.8 N⋅m (100 kgf⋅cm, 87 in.⋅lbf)
16. INSTALL GENERATOR ASSY
(See page 19–13)
17. INSTALL FAN AND GENERATOR V BELT
(See page 14–5)
SST 09249–63010
18. CHARGE REFRIGERANT (See page 55–18)
SST 07110–58060 (07117–58060, 07117–58070, 07117–58080, 07117–58090, 07117–78050,
07117–88060, 07117–88070, 07117–88080)
Specified amount: 550 50 g (19.37 1.76 oz.)
19. WARM UP ENGINE
20. INSPECT LEAKAGE OF REFRIGERANT (See page 55–18)
To Next Page
