H02768
Outer
Outer
Connection is completed
C92133
H41649
PROPERTY CLASS
Deep Recess Bolt
6T 8T
60–8
–SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
2391Author: Date:

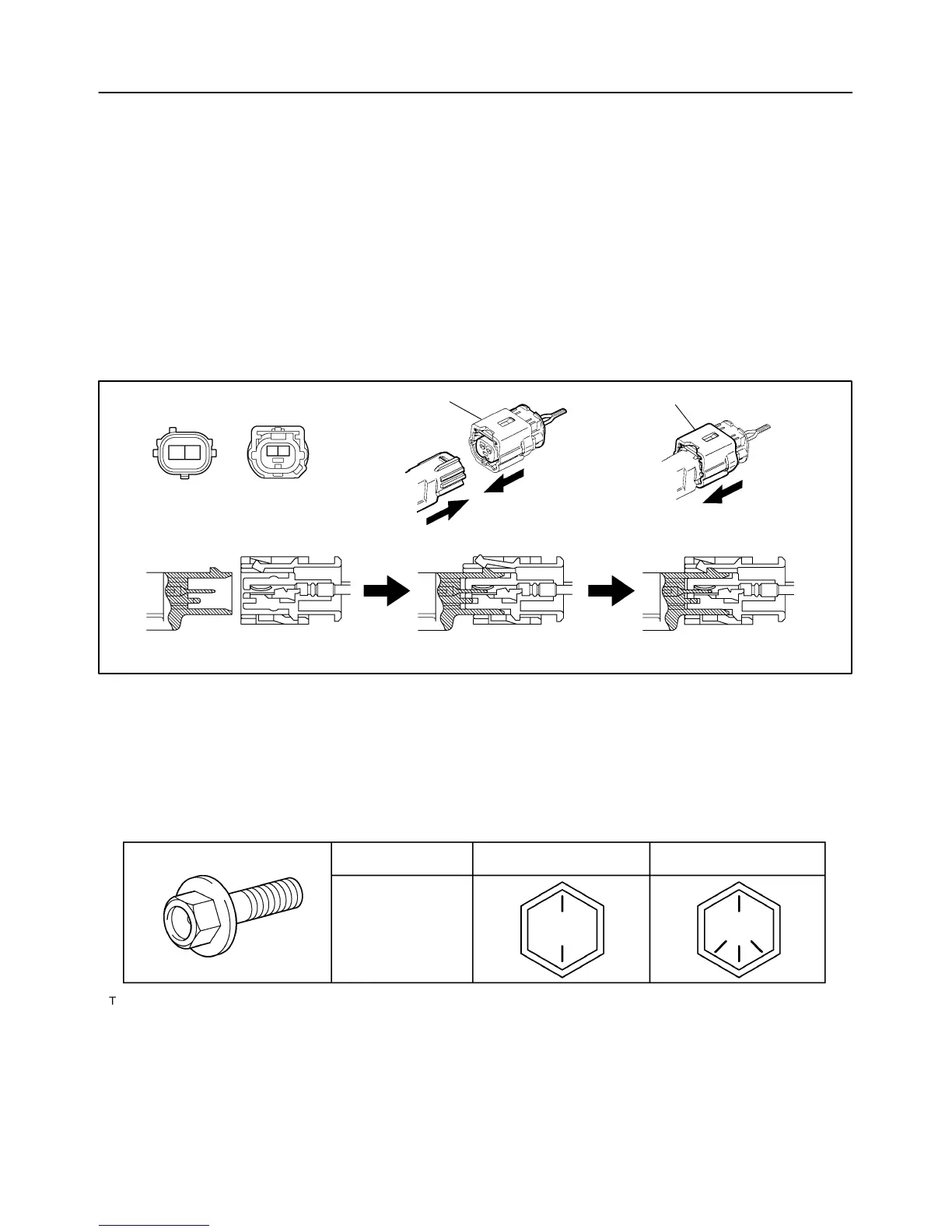

5. CONNECTION OF CONNECTORS FOR AIRBAG FRONT SENSOR, SIDE AIRBAG SENSOR AND
AIRBAG SENSOR REAR
(a) Align the male connector (on the side of sensor) and female connector in the same direction as shown
in the illustration and fit in them without rubbing.
(b) As they are fitted in, the outer slides rearward. Press it until the outer returns to its original position
again.
If fitting stops half way, connectors will separate.
(c) Be sure to insert until they are locked. After fitting in, pull them slightly to check that they are locked.
(When locked, make sure that the outer returns to its original position and sound at the time of fitting
in can be heard.)
HINT:
 Do not fit in while holding the outer.
 When fitting in, the outer slides. Do not touch it.
6. NOTICE REGARDING AIRBAG SENSOR INSTALLATION BOLT
(a) As the tightening torque is different depending on the property class of the airbag sensor installation
bolt, choose a bolt referring to the following illustration and tighten with the specified tightening torque
written in the repair manual.
To Next Page
