H40013
Inner Diam.
Tires
(3 or More)
Width
H40014
10 m (33 ft) or more
SST
Battery
H40177
–SUPPLEMENTAL RESTRAINT SYSTEM HORN BUTTON ASSY
60–23
2406Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
If a cardboard box smaller than the specified size is
used, the cardboard box will be broken by the shock
from the airbag deployment.

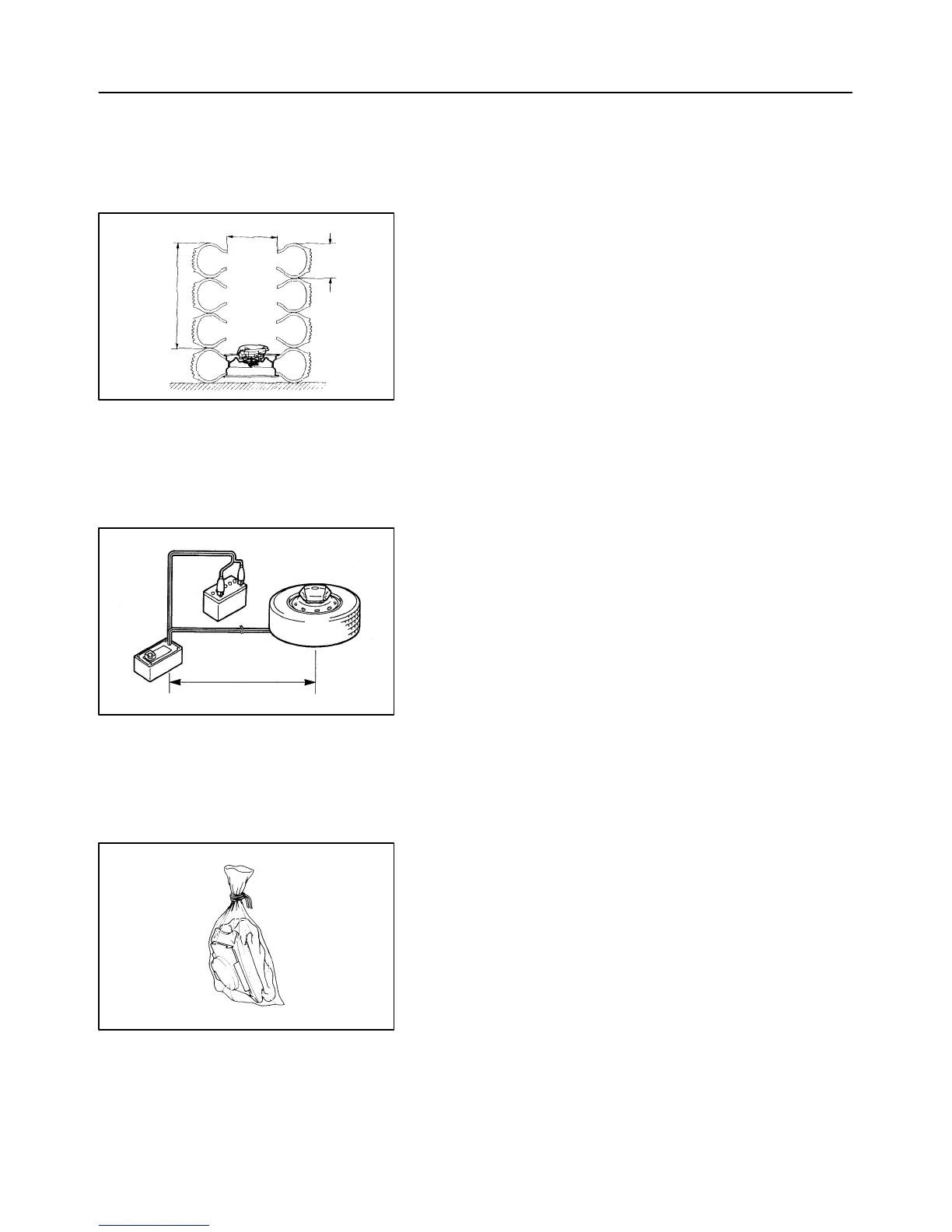

Covering method using tires:
Place at least 3 tires without disc wheel on top of the
disc wheel with tire to which the horn button assy is
tied.
Tire size: Must exceed the following dimensions–
Width: 185 mm (7.28 in.)
Inner diameter: 360 mm (14.17 in.)
CAUTION:
Do not use tires with disc wheels.
NOTICE:
The tires may be marked by the airbag deployment, so use
the redundant tires.
(f) Deploy the airbag.
(1) Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(–) terminal.
(2) Check that no one is within 10 m (33 ft) area around
the disc wheel which the horn button assy is tied to.
(3) Press the SST activation switch and deploy the air-
bag.
HINT:
The airbag deploys simultaneously as the LED of the SST ac-
tivation switch lights up.
(g) Dispose of the horn button assy (with airbag).
CAUTION:
The horn button assy is very hot when the airbag is
deployed, so leave it alone for at least 30 minutes af-
ter deployment.
Use gloves and safety glasses when handling a horn
button assy with the deployed airbag.
Always wash your hands with water after completing
the operation.
Do not apply water, etc. to a horn button assy with the
deployed airbag.
(1) Remove the horn button assy from the disc wheel.
(2) Place the horn button assy in a vinyl bag, tie the end
tightly and dispose of it in the same way as other
general parts disposal.
To Next Page
