–SEAT BELT FRONT SEAT BELT
2458Author: Date:
2002 CAMRY REPAIR MANUAL (RM881U)
12. INSTALL FRONT SEAT INNER BELT ASSY RH
(a) TMC made:
Install the front seat inner belt assembly with the bolt.
Torque: 42 N⋅m (420 kgf⋅cm, 31 ft⋅lbf)
(b) TMMK made:
Install the front seat inner belt assembly with the nut.
Torque: 42 N⋅m (420 kgf⋅cm, 31 ft⋅lbf)
13. INSTALL FRONT SEAT OUTER BELT ASSY RH

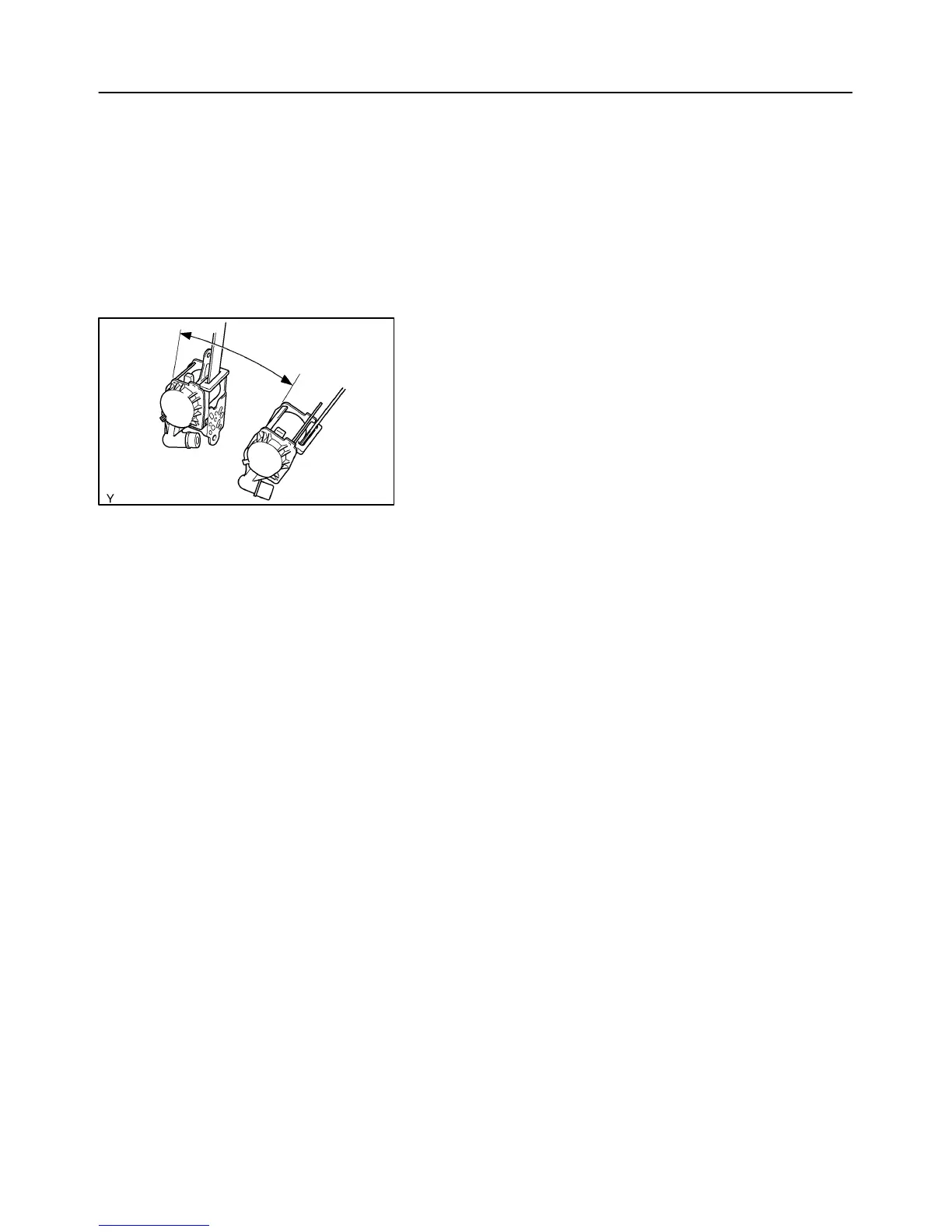

(a) Check the degree of tilt when beginning to lock the ELR.
(1) Check the belt will not lock within 15 degrees of tilt
in all the direction but the belt will lock over 45 de-
grees of tilt when moving the installed retractor
gently.
NOTICE:
Do not disassemble the retractor.
(b) Install the retractor with the 2 bolts.
Torque:
7.5 N⋅m (80 kgf⋅cm, 66 in.⋅lbf) (Upper part of retractor)
42 N⋅m (420 kgf⋅cm, 31 ft⋅lbf) (Lower part of retractor)
(c) Install the shoulder anchor with the nut.
Torque: 42 N⋅m (420 kgf⋅cm, 31 ft⋅lbf)
(d) Install the floor anchor with the bolt.
Torque: 42 N⋅m (420 kgf⋅cm, 31 ft⋅lbf)
