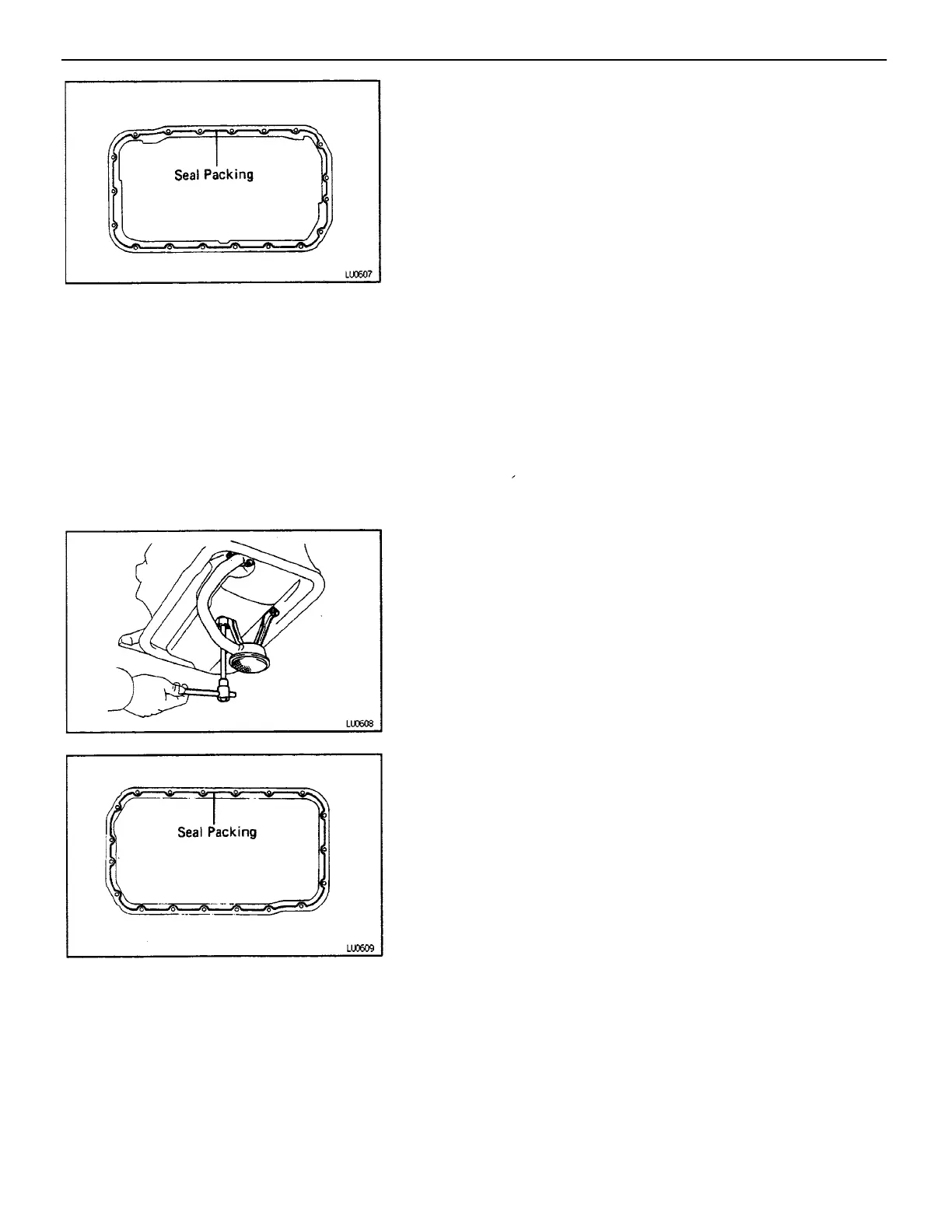

5. INSTALL OIL PAN
(a) Apply seal packing to the oil pan as shown in the
illustration.
Seal packing:
Part No. 08826–00080 or equivalent
• Install a nozzle that has been cut to a 3 – 4 mm
(0.12 – 0.16 in.) opening.
HINT: Avoid applying an excess amount to the sur–
face.
• If parts are not assembled within 5 minutes of
applying the seal packing, the effectiveness of
the seal packing is lost and the seal packing must
be removed and reapplied.
• Immediately remove the nozzle from the tube and
reinstall the cap after using the seal packing.
(b) Install the oil pan with the two nuts and seventeen
bolts.
Torque: 5.9 N–m (60 kgf–cm, 52 in.–M)
3. INSTALL OIL PAN BAFFLE PLATE
Apply seal packing to the baffle plate as shown in the
illustration.
Seal packing:
Part No. 08826–00080 or equivalent
• Install a nozzle that has been cut to a 3 – 4 m m
A 12 – 0.16 in.) opening.
HINT: Avoid applying an excess amount to the sur–
face.
• If parts are not assembled within 5 minutes of
applying the seal packing, the effectiveness of
the seal packing is lost and the seal packing must
be removed and reapplied.
• Immediately remove the nozzle from the tube and
reinstall the cap after using the seal packing.
4. INSTALL OIL STRAINER
Place a new gasket and install the oil strainer with the
two nuts and two bolts.
Torque: 6.9 N–m (70 kgf–cm, 61 in.–Ibf)
–ENGINE LUBRICATION SYSTEM
EG2–286
