9.5 Alternator, 1.6 l FSI engine

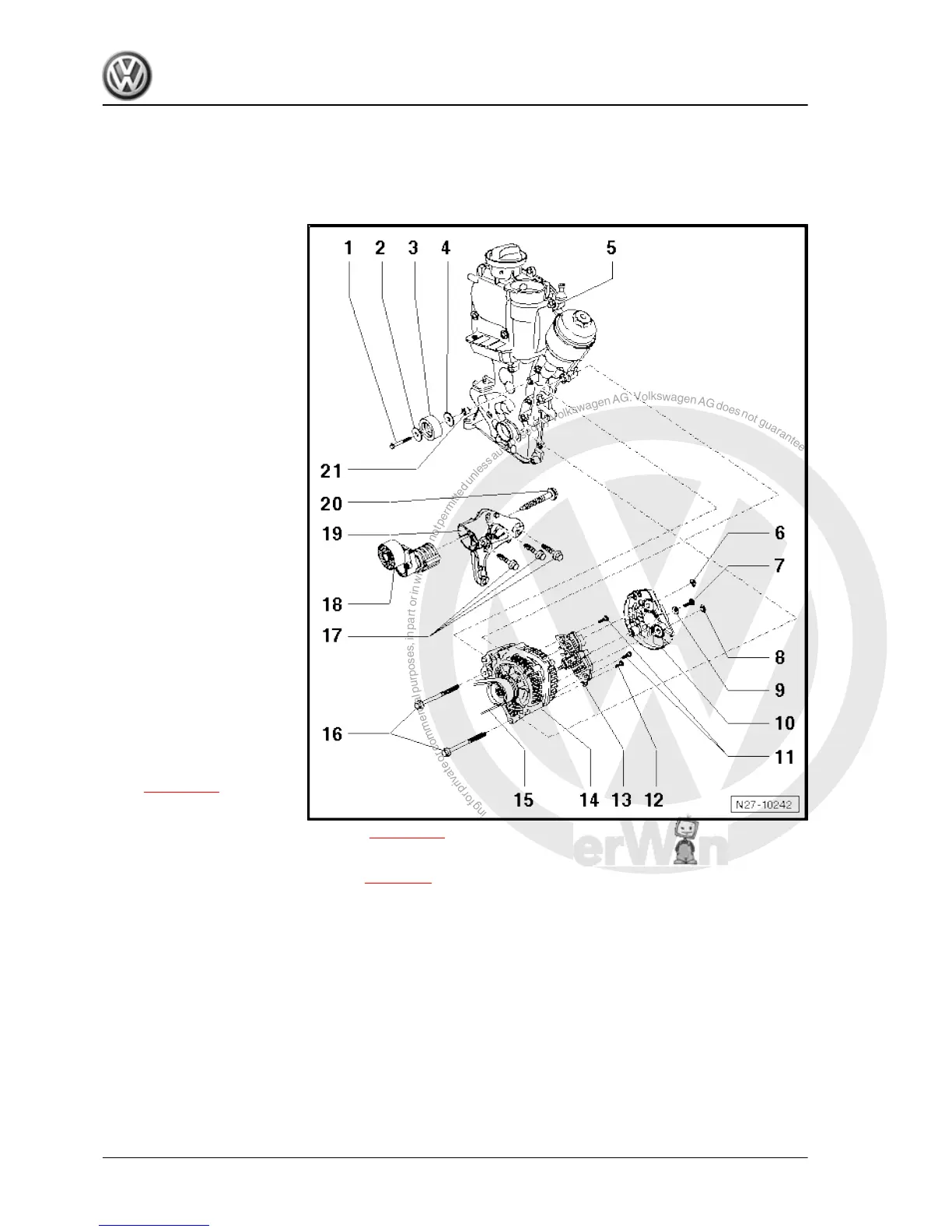

9.5.1 Assembly overview
1 - Hexagon bolt
❑ 40 Nm
2 - Washer
3 - Idler roller
4 - Washer
5 - Valve gear casing
6 - Hexagon head collared nut
❑ M8
7 - Cross-head screw
❑ M5x21
❑ 4.5 Nm
8 - Hexagon nut, flat
❑ M8
9 - Plain washer
❑ M5
10 - Protective cap
11 - Phillips screws
❑ M4x19
❑ 2 Nm
12 - Cross-head screw
❑ M4x13
❑ 2 Nm
13 - Voltage regulator
❑ Removing and installing
voltage regulator
⇒ page 142
14 - Alternator
❑ Removing and installing alternator ⇒ page 105
15 - Poly V-belt
❑ Checking ribbed belt (poly V-belt) ⇒ page 98
16 - Hexagon head collared bolts
❑ M8x90
❑ 23 Nm
17 - Hexagon head collared bolts
❑ M8x50
❑ 25 Nm
18 - Tensioning element
19 - Bracket
❑ For tensioning element and air conditioner compressor
20 - Hexagon head collared bolt
❑ M10x50
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
104 Rep. Gr.27 - Starter, current supply, CC
