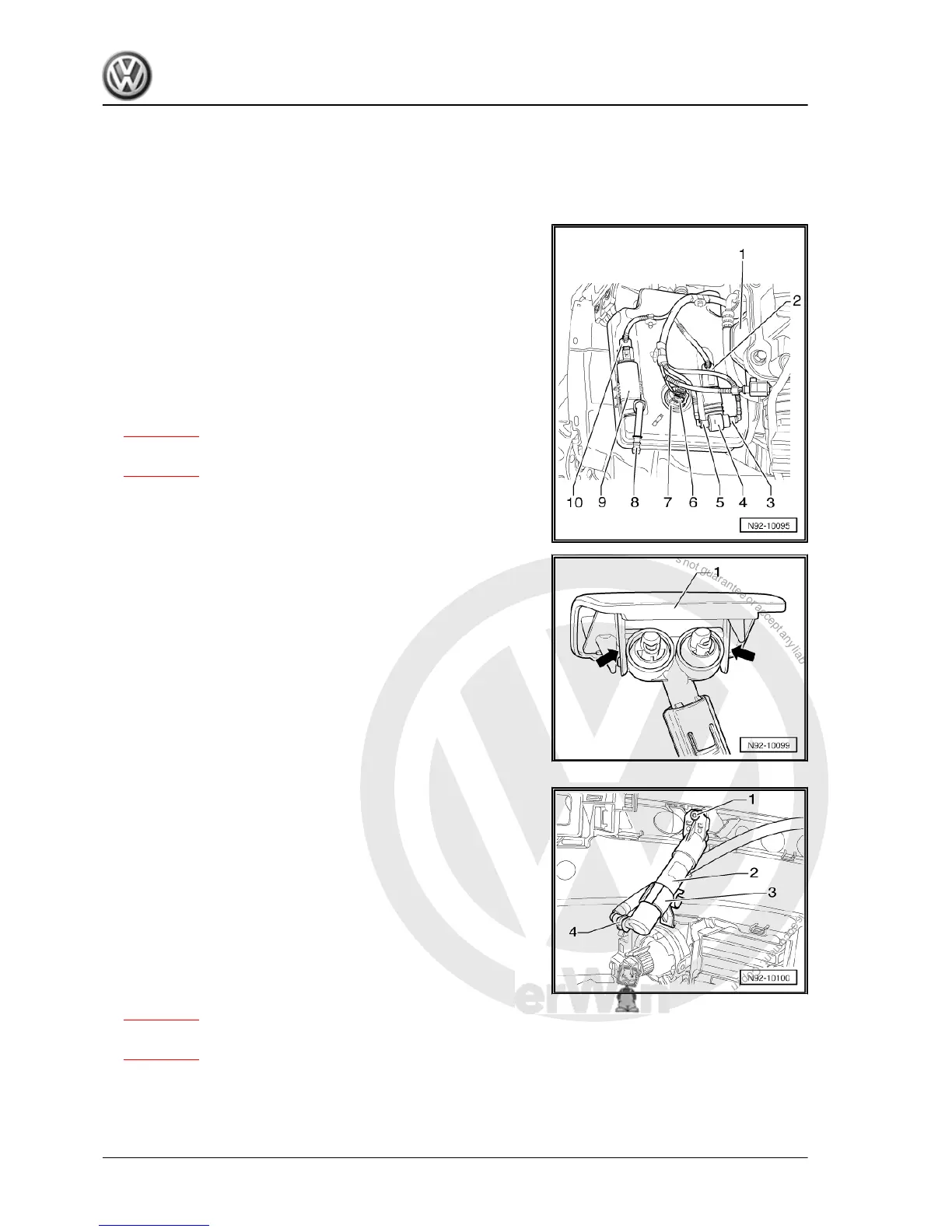

Removing:
– Switch off ignition and all electrical consumers and pull out
ignition key.
– Remove front bumper cover ⇒ Body Repairs, exterior; Rep.
Gr. 63 ; Front bumper .
– Pull headlight washer system pump -V11- -9- upwards out of
the reservoir.
– Disconnect connector -10-.
– To remove the connecting pipe -8- pull securing clip on con‐
nection and pull connecting pipe -8- off headlight washer
system pump -V11- .
Installing:
Installation is carried out in the reverse order. When installing,
note the following:
– Tighten threaded connections to specified torque settings
⇒ page 178 .
– Bleed the headlight washer system after completing work
⇒ page 173 .
3.3 Removing and installing pop-up spray
jet cylinder
Removing:
– Switch off ignition and all electrical consumers and pull out
ignition key.
– Pull spray jets with cap -1- out of bumper cover onto stop.
– Unclip cap -1- from mounting points -arrows- on washer spray
jet assembly.
– Remove front bumper cover ⇒ Body Repairs, exterior; Rep.
Gr. 63 ; Front bumper .
– Pull the securing clip -4- off hose connection.
– Pull hose connection off pop-up cylinder -2-.
– Remove securing bolt -1-.
– Unclip pop-up spray jet cylinder -2- from bracket -3-.
Installing:
Installation is carried out in the reverse order. When installing,
note the following:
– The pop-up spray jet cylinder hose must be attached to the
securing clip on the bracket.
– Tighten threaded connections to specified torque settings
⇒ page 178 .
– Bleed the headlight washer system after completing work
⇒ page 173 .
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
172 Rep. Gr.92 - Windscreen wash/wipe system
