9.10 Alternator, 2,0 l TDI engine

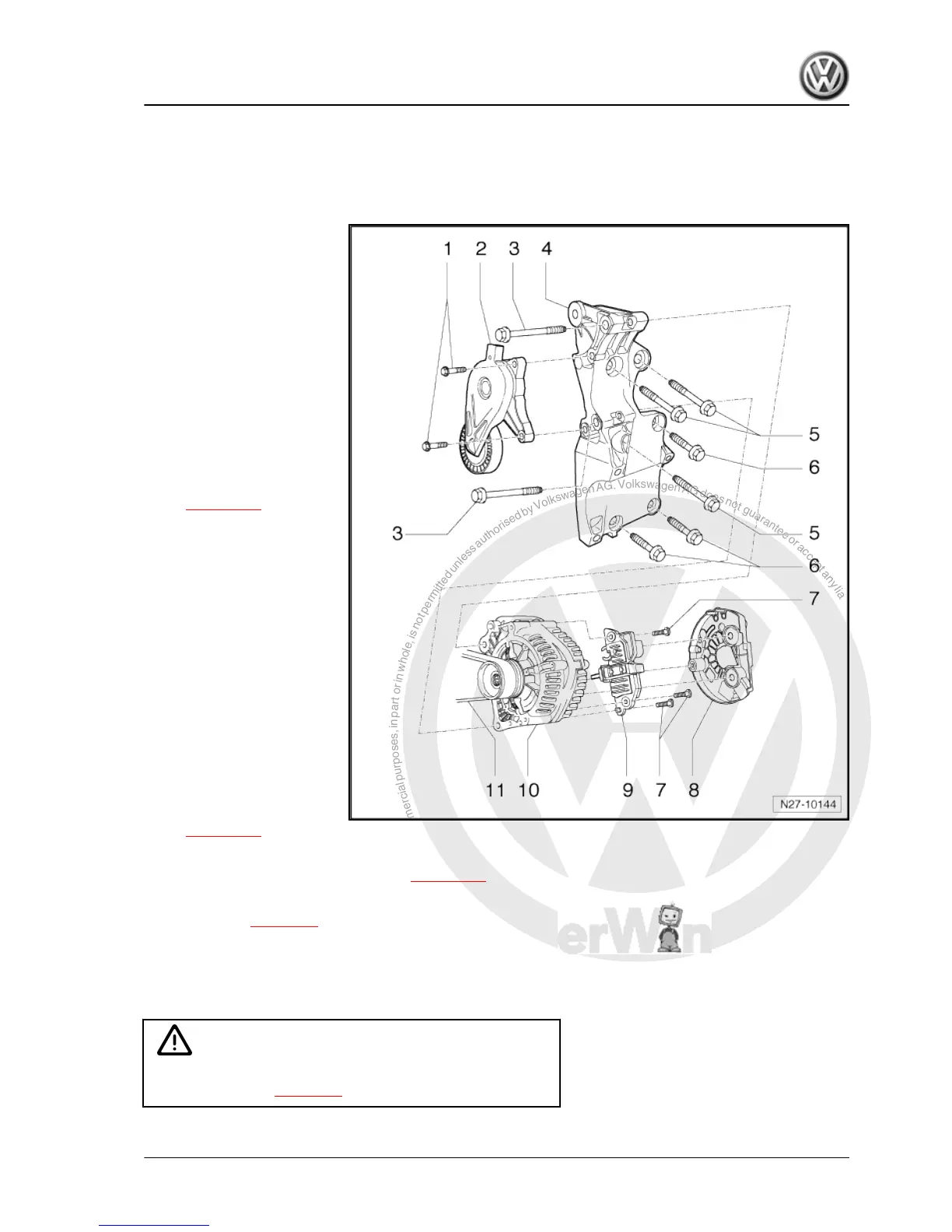

9.10.1 Assembly overview
1 - Hexagon head collared
bolts
❑ M8x45
❑ 20 Nm
2 - Tensioning element for poly
V-belt
3 - Hexagon head collared
bolts
❑ M8x90
❑ 20 Nm
4 - Compact bracket
❑ For alternator and air
conditioner compressor
❑ Tightening sequence
⇒ page 148
5 - Hexagon head collared
bolts
❑ M10x65
❑ 40 Nm
6 - Hexagon head collared
bolts
❑ M10x45
❑ 40 Nm
7 - Phillips screws
❑ M4x20
❑ 2 Nm
8 - Protective cap
9 - Voltage regulator
❑ Removing and installing
voltage regulator
⇒ page 142
10 - Alternator
❑ Removing and installing alternator ⇒ page 133
11 - Poly V-belt
❑ Checking ⇒ page 98 .
9.10.2 Removing and installing alternator, 2,0 l
TDI engine
Caution
Disconnecting and connecting the battery as described in the
Workshop Manual ⇒ page 29 .
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
9. Alternator 133
