9.9 Alternator, 1.9 l TDI engine

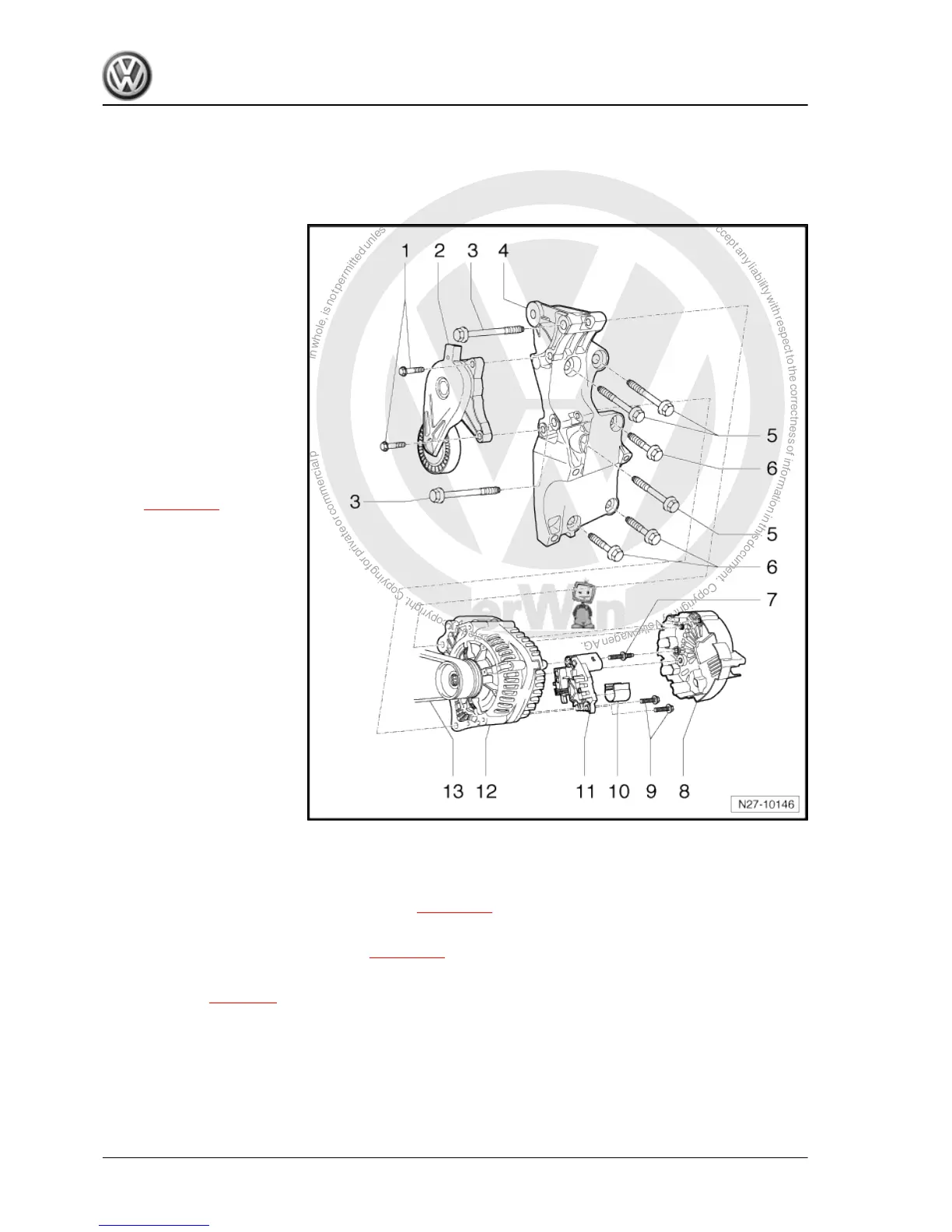

9.9.1 Assembly overview
1 - Hexagon head collared
bolts
❑ M8x45
❑ 20 Nm
2 - Tensioning element for poly
V-belt
3 - Hexagon head collared
bolts
❑ M8x90
❑ 20 Nm
4 - Compact bracket
❑ For alternator and air
conditioner compressor
❑ Tightening sequence
⇒ page 148
5 - Hexagon head collared
bolts
❑ M10x65
❑ 40 Nm
6 - Hexagon head collared
bolts
❑ M10x45
❑ 40 Nm
7 - Hexagon bolt with washer
and threaded piece
❑ M4x20, M4x15
❑ 2 Nm
8 - Protective cap for alternator
9 - Phillips screws
❑ M4x20
❑ 2 Nm
10 - Protective cap for carbon brushes
11 - Voltage regulator
❑ Removing and installing voltage regulator ⇒ page 142
12 - Alternator
❑ Removing and installing alternator ⇒ page 127
13 - Poly V-belt
❑ Checking ⇒ page 98 .
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
126 Rep. Gr.27 - Starter, current supply, CC
