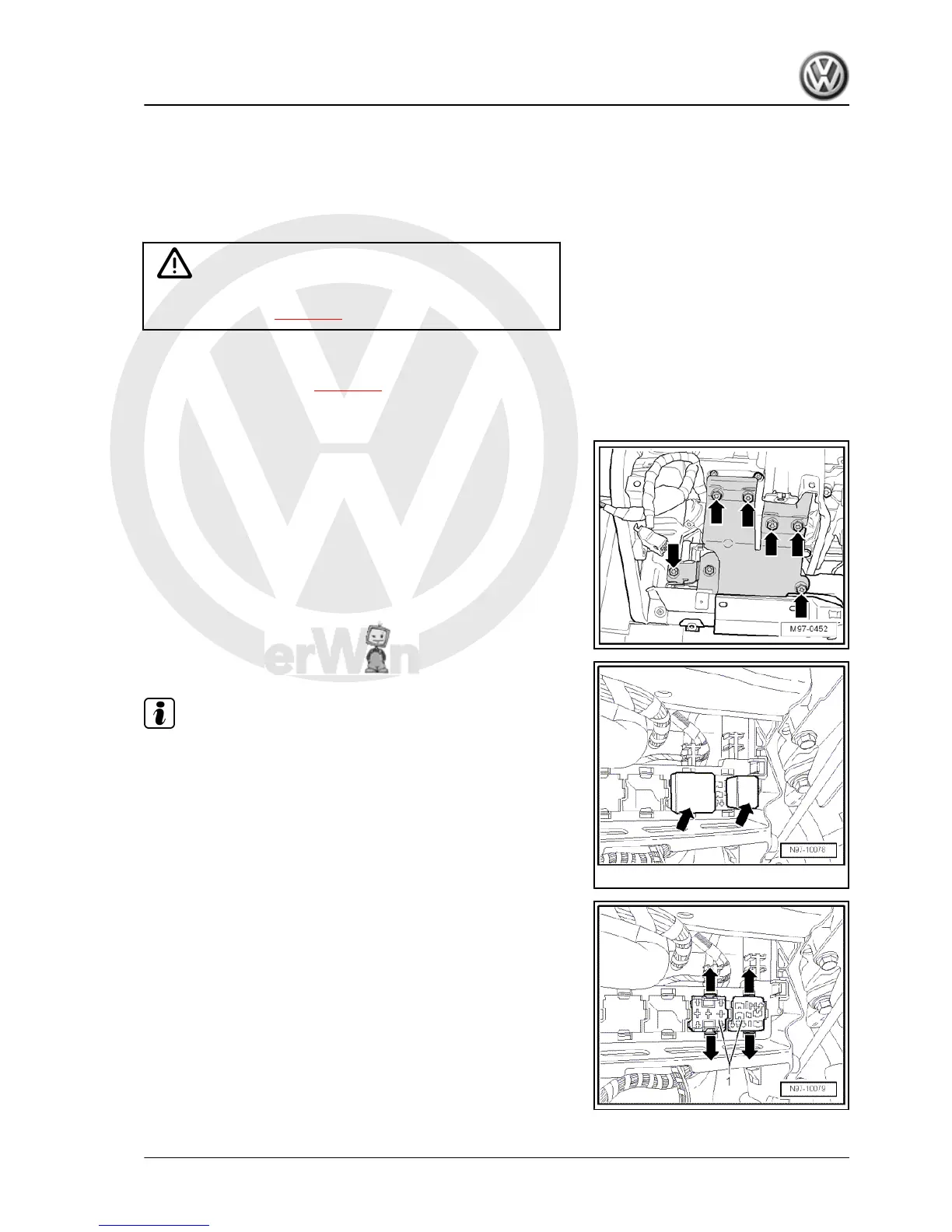

3 Removing and installing relay carrier
3.1 Removing and installing relay carrier
with safety cut-out on left of dash panel
Caution
Disconnecting and connecting the battery as described in the
Workshop Manual ⇒ page 29 .
Removing:
– Disconnect the battery ⇒ page 29 .
– Remove storage compartment on driver side ⇒ General body
repairs, interior; Rep. Gr. 68 ; Compartments, covers and trim .
– Unscrew bolts -arrows- of the bracket.
– Pull relays -arrows- out of the relay carrier.
Note
The relay number depends on vehicle equipment.
– Clip locking lugs in -direction of arrow- outwards and then
press the connector -1- through the relay carrier.
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
3. Removing and installing relay carrier 285
