Installing:
Note
For reasons of clarity, the ignition key is not shown in the following
diagram.

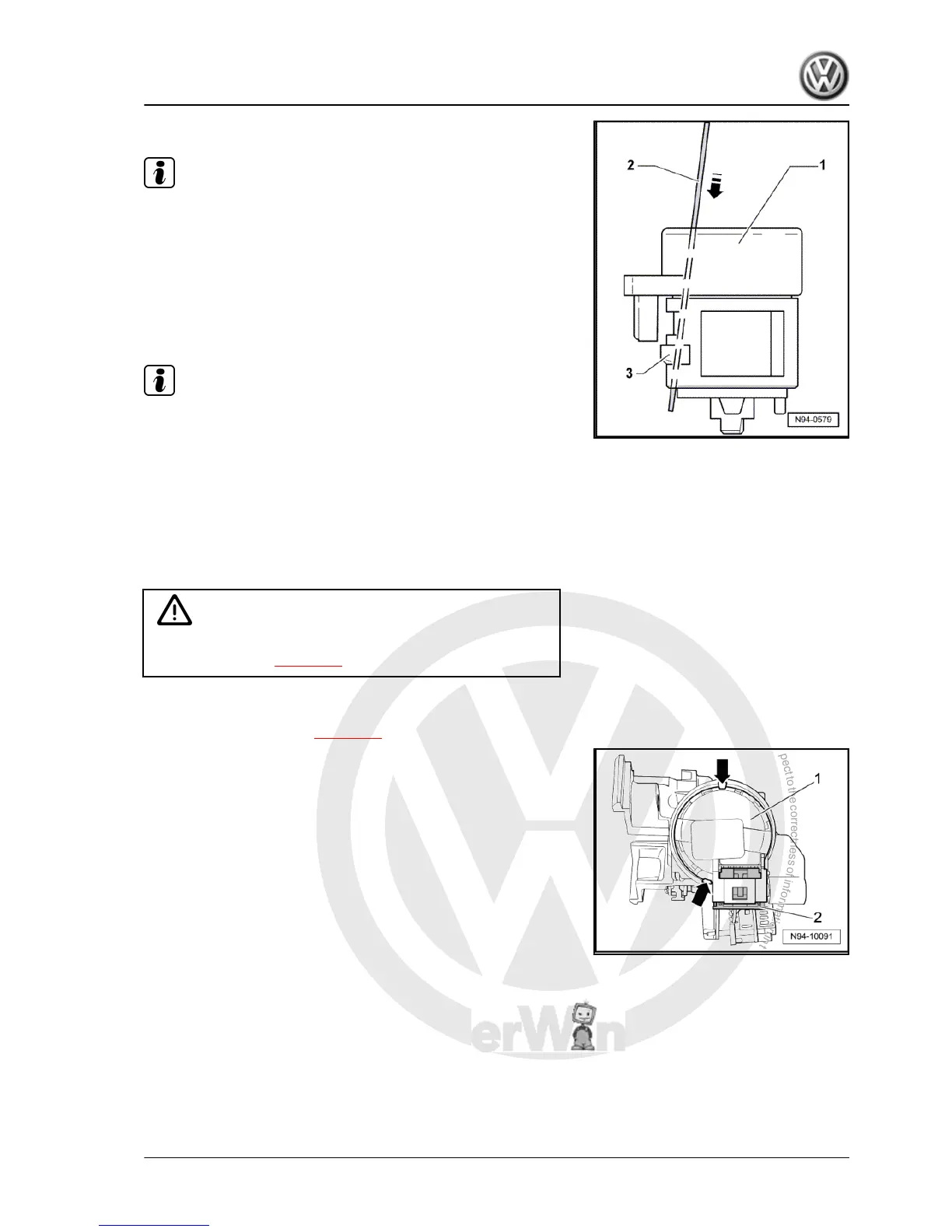

– Insert ignition key in lock cylinder -1- and turn to position
“Drive”.
– Using steel rod -2- disengage -arrow- safety bar -3- of lock
cylinder -1-.
– Place lock cylinder -1- in steering lock housing.
Note
The connection for the immobilizer reader coil must be inserted
in the steering lock housing guide.
– Pull steel rod -2- out of lock cylinder -1- and check lock cylinder
is seated correctly in the steering lock housing.
– Fit connector to immobilizer reader coil.
– Install all parts in reverse order of removal.
10.3 Removing and installing ignition switch
Caution
Disconnecting and connecting the battery as described in the
Workshop Manual ⇒ page 29 .
Removing:
– Disconnect the battery ⇒ page 29 .
– Pull connector -2- off ignition switch -1-.
– Release ignition switch using small screwdriver -arrows-.
– Pull ignition switch -1- out of steering lock housing.
Installing:
– Insert ignition switch in steering lock housing until it can be
heard to engage.
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
10. Ignition switch and lock cylinder 231
