9.8 Alternator 2.5 l injection engine

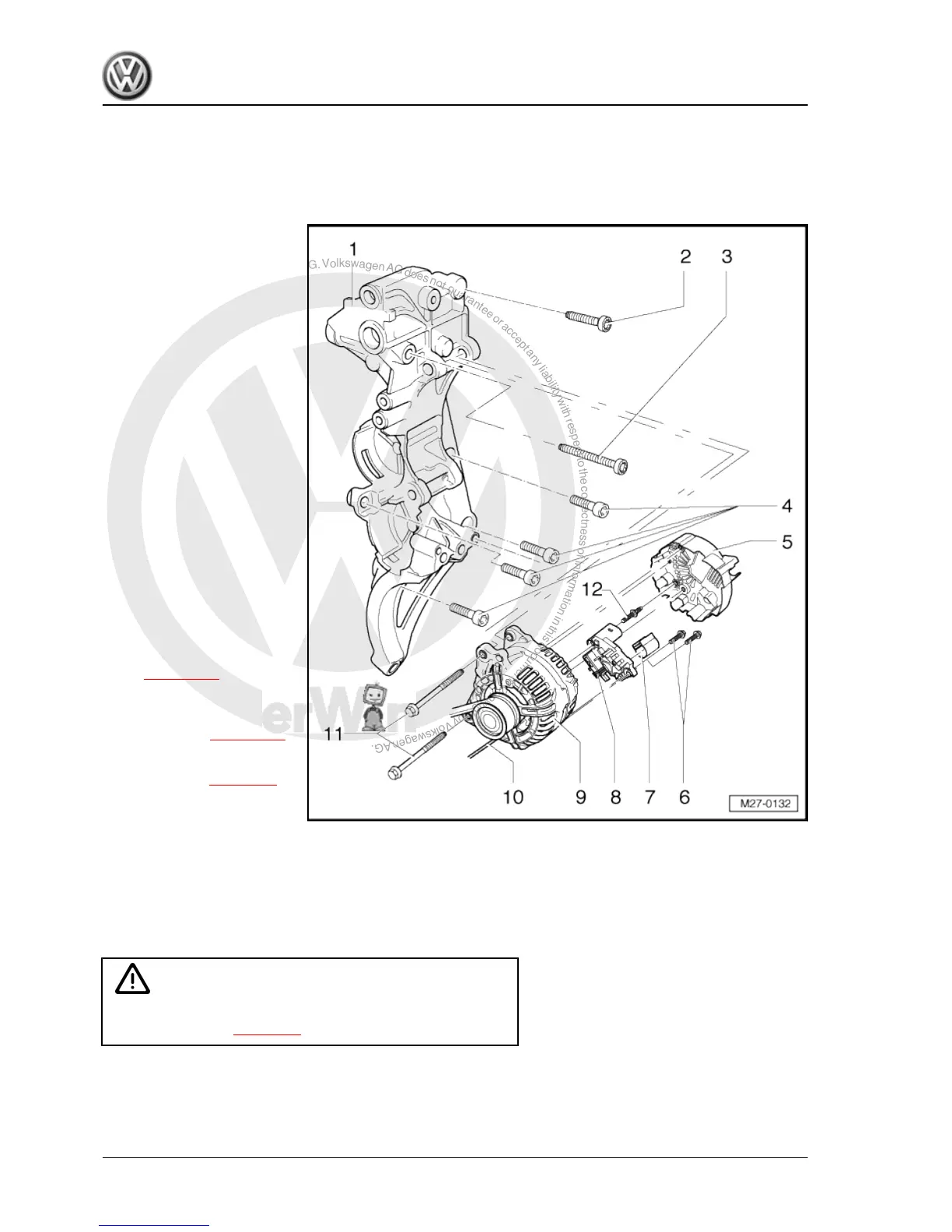

9.8.1 Assembly overview
1 - Compact bracket
❑ For alternator and air
conditioner compressor
2 - Multi-point socket head bolt
M8x60
❑ 25 Nm
3 - Multi-point socket head bolt
M8x110
❑ 25 Nm
4 - Hexagon socket head bolt
M8x30
❑ 25 Nm
❑ Qty. 4
5 - Protective cap for alternator
6 - Phillips screws
❑ M4x20
❑ 2 Nm
7 - Protective cap for carbon
brushes
8 - Voltage regulator
❑ Removing and installing
voltage regulator
⇒ page 142
9 - Alternator
❑ Removing and installing
alternator ⇒ page 127
10 - Poly V-belt
❑ Checking ⇒ page 98 .
11 - Hexagon head collared
bolts M8x90
❑ 25 Nm
❑ Qty. 2
9.8.2 Removing and installing alternator, 2.5l
engine
Caution
Disconnecting and connecting the battery as described in the
Workshop Manual ⇒ page 29 .
Removing:
Special tools and workshop equipment required
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
122 Rep. Gr.27 - Starter, current supply, CC
