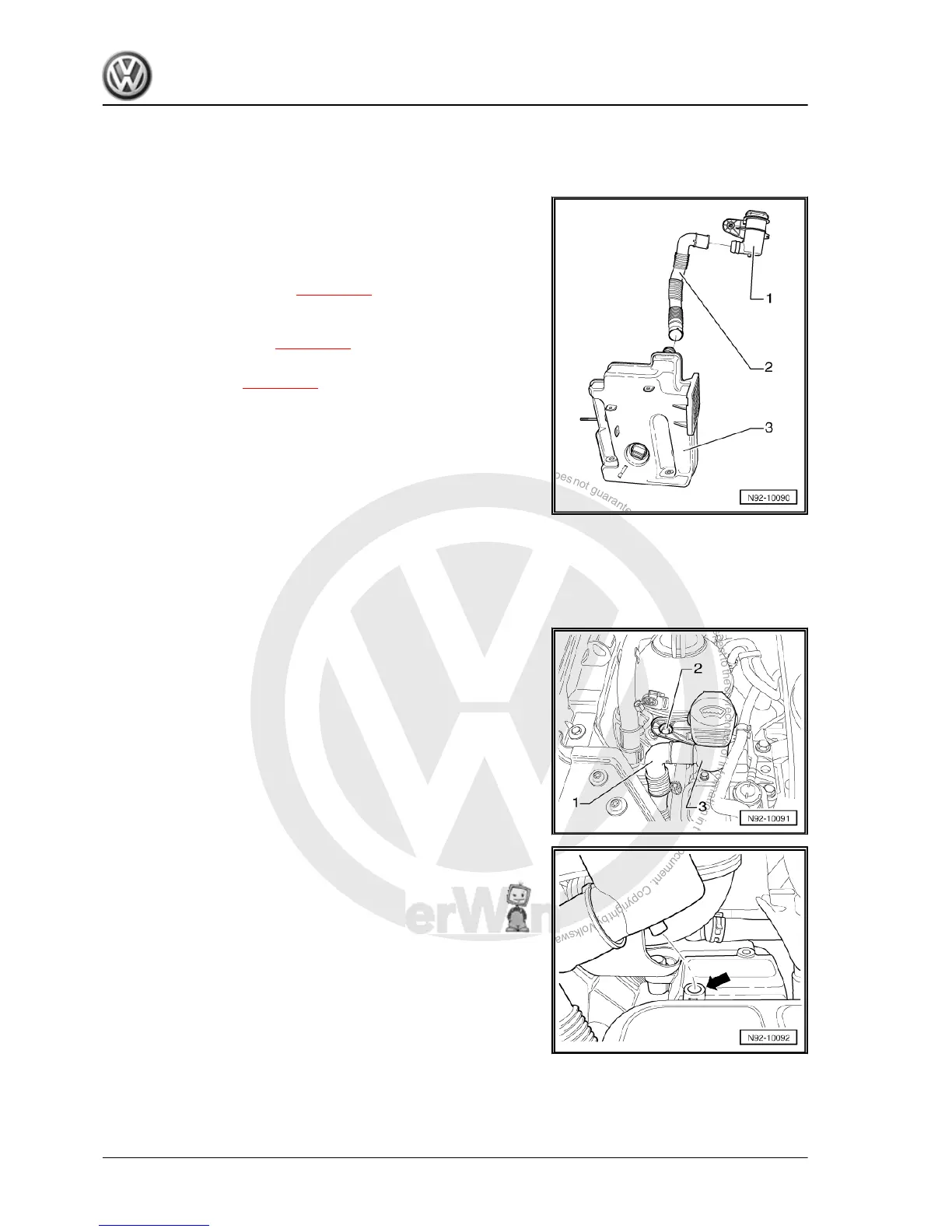

2.2 Removing and installing reservoir for
windscreen and headlight washer sys‐
tems
The reservoir for windscreen and headlight washer systems has
three parts. The individual parts are connected together. To en‐
sure a correct positioning of the individual parts, observe that the
guides of the individual parts run in one another when installing.
1 - Removing and installing filler pipe for windscreen and head‐
light washer system reservoir ⇒ page 166
2 - Connecting pipe filler neck/reservoir; the connecting pipe is
removed together with the reservoir for windscreen washer and
headlight washer systems ⇒ page 167
3 - Removing and installing reservoir for windscreen and head‐
light washer systems ⇒ page 167
2.2.1 Removing and installing filler pipe for
windscreen and headlight washer sys‐
tem reservoir
Removing:
– Pull filler pipe -1- off union -3- on reservoir for windscreen and
headlight washer systems.
– Remove securing bolt -2-.
– Unclip hose retainer from filler neck -3- and take it out of the
vehicle.
Installing:
Installation is carried out in the reverse order. When installing,
note the following:
The funnel on the underside of the filler pipe should be inserted
in the hole -arrow-.
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
166 Rep. Gr.92 - Windscreen wash/wipe system
