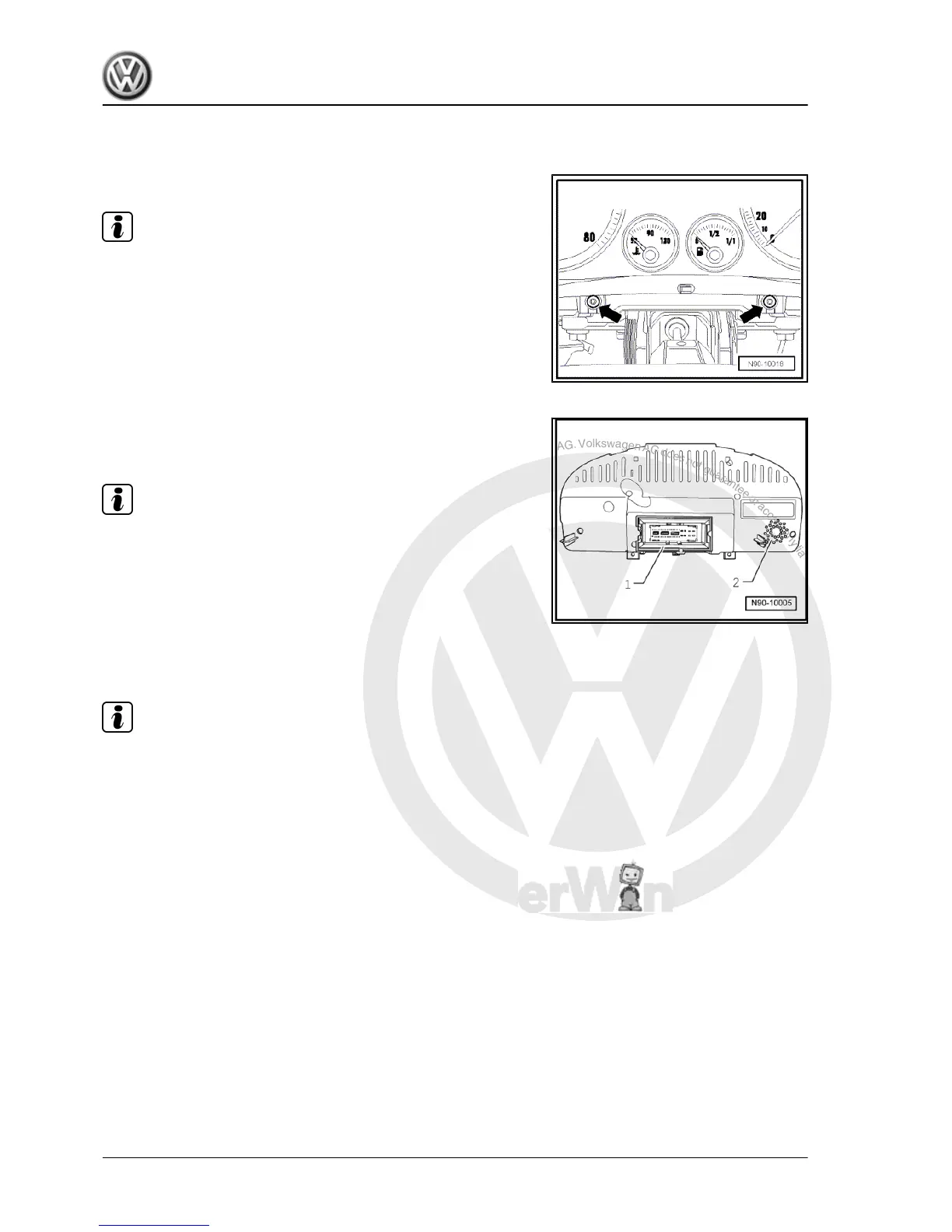

– Remove the upper part of the steering column trim ⇒ General
body repairs, interior; Rep. Gr. 68 ; Compartments, covers
and trim; Removing and installing steering column switch trim .
– Remove securing bolts -arrows- for dash panel insert.
Note
When pulling out dash panel insert, there is no need to separate
the connectors. The connections comprise of one part that is fixed
to the vehicle and are thus separated automatically when the
dash panel insert is pulled out.
– Pull dash panel insert out of dash panel.
Installing:
Install in reverse order of removal.
1.3 Description of reverse side of dash pan‐
el insert
Note
The dash panel insert must not be dismantled. In the event of
defects, the dash panel insert is renewed as a unit.
1 - 36-pin connector
2 - Warning buzzer
1.4 Warning lamp symbols in dash panel in‐
sert
Note
The warning lamps on the dash panel insert depend on the vehi‐
cle's equipment, country and engine type.
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
152 Rep. Gr.90 - Instruments, GCI
