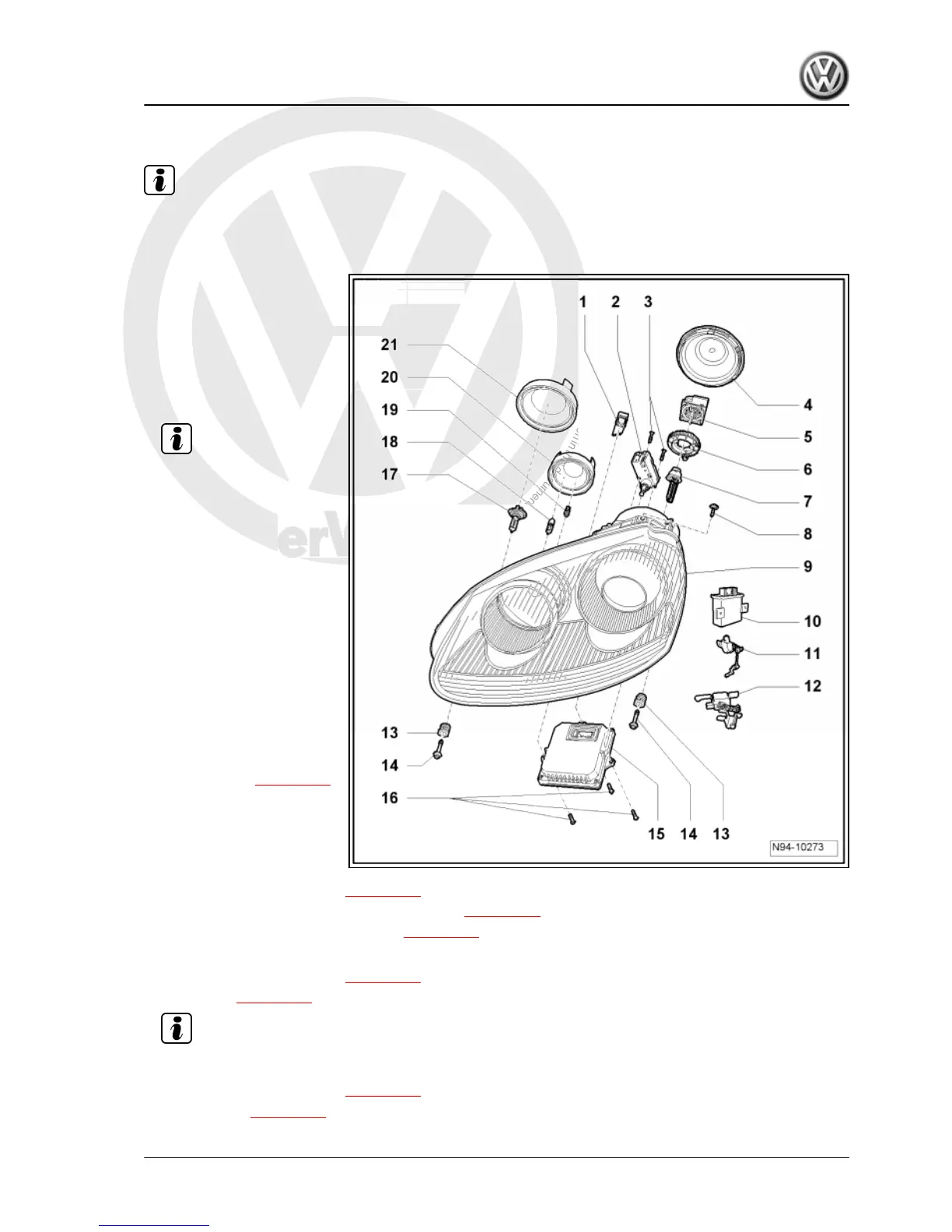

2.1 Assembly overview - gas discharge headlights
Note
After any measures which could affect the headlight setting, the headlight must be checked and if necessary
adjusted ⇒ Maintenance ; Booklet 20.1 .
1 - Vent hose
❑ On headlight
2 - Left headlight range control
motor -V48- or right headlight
range control motor -V49-
❑ Headlight manufactur‐
er: AL (Automotive
Lighting)
Note
3 - Securing bolts
❑ For left headlight range
control motor -V48- or
right headlight range
control motor -V49-
4 - Cover cap
5 - Gas discharge light starter
unit -N195-
6 - Bulb locking
❑ For left gas discharge
bulb -L13- or right gas
discharge bulb -L14-
7 - Left gas discharge bulb -
L13- or right gas discharge
bulb -L14-
❑ Type D2S, 35W
❑ Renewing ⇒ page 192
8 - Securing bolt
❑ 4 Nm
❑ On upper headlight
9 - Headlights
❑ Removing and installing ⇒ page 181
❑ Correcting installation position of headlight ⇒ page 182
❑ Servicing headlight securing lugs ⇒ page 204
10 - Headlight range control unit -J431-
❑ Removing and installing ⇒ page 198
❑ Coding ⇒ page 200
Note
11 - Front left vehicle level sender -G78-
❑ Removing and installing
⇒ page 201
❑ Checking ⇒ page 203 .
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
2. Main headlights with gas discharge bulbs 191
