2.5 Removing and installing headlight range
control motor
Information was not available when it was time of going to press.
2.6 Removing and installing gas discharge
light control unit
Note
The left gas discharge light control unit -J343- or the right gas
discharge light control unit -J344- are not capable of self-diagno‐
sis.
Removing:
– Remove headlight ⇒ page 181 .

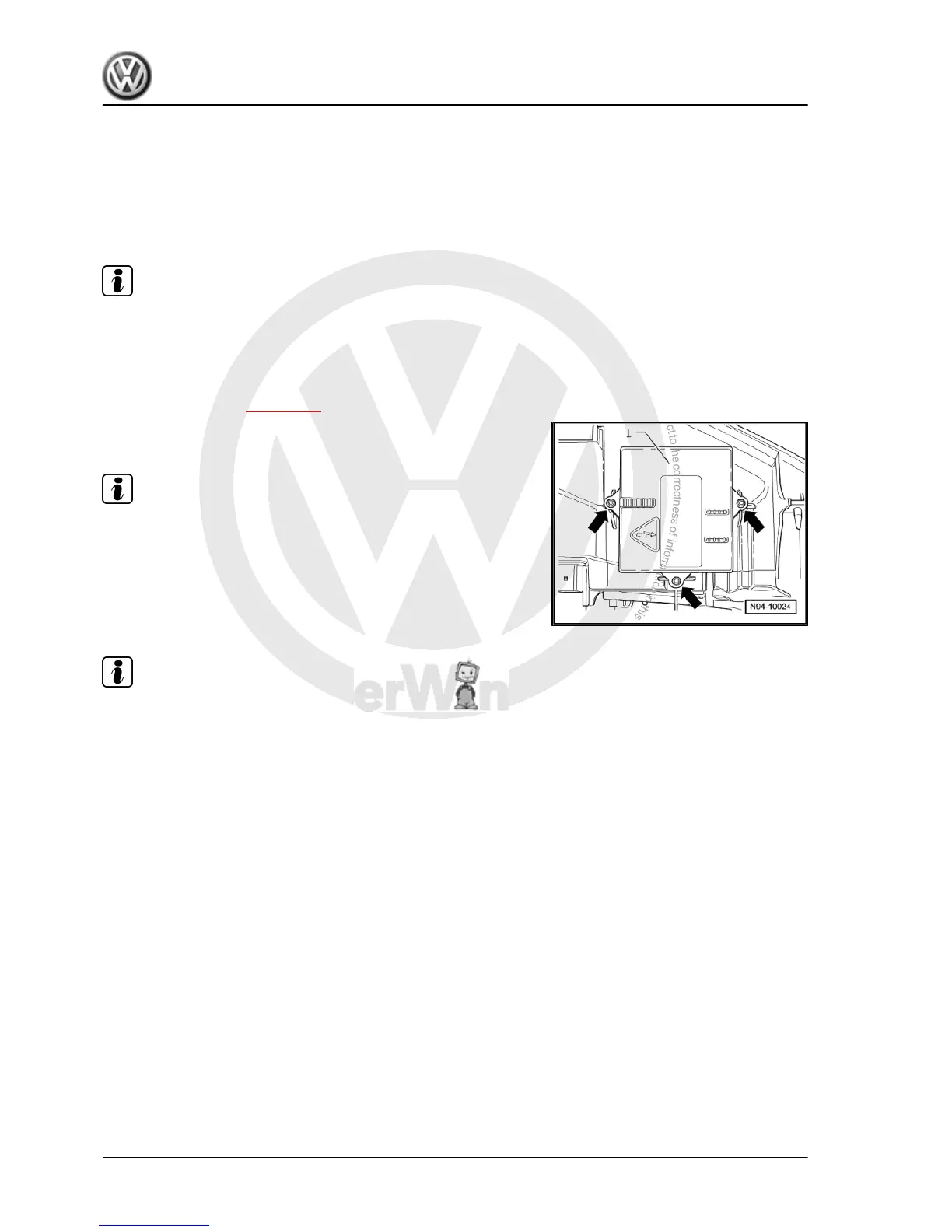

– Remove securing bolts -arrows- of gas discharge light control
unit -1-.
Note
When taking off the gas discharge light control unit the connectors
must not be removed. The connector is fitted tightly to the head‐
light and is automatically disconnected when taking off the gas
discharge light control unit .
– Take off gas discharge light control unit -1- from headlight.
Installing:
Note
When installing the gas discharge light control unit secure correct
seat of the seal. The ingress of water will lead to permanent dam‐
age of the headlight.
Installation is performed in the reverse order of installation; when
doing this, note the following:
– Check function of headlight.
– Perform basic setting of headlights ⇒ Maintenance ; Booklet
20.1 .
2.7 Headlight range control unit -J431-
2.7.1 Removing and installing headlight range
control motor -J431-
Special tools and workshop equipment required
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
198 Rep. Gr.94 - Lights, lamps, switches - outside
