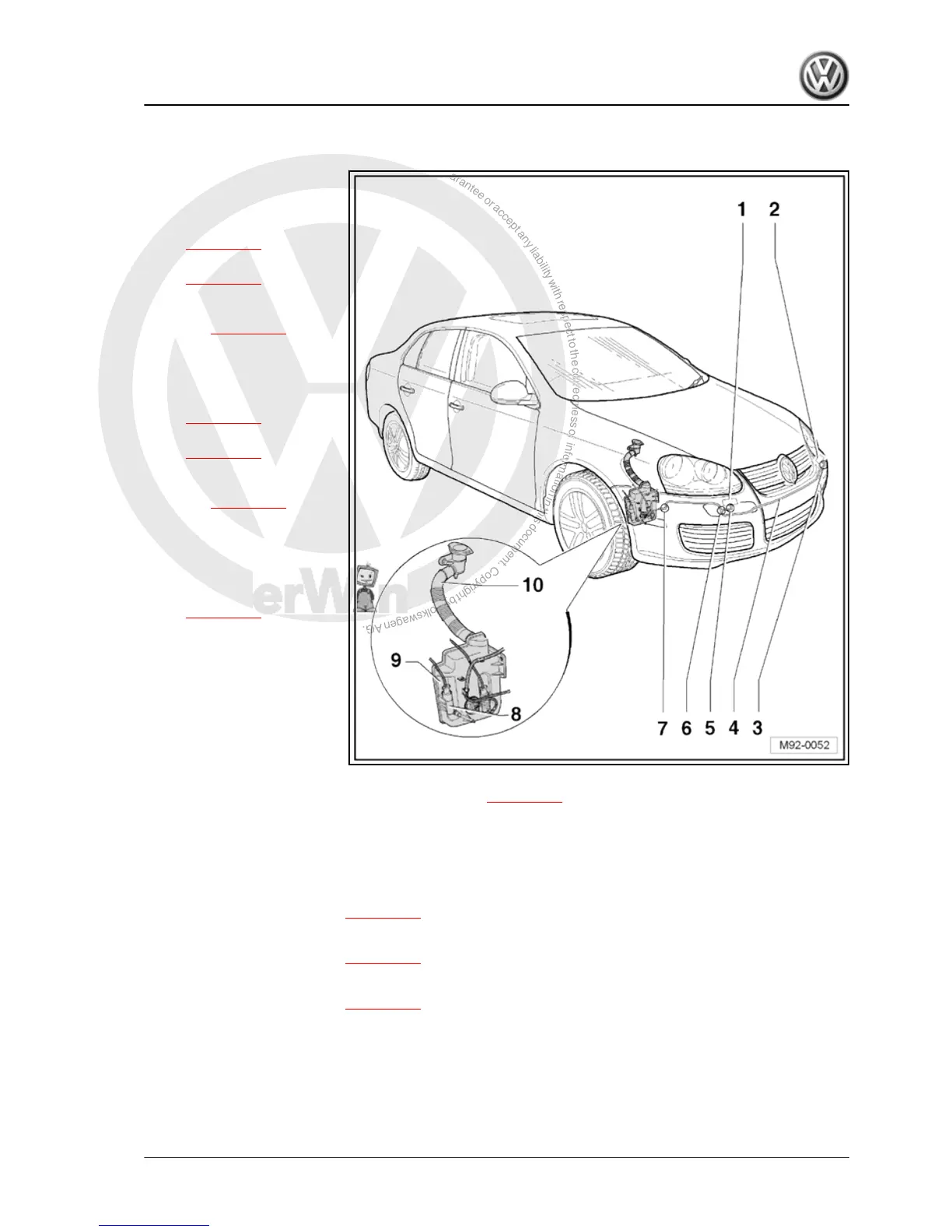

3.1 Assembly overview - headlight washer system
1 - Washer spray jet assembly
with right spray jets
❑ Removing and installing
spray jet assembly
⇒ page 173
❑ Adjusting spray jets
⇒ page 173
❑ Removing and installing
pop-up spray jet cylin‐
der ⇒ page 172
2 - Washer spray jet assembly
with left spray jets
❑ Removing and installing
spray jet assembly
⇒ page 173
❑ Adjusting spray jets
⇒ page 173
❑ Removing and installing
pop-up spray jet cylin‐
der ⇒ page 172
3 - Elbow
❑ Connection to left spray
jet pop-up cylinder
❑ Overview of washer wa‐
ter line hose couplings
⇒ page 174
4 - Hose
5 - Elbow
❑ Connection to right
spray jet pop-up cylin‐
der
❑ Distribution of washer
water to spray jets on
headlight washer sys‐
tem
❑ Overview of washer water line hose couplings ⇒ page 174
6 - T-piece
❑ Distribution of washer water to spray jets on headlight washer system
7 - Elbow
8 - Headlight washer system pump -V11-
❑ Removing and installing ⇒ page 171
9 - Windscreen washer system and headlight washer system reservoir
❑ Removing and installing ⇒ page 166
10 - Filler pipe for reservoir for windscreen washer and headlight washer systems
❑ Removing and installing ⇒ page 166
3.2 Removing and installing headlight
washer system pump -V11-
The headlight washer system pump -V11- is fitted on the wind‐
screen and headlight washer system in the right housing liner.
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
3. Headlight washer system 171
