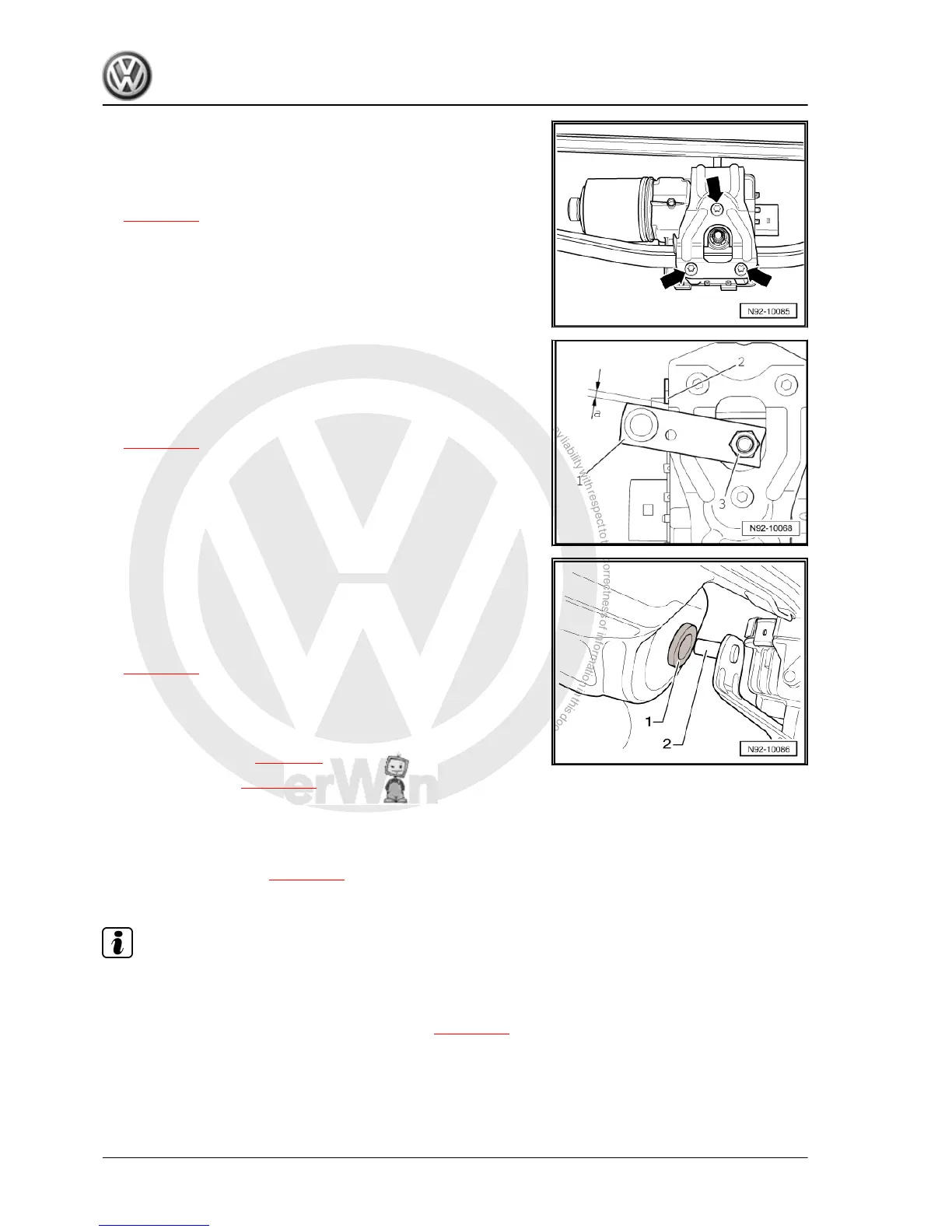

1.2.7 Installing wiper motor in wiper frame
– Insert wiper motor with control unit in wiper frame and secure
it in place with the securing bolts -arrows-.
– Tighten threaded connections to specified torque settings
⇒ page 178 .
– Place crank arm of motor -1- on shaft of wiper motor. Distance
-a- to limit stop -2- should be 3 ± 1 mm.
– Place crank arm of motor on shaft of wiper motor using se‐
curing nut -3-.
– Tighten threaded connections to specified torque settings
⇒ page 178 .
1.2.8 Installing the windscreen wiper system
– Install wiper frame in reverse order of removal. Note when in‐
stalling that securing pin -2- of wiper frame must be inserted
in grommet -1- in bulkhead.
– Tighten threaded connections to specified torque settings
⇒ page 178 .
– Fit connector to wiper motor connection and lock in position.
– Install air cowling, plenum chamber cover and plenum cham‐
ber seal in reverse order of removal.
– Connect the battery ⇒ page 29 .
– Install wiper arms ⇒ page 160 .
1.3 Removing and installing wiper arms
Removing:
– Removing wiper arms ⇒ page 158 .
Installing:
Note
Securing nuts of wiper arms are not tightened to specified torque
until after wiper blade park position has been adjusted.
– Deactivate the APP function if not already done ⇒ page 155 .
– To move wiper motors to their park position, switch wind‐
screen wipers on and off with ignition on.
Jetta 2005 ➤ , Bora 2006 ➤
Electrical System - Edition 05.2005
160 Rep. Gr.92 - Windscreen wash/wipe system
