ROTARY INDEXING TABLE CONTROLLER
EF2...B
OPERATION / DESCRIPTION OF WEISS SOFTWARE | 8.5 Operation and Monitoring
8.5.3.2 Manual operation: Setting inputs
Condition for manual operation: The control authority has to be activated.
The control authority of the browser window is indicated by the yellow and black frame around the input field.

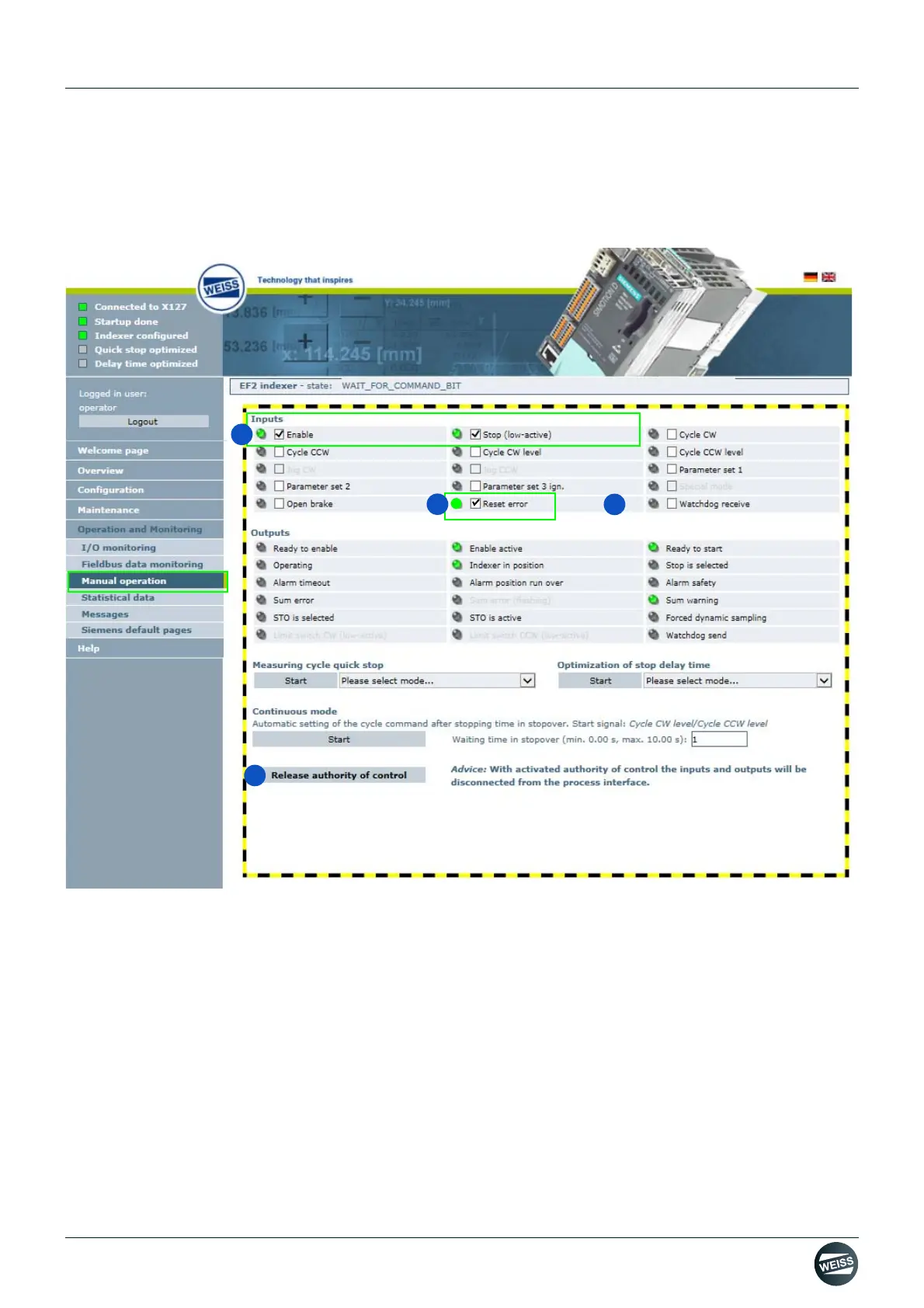

Fig. 72: Manual operation: Setting inputs
1. Set the inputs "Enable" and "Stop (low-active)".
These two inputs have to be set in order to move the rotary indexing table.
2. The input "Reset error" can be used to reset any existing errors.
The display changes from green to grey.
3. Operate inputs manually.
4. After finishing manual operation: Release control authority.
