WEISS EF2 Series User Manual

Manual R06-201658 / 172
ROTARY INDEXING TABLE CONTROLLER EF2...B
INSTALLATION | 6.2 Power Module PM240-2; frame size FSA / FSB
6.2.2 Mounting the shielding plate
The shielding plate and the fastening screws are included in the accessory bag of the convertor.
 Shielding plate and safe brake relay have already been factory-fitted.

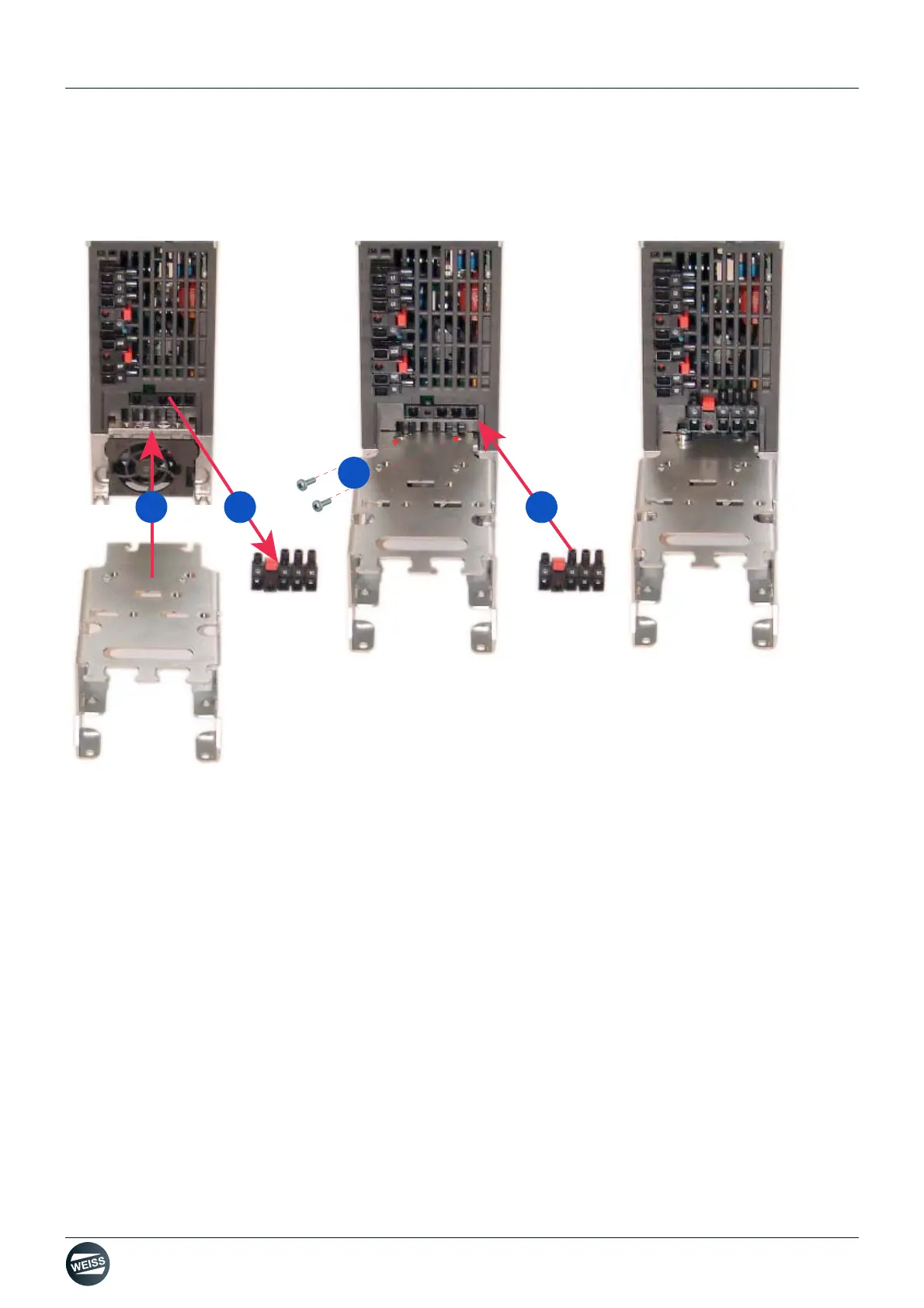

Fig. 30: Mounting the shielding plate
1. Pull off the motor connection plug.
2. Positioning the shielding plate.
3. Screwing on the shielding plate
4. Plug in the motor connection plug.
2. 1.
3.
4.
