Manual R06-2016
69 / 172
ROTARY INDEXING TABLE CONTROLLER
EF2...B
INSTALLATION |
6.5 Terminal Module TM15
6.5
Terminal Module TM15
6.5.1
Mounting Term
inal Module TM15

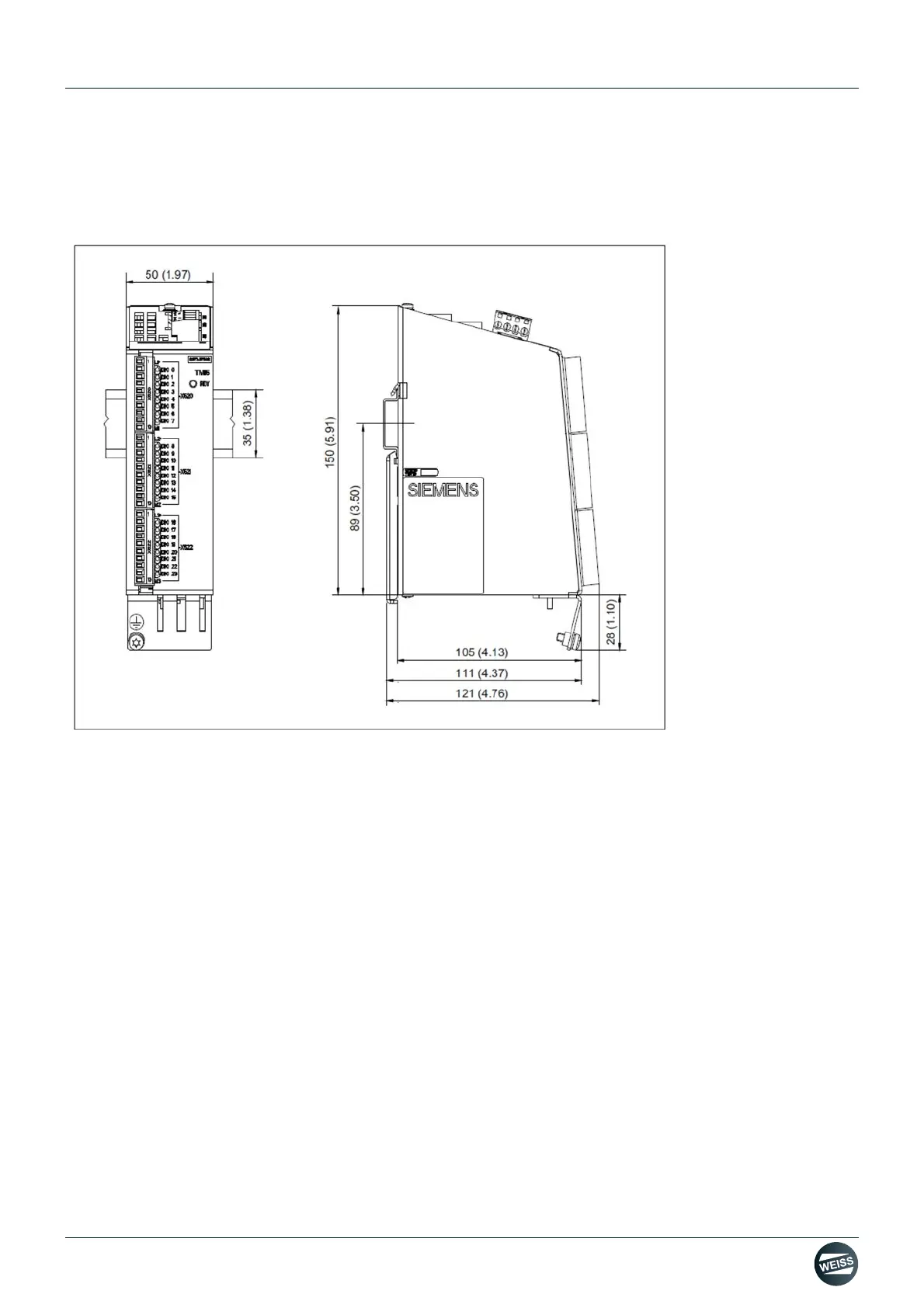

Fig. 41:
Mounting Terminal Mo
dule TM15
The Terminal Module TM15 is designed to be mounted on a DIN rail.
1.
Mount the Terminal Module
TM15 on to a DIN rail.
2.
Note the dimensions ac
cording to the illustration.
3.
Regard the requ
ired cooling and mounting clearances.
