ROTARY INDEXING TABLE CONTROLLER EF2...B
COMPONENT DESCRIPTIONS | 3.5 Terminal Module TM15
3.5 Terminal Module TM15
The Terminal Module provides 24 DI/DO (digital I/Os).
In the case of EF2, the digital inputs and outputs are permanently assigned as 12 DI and 12 DO.
The TM15 terminal module is connected to the SIMOTION D410-2 via DRIVE-CLiQ. It has a separate 24 V supply.
In the case of the EF2 option DI/DO, the TM15 terminal module is delivered with an included a DRIVE-CLiQ cable.

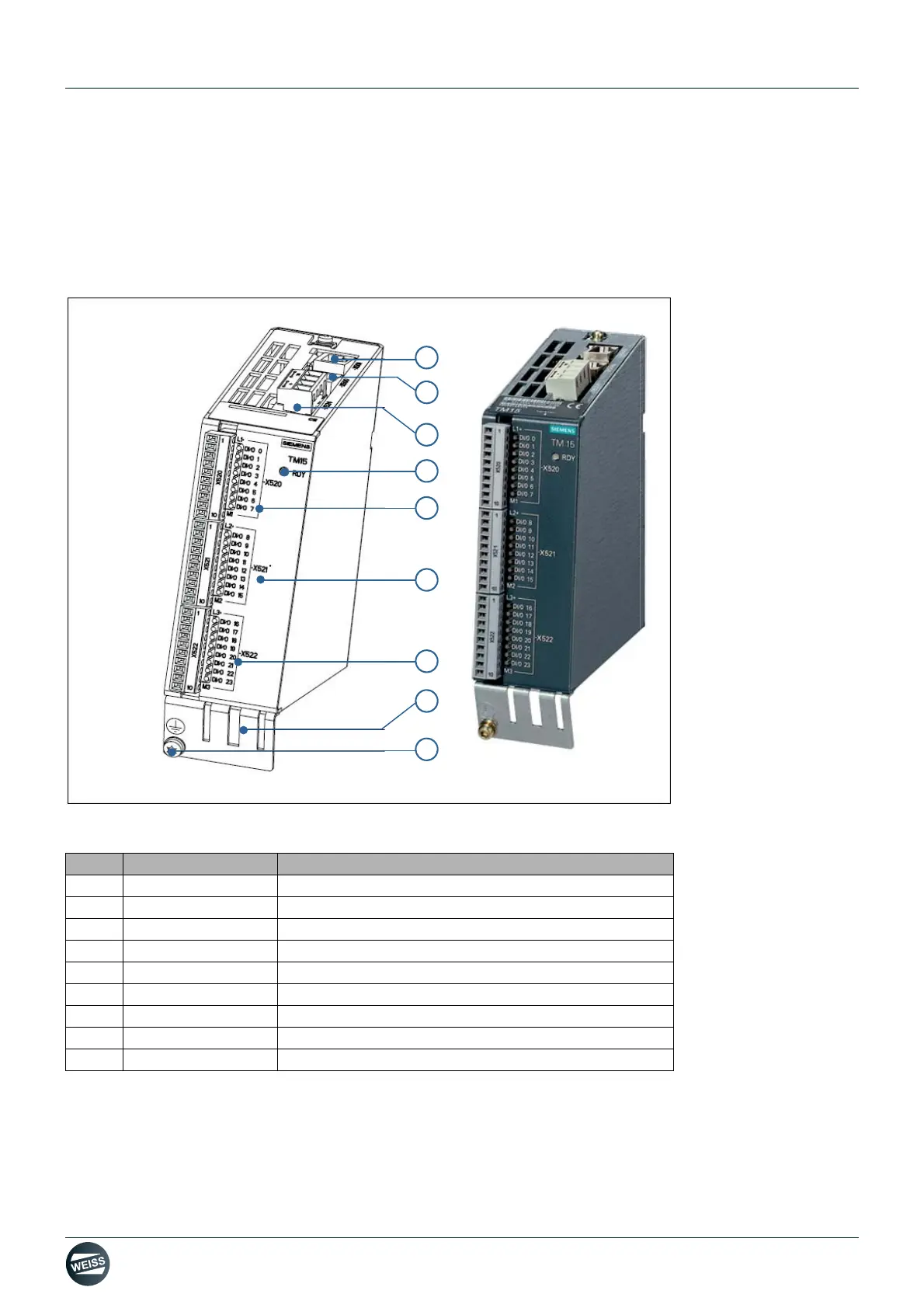

Fig. 11: Interfaces of the TM15 Terminal Module
 Refer to the device manual of the manufacturer for further information.
Pos. Interface Description
(1) X501 DRIVE-CLiQ interface
(2) X500 DRIVE-CLiQ interface
(3) X524 Electronics power supply
(4) LED Status indicator
(5) X520 8 digital inputs
(6) X521 4 digital inputs / 4 digital outputs
(7) X522 8 digital outputs
(8) Shield Shield connection
(9) PE Protective ground connection
1
2
4
5
3
6
7
8
9
