ROTARY INDEXING TABLE CONTROLLER EF2...B
INSTALLATION | 6.2 Power Module PM240-2; frame size FSA / FSB
6.2.1 Dimensions, hole patterns
6.2.1.1 Frame size EF2037 to EF2220
 All dimensions in mm and (inch)

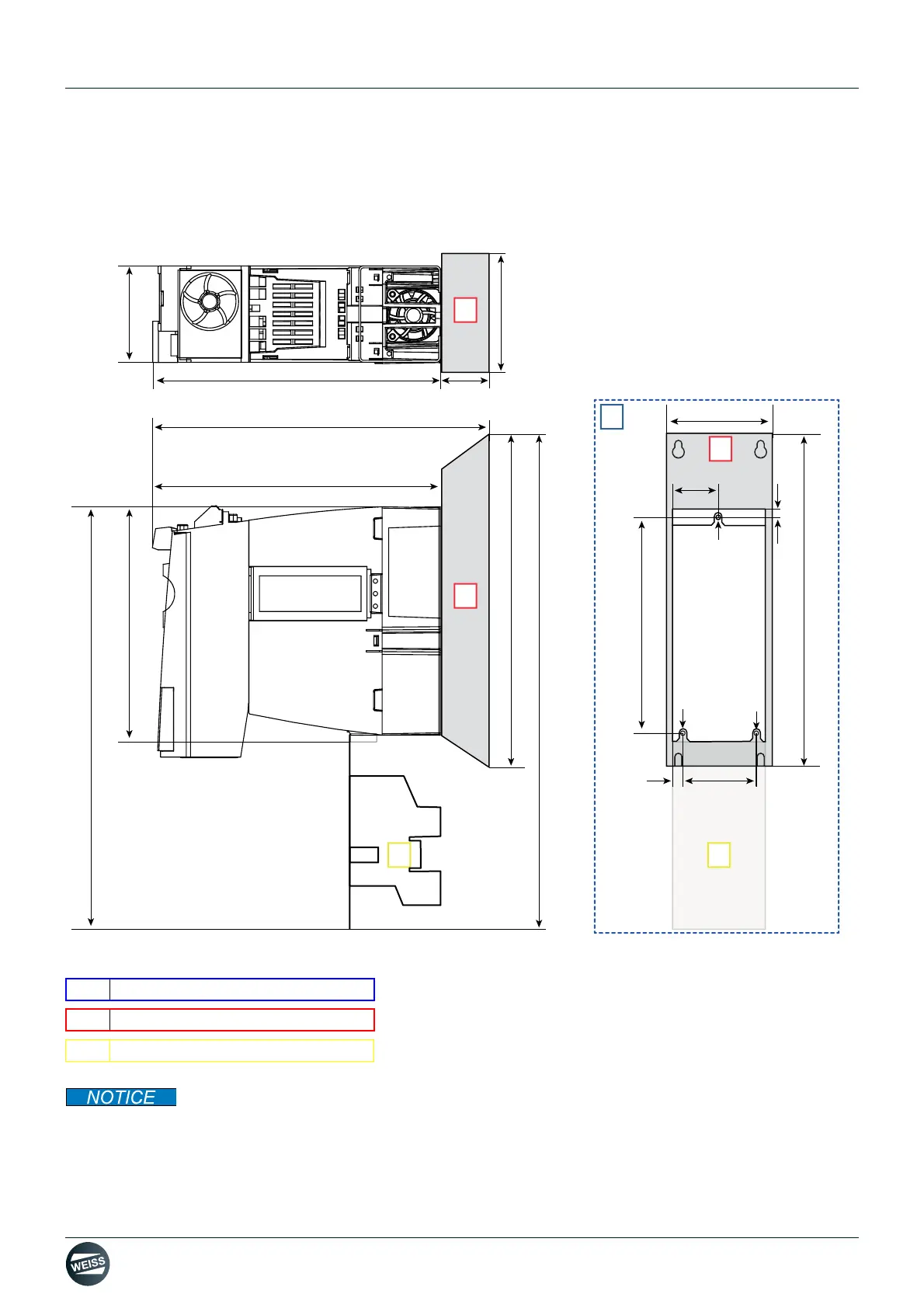

Fig. 28: Dimensions of Power Module PM240-2; frame size FSA
Take the boreholes for brake resistor and shielding plate into account
Power module, brake resistor and shielding plate have different hole patterns. WEISS GmbH recommends drilling
the boreholes for all three components during the installation. This way, further drilling, possible interferences due to
metal chips and mechanical loads are avoided during an eventual retrofitting.
[A] Ventilation clearance
[B] Braking resistor
[C] Shielding plate
A
B
B
B
C C
62,3 (2.45)
186 (7.32)
6 (0.24)
36,5 (1.44)
M4
FSA
196 (7.72)
165 (6.5)
73 (2.87)
165 (6.5)
M4
M4
210 (8.27)
283 (11.14)
90 (3.54)
45 (1.77)
90 (3.54)
283 (11.14)
5,35 (0.21)
308 (12.13)
372 (14.65)
