WEISS EF2 Series User Manual

Manual R06-201666 / 172
ROTARY INDEXING TABLE CONTROLLER EF2...B
INSTALLATION | 6.2 Power Module PM240-2; frame size FSA / FSB
6.2.5.3 Motor connection PM240-2, frame size FSB
 The plug connections are located on the bottom side of the power module.

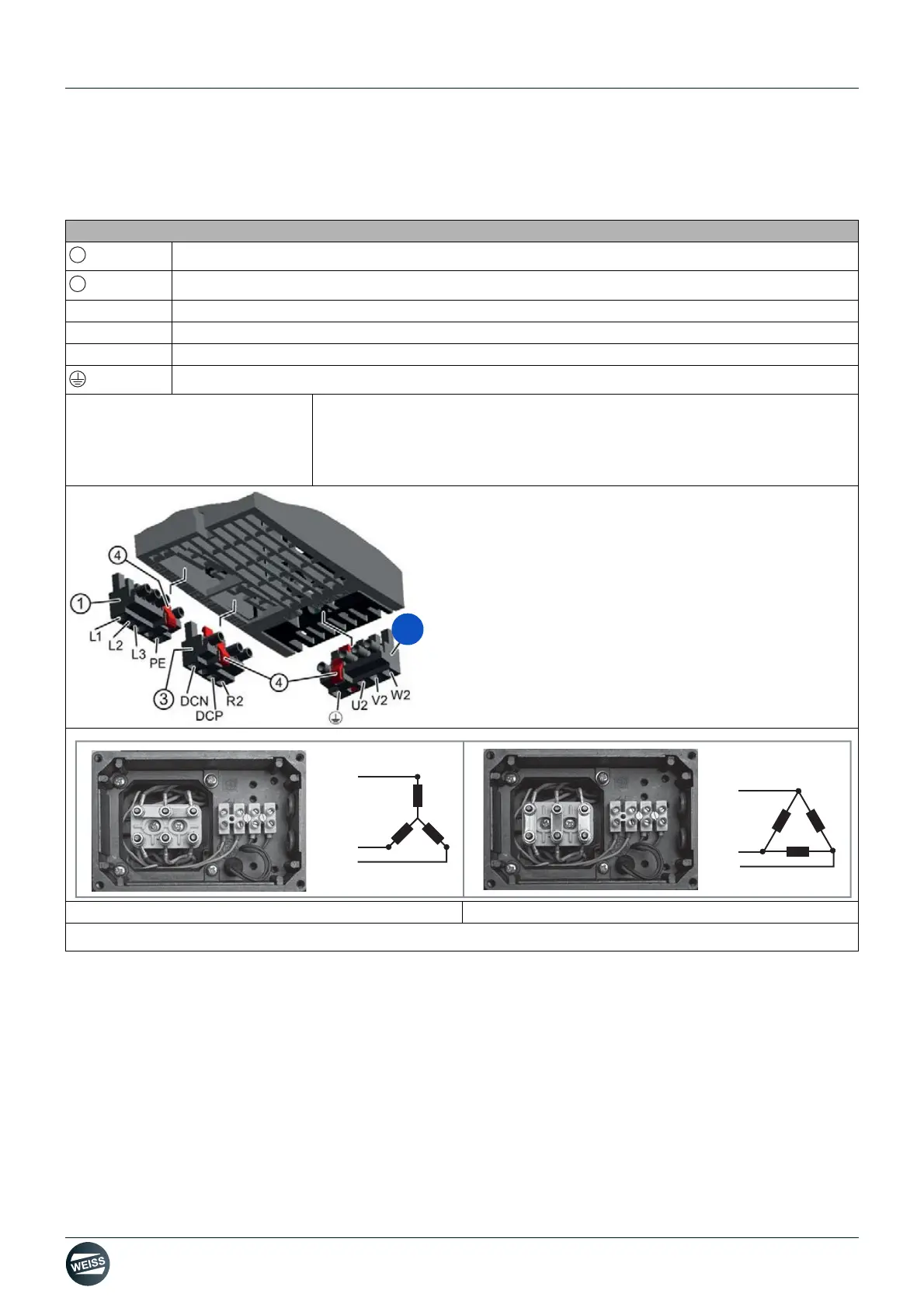

Fig. 38: Motor connection PM240-2, frame size FSB
Name
Motor connection plug
Release lever
U2 Motor phase U
V2 Motor phase V
W2 Motor phase W
Protective ground
Screw terminals
Cross-section
Tightening torque
Stripping length
1.5 to 6.0 mm
2
0.6 mm
8.0 mm
Motor terminal block with star bridge Motor terminal block with delta bridge
 For terminal identifications refer to terminal block lid
2
4
2
U1
V1
W1
U1
V1
W1
