ROTARY INDEXING TABLE CONTROLLER EF2...B
FUNCTION AND SIGNAL DESCRIPTIONS | 4.5 Interface assignment D410-2
4.5.4 Interface X127
Interface X127 serves as the service interface.
This interface (Web interface) is used to configure the rotary indexing table.
4.5.5 Interface X130
 This interface is not used in the standard version!
1)
Reference potential for the digital inputs /digital outputs and analog input
2)
Reference potential for DI 20+
3)
The proper function of the DO 16 requires that the terminals 5/6 are connected.
4)
F-DO 0 for Safety Integrated extended functions
5)
For applications "without safety function", DO 16- does not function
An open input is interpreted as "LOW".
If M1 or M2 is connected with M, the electrical isolation no longer exists.

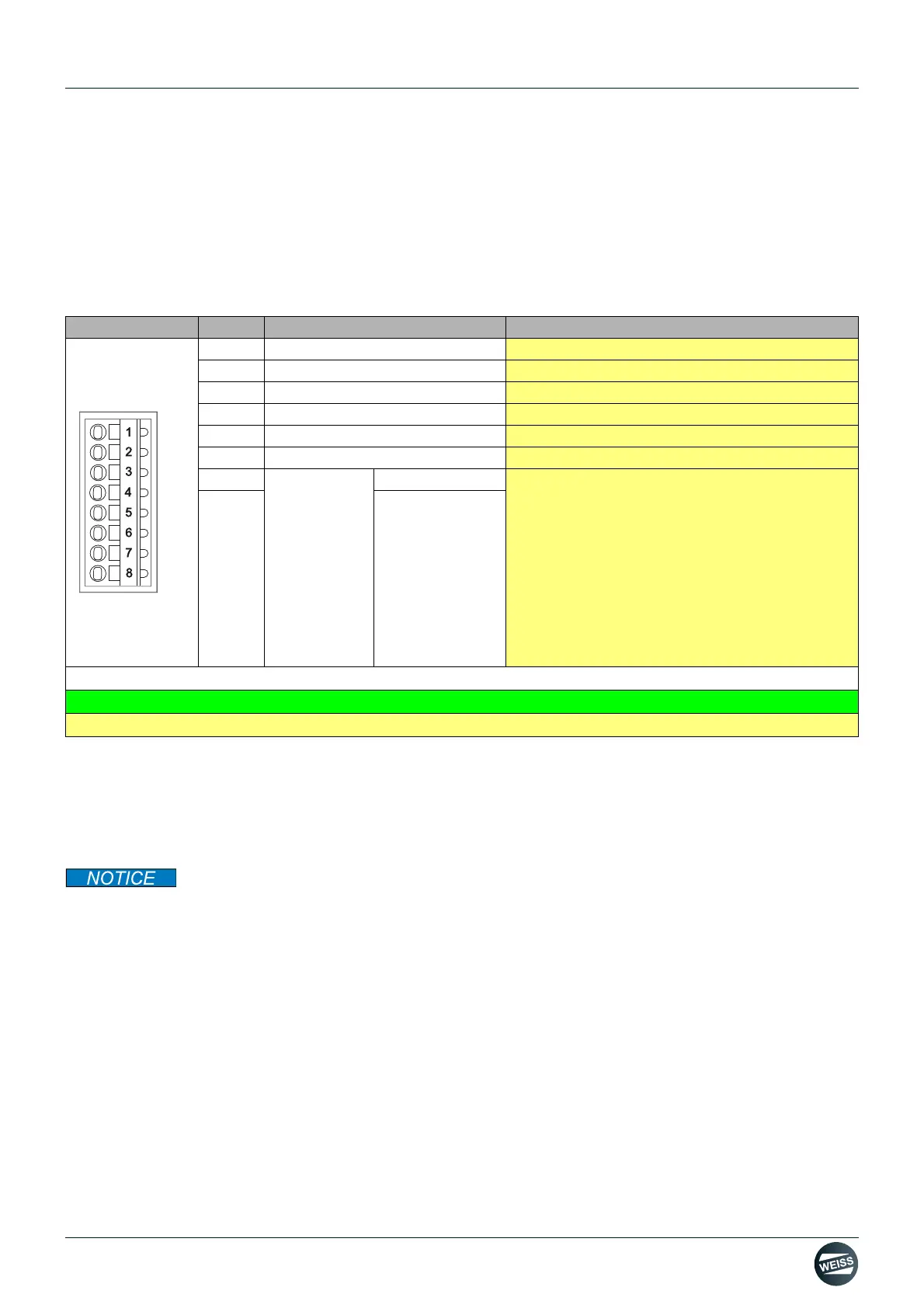

Representation Pin Name Description
1 DI 22+
Do not use
2 DI 22-
2)
Do not use
3 M2
Do not use
4M
Do not use
5 M1
Do not use
6 24 V1
Do not use
7
F-DO 0
4)
DO 16+
3)
Do not use
8
DO 16-
5)
Colour coding in the description:
Green: relevant for EF2
Yellow: Not used for EF2. Do not use!

