COMPONENT DESCRIPTIONS | 3.7 SIMOTION D410-2 Control Unit
3.7 SIMOTION D410-2 Control Unit
SIMOTION D is the drive-based version of SIMOTION based on the SINAMICS S120 drive family.
In SIMOTION D, the SIMOTION PLC and motion control functionalities as well as the SINAMICS S120 drive soft-
ware run on shared control hardware.
SIMOTION D410-2 is a compact control unit predestined for single-axis applications.
The SIMOTION D410-2 Control Unit is mounted directly on to the Power Module PM240-2.
The firmware and preset parameters for operation are stored on a CF card that has to be inserted into the slot on the
Control Unit D410-2.
The control unit communicates with external components via the interfaces.
LEDs indicate the operating statuses.

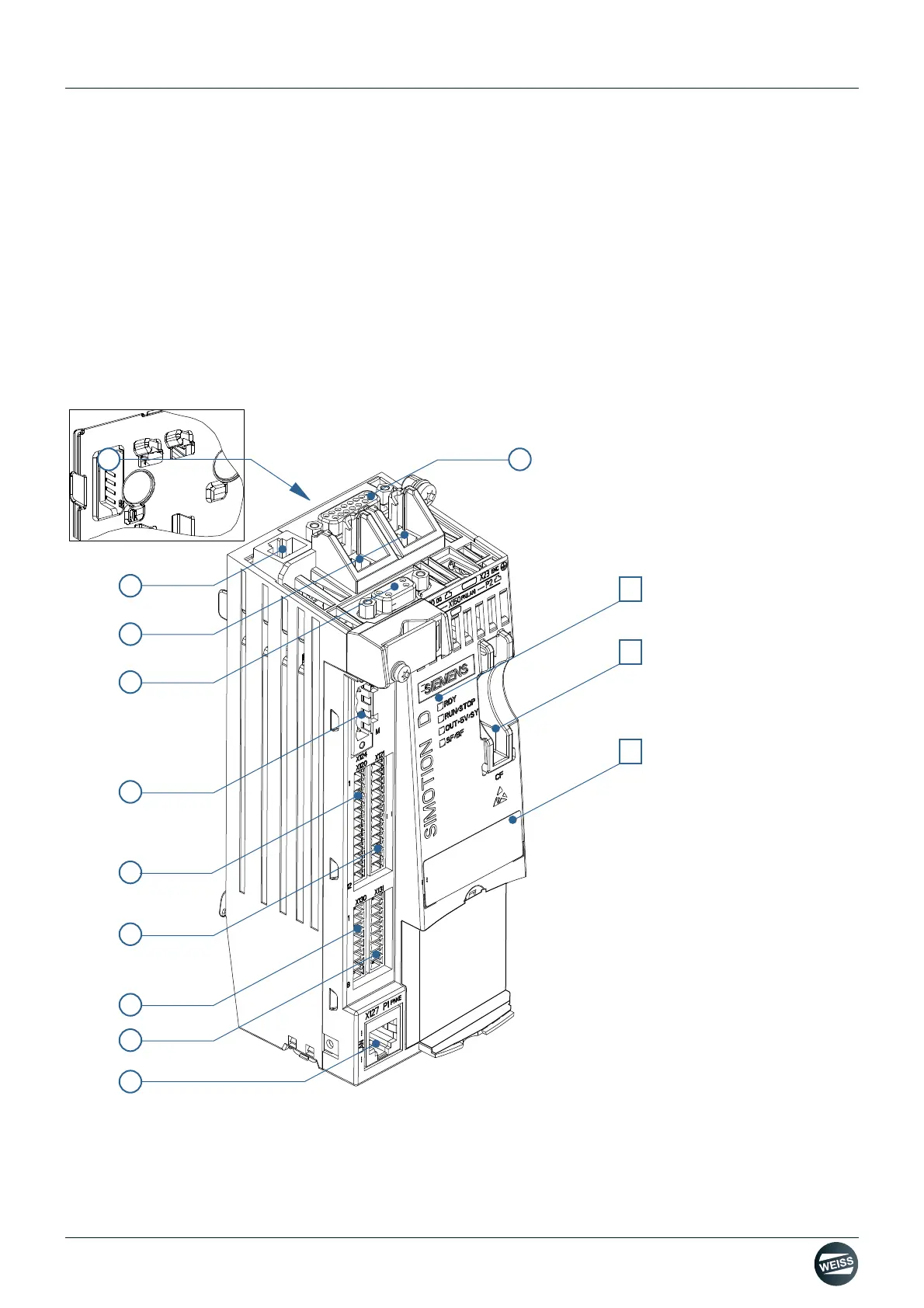

Fig. 14: Interfaces and front elements of the Control Unit D410-2 DP / PN

