WEISS EF2 Series User Manual

Manual R06-2016 57 / 172
ROTARY INDEXING TABLE CONTROLLER
EF2...B
INSTALLATION | 6.2 Power Module PM240-2; frame size FSA / FSB
6.2.1.2 Frame size EF2300
 All dimensions in mm and (inch)

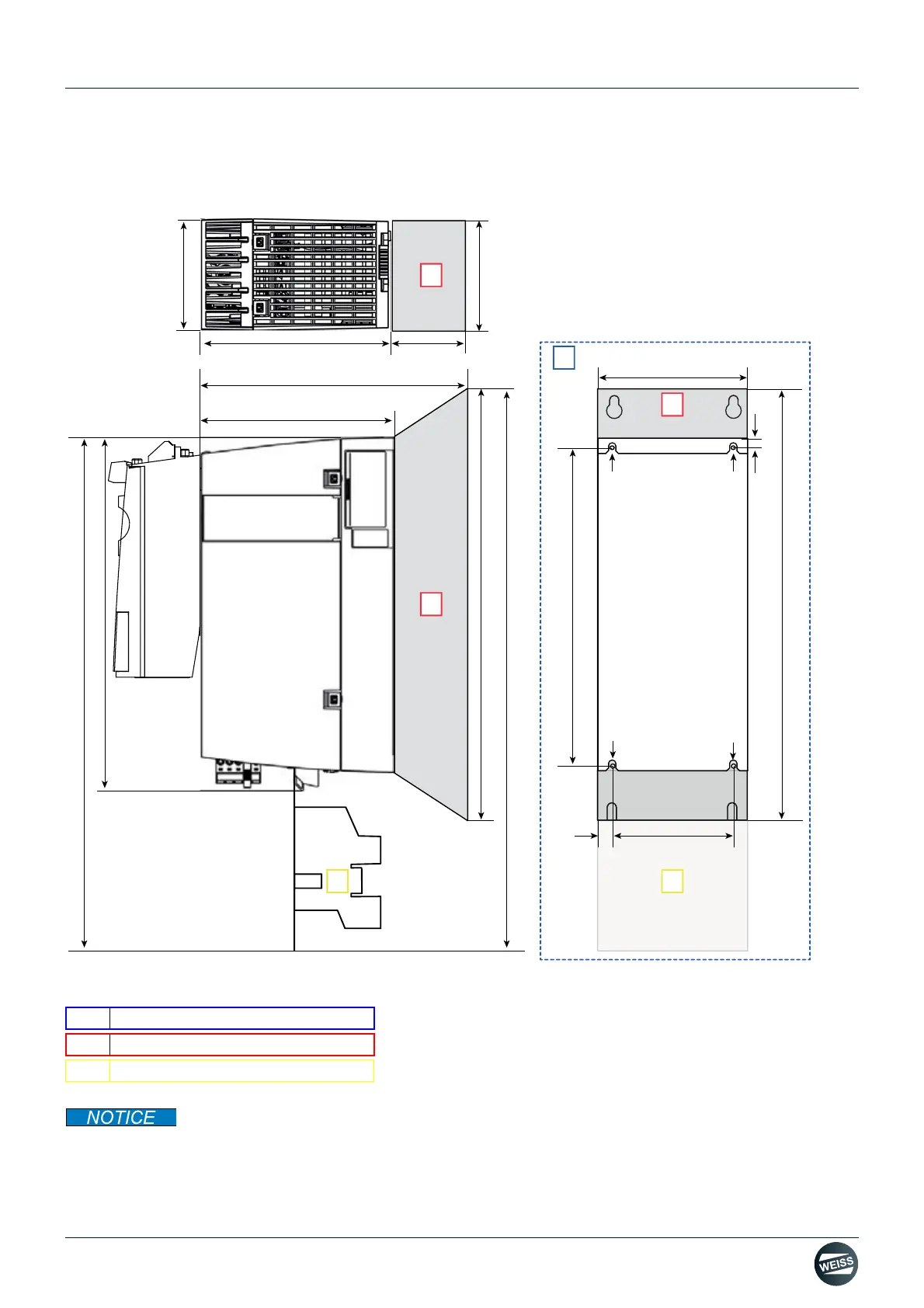

Fig. 29: Dimensions of Power Module PM240-2; frame size FSB
Take the boreholes for brake resistor and shielding plate into account
Power module, brake resistor and shielding plate have different hole patterns. WEISS GmbH recommends drilling
the boreholes for all three components during the installation. This way, further drilling, possible interferences due to
metal chips and mechanical loads are avoided during an eventual retrofitting.
[A] Ventilation clearance
[B] Braking resistor
[C] Shielding plate
A
B
B
B
M4
FSB
M4
M4
291 (11.46)
165 (6.5)
225 (8.86)
281 (11.06)
80 (3.15)
6 (0.24)
288 (11.34)
M4
165 (6.5)
100 (3.94)
C
60 (2.36)
100 (3.94)
100 (3.94)
288 (11.34)
10 (0.39)
417 (16.42)
403 (15.87)
C
