ROTARY INDEXING TABLE CONTROLLER EF2...B
COMPONENT DESCRIPTIONS | 3.2 External braking resistor (option)
3.2 External braking resistor (option)
The Power Modules PM240-2 are assigned to fixed values of the braking resistors:
0.37 kW, 1 AC 230 V, 390 ohm, peak power = 1.5 kW
1.50 kW, 3 AC 400 V, 150 ohm, peak power = 2.75 kW
2.20 kW, 3 AC 400 V, 150 ohm, peak power = 2.75 kW
3.00 kW, 3 AC 400 V, 80 ohm, peak power = 4.0 kW
The peak power is limited to a maximum of 12 sec. in an interval of 240 sec., if there is no performance in the remai-
ning period. It may be necessary to test the stopping time.

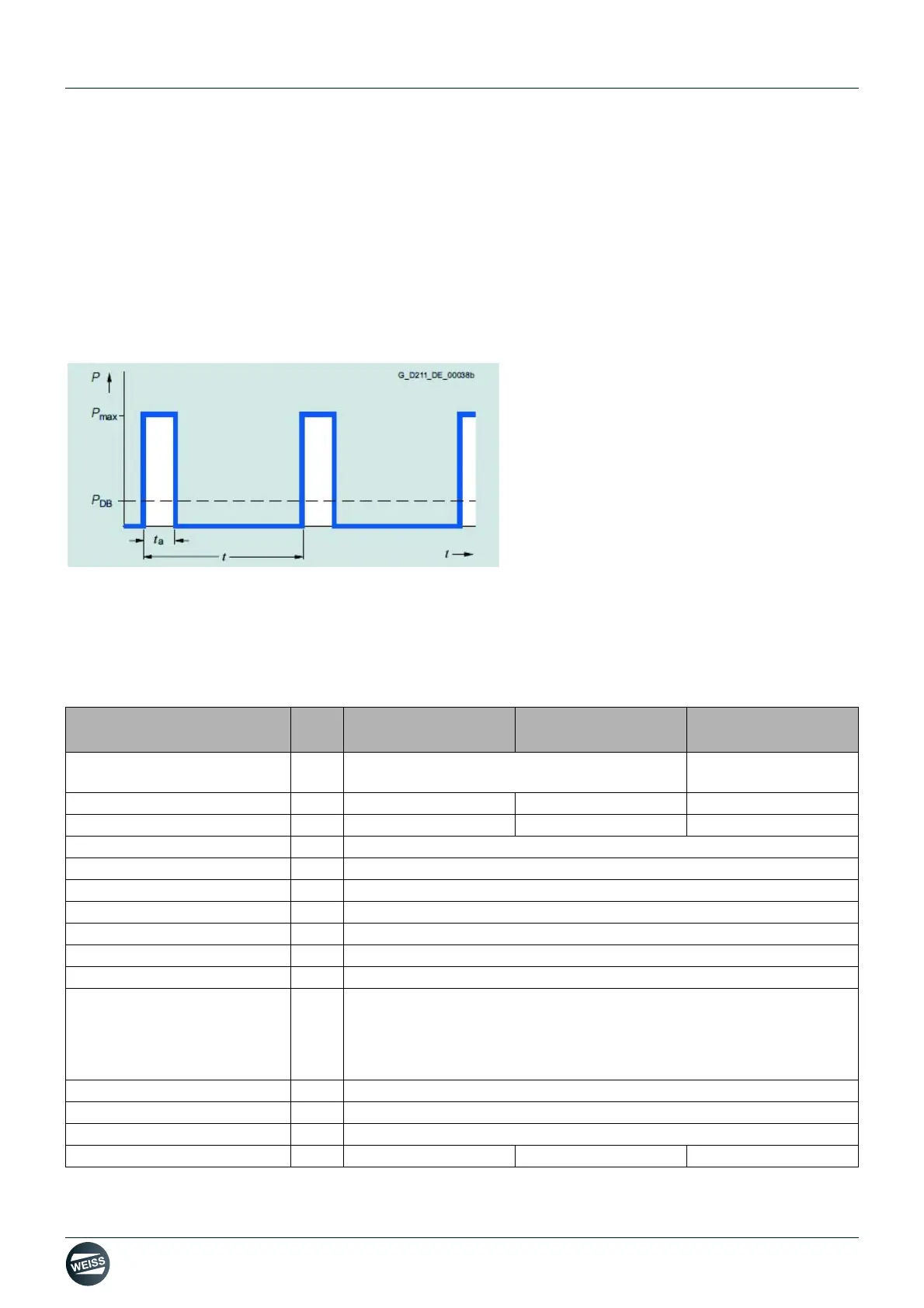

Fig. 7: Load diagram for braking resistors in blocksize format
ta = 12 s
t = 240 s
3.2.1 Technical data
Refer to the device manual of the manufacturer for further information.
Order number EF2037B
BWD250390K01R0901SI
EF2150B / EF2220B
BWD500150K01R0901SI
EF2300B
BWD600080K01R1002SI
Suitable for power modules of
frame size
FSA FSB
Peak power P
max kW 1.5 2.5 4.0
Resistance Ω 390 150 80
Tolerance (resistance value) % ± 5 at room temperature
Tolerance coefficient TC - 20...100 at 10
-6
/K
Insulation resistance R
ISO MΩ≥ 100 (Umeas = 1.000 VDC)
Inductance L µH ≤ 30 ( f = 300 kHz, U
meas = 50 mV)
Capacitance against housing C pF ≤ 300 ( f = 300 kHz, U
meas = 50 mV)
cCSAus approvals - Standard CSA-C22.2
cURus approvals - UL 508
Max. operating voltage U
B
V
≤ 700 AC taking the intrinsic safety into account
≤ 1,000 DC taking the intrinsic safety into account
≤ 600 AC UL approval
≤ 850 DC UL approval
Isolation voltage U
ISO V ≥ 4,000 AC (AC; f = 50 Hz, t = 1 min)
Max. housing temperature °C ≤ 250 (free convection)
Storage temperature °C -25...+85
Weight kg 1.2 1.6 2.5
