8.3 Machine configuration
8.3.1 Ethernet interface
Before beginning with the machine configuration, the Ethernet interface should be chekked.
If necessary, the settings can be changed.

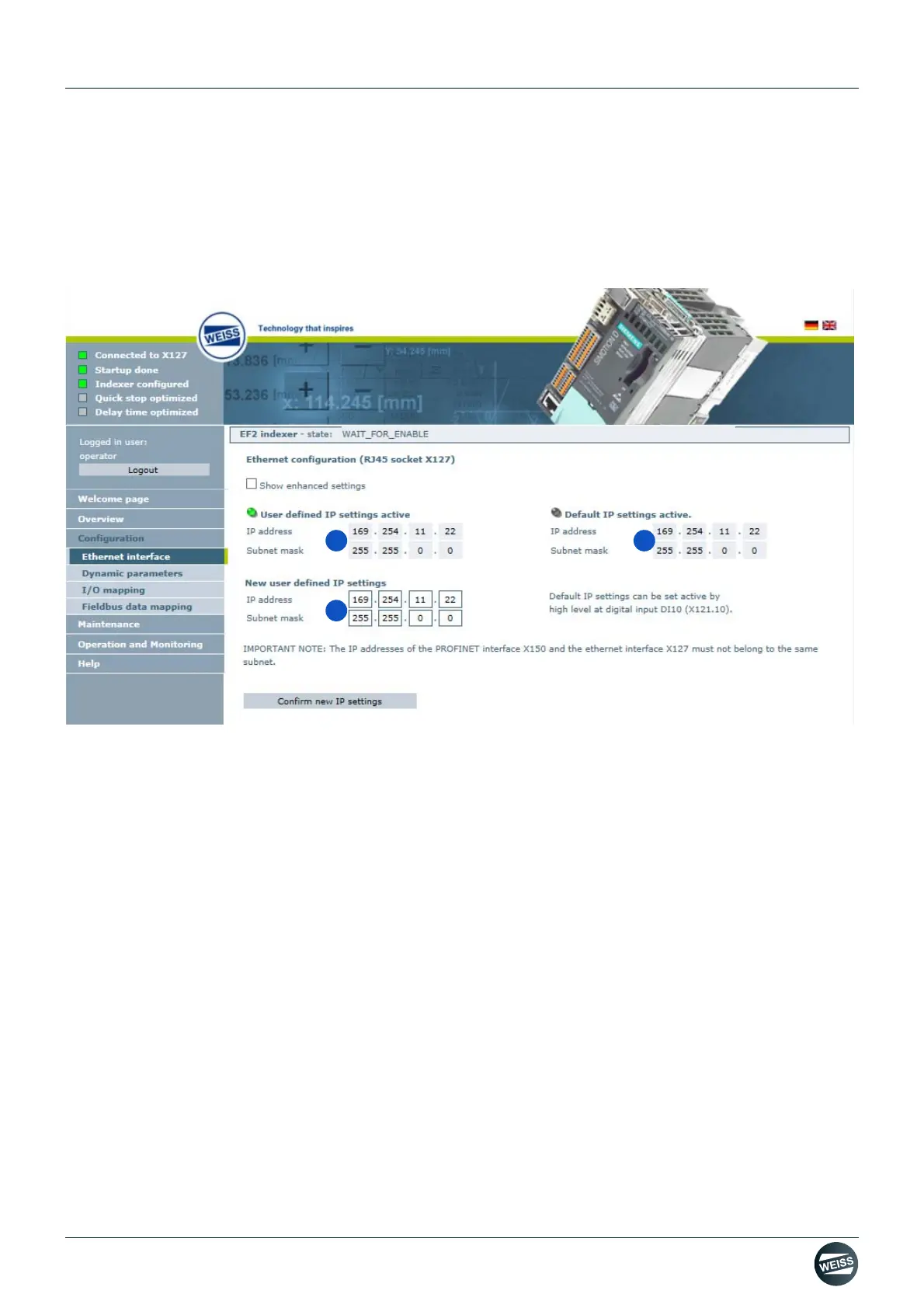

Fig. 53: Configuring the Ethernet interface
• (1) Displays the user-defined IP setting
• (2) Input fields for the entry of new user-defined IP settings
• (3) Displays the default IP setting
This is the default IP setting for the supplied controller and cannot be changed.
The default IP setting can be used to restore the initial setting.
Setting the default IP
If the user (operator) does not know the IP configuration of a rotary indexing table, the controller cannot be acces-
sed.
In this case, the default IP configuration (169.254.11.22) for the Ethernet interface can be activated by connecting
24 VDC to input DI10 (terminal X121.10).
This known IP address can be used to access the controller then to check or change the user-defined IP configura-
tion.
In order to make the user-defined IP configuration effective, the 24 VDC needs to be disconnected again from
the DI10 input. Make sure that there are not several participants in the same network with the default IP confi-
guration.
