Manual R06-201672 / 172
ROTARY INDEXING TABLE CONTROLLER EF2...B
INSTALLATION | 6.6 SIMOTION D410-2 Control Unit
6.6.3 Creating a shield connection
Using shielded cables
The following options are available for the shield connection when using shielded cables:
• A shield connection using a separately attachable shielding bus
• Shield connection via the M3 screw-on shield connecting element on the housing of the SIMOTION D410-2
Using a shielding bus:
If a shielding bus is used, proceed as follows:
1. Attach the cable shield to a grounded shielding bus after the cable entry point in the cabinet. Strip the isolation off
the cable first.
2. Continue routing the shielded cable up to the module, but do not make the connection to the shield there.
Using a shield connection on the SIMOTION D410-2:
1. Unscrew the holding clamp of the M3 shield connection (Torx screwdriver T10) at the top of the SIMOTION
D410-2 until there is a space below the clamp.
2. Insert the cable. The cable shield must first be exposed.
3. Tighten the fixing bracket so that the cable shield and cable are pressed against the shield connection (tightening
torque 0.8 Nm).
The following figure shows how to connect the cable shield.

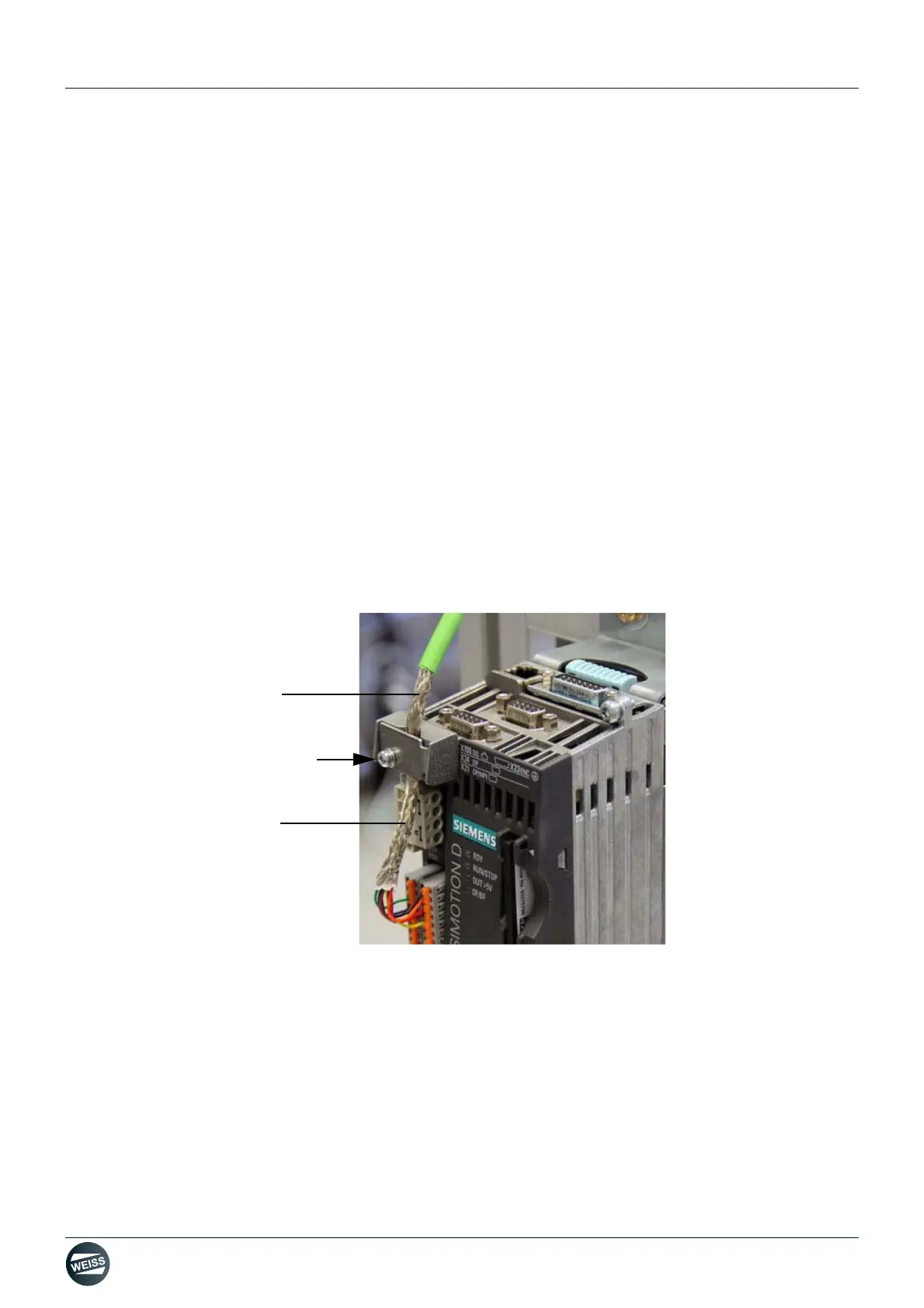

Fig. 45: Shield connection of Control Unit D410-2
Cable shield exposed
Cable routing to the shield
connection
