ROTARY INDEXING TABLE CONTROLLER EF2...B
COMMUNICATION WITH A HIGHER-LEVEL CONTROLLER | 10.2 Profinet IO RT

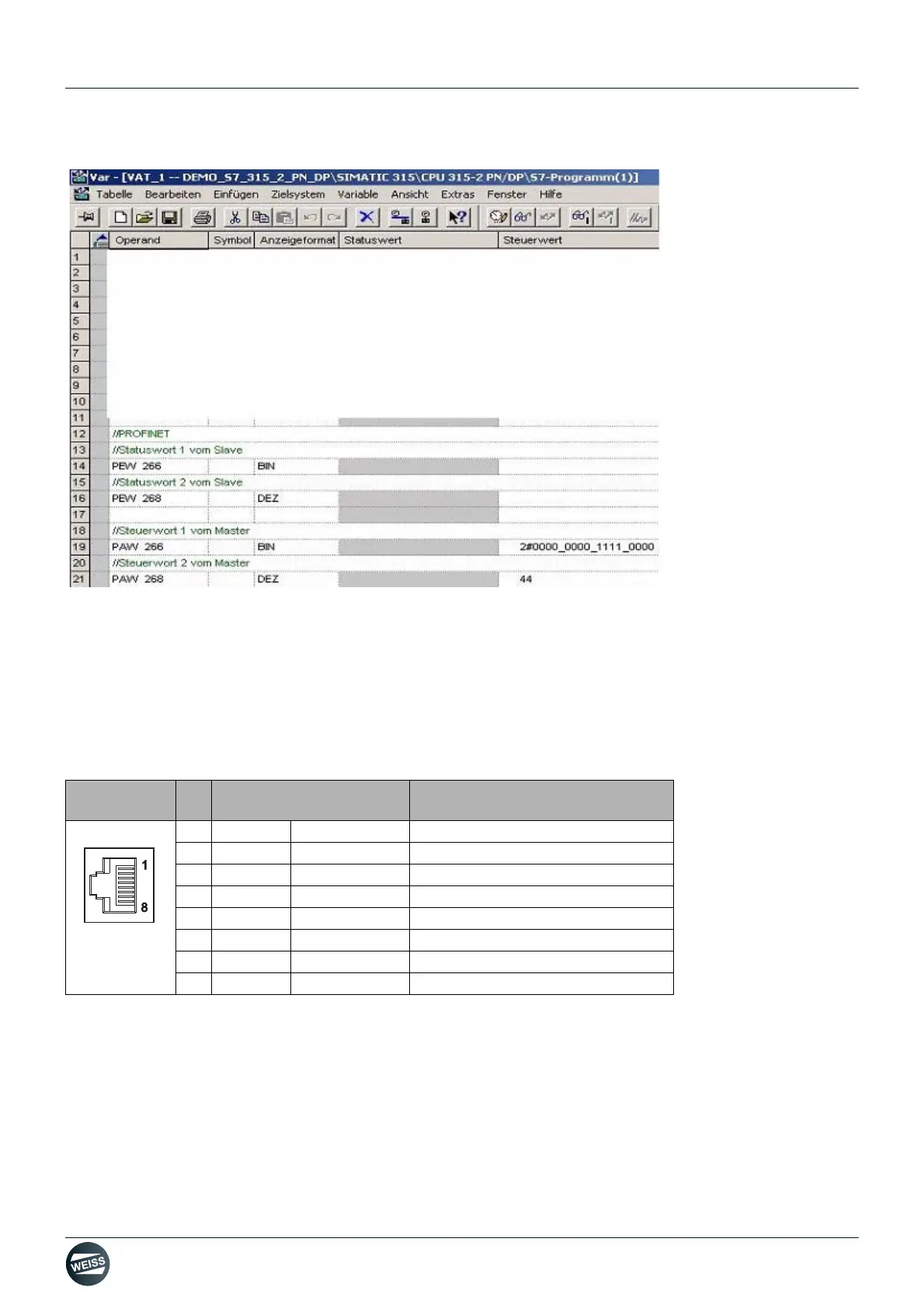

10.2.1 Interface X150
PROFINET is an open component-based industrial communication system using Ethernet for distributed automation
systems.
SIMOTION D410-2 DP/PN has a PROFINET interface with two ports (X150 P1-P2) onboard. The PROFINET inter-
face supports operation of a SIMOTION D410-2 DP/PN as an IO controller and/or as an I device.
Representa-
tion
Pin
Name Description
1 TXP Output Transmit data +
2 TXN Output Transmit data -
3 RXP Input Receive data +
4 - - Reserved, do not use
5 - - Reserved, do not use
6 RXN Input Receive data -
7 - - Reserved, do not use
8 - - Reserved, do not use
