INSTALLATION | 6.6 SIMOTION D410-2 Control Unit
6.6 SIMOTION D410-2 Control Unit
6.6.1 Mounting the control unit
Mounting the control unit:

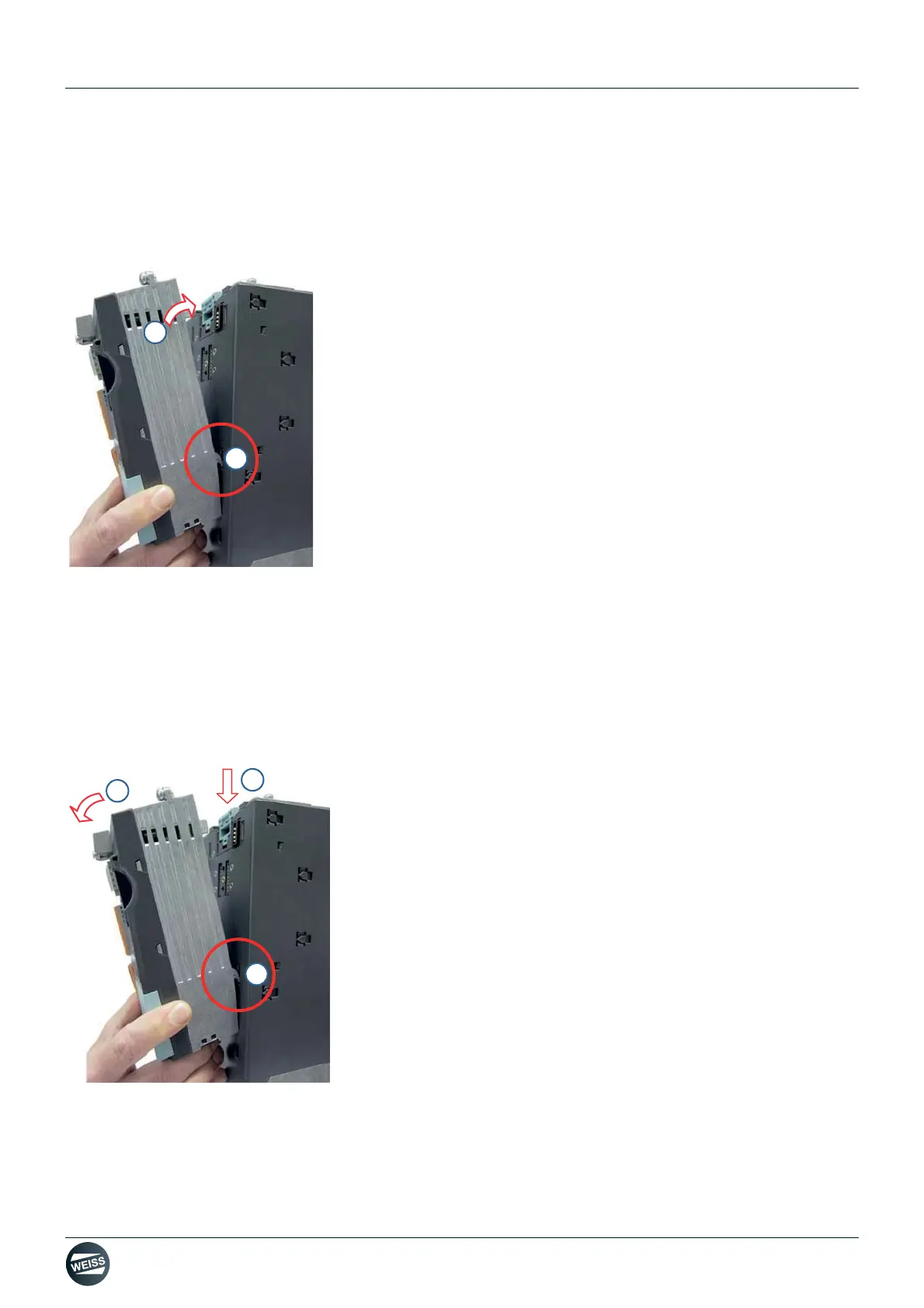

Fig. 42: Mechanical assembly of Control Unit D410-2
The SIMOTION D410-2 Control Unit is mounted directly on to the Power Module PM240-2.
1. Attach the control module to the recesses of the power module using the hooks.
2. Press the control module against the power module.
 The blue latch must snap into place.
Disassembly of the control unit:
Fig. 43: Mechanical disassembly of Control Unit D410-2
1. Press the blue latch down.
2. Swivel the control unit to the front.
3. Remove the control unit.
1.
2.
1.
2.
3.
