1128500 WPC 2000 User Manual
3-26 Initialization, Setup, and Checkout
Setting Press Option Switches
Two switch blocks are provided on the WPC 2000 Main Processor board that you can use to
set various operating parameters for your presses. The two switch blocks, S101 and S102, are
located just beneath the B processor chip and to the right of the Auxiliary E-stop Relay board
on center- and right-mount controls (see Figure 2-12, page 2-23), above the B chip and to the
left of the relay board on left-mount units (see Figure 2-13, page 2-24). The following
sections describe how to make the appropriate settings on these two switch blocks.
Making Settings on Switch Block S101
This section shows you how to make settings on switch block S101. All eight S101 switches
are factory-set to the OFF position. To set a switch to ON (see Figure 3-11), push up on the
switch with a small screwdriver or your fingernail.
Switches 1 and 2 – Top-stop “On” Angle Range
Options switches 1 and 2 control the range of angles within which the Top-stop “On” Angle
falls (see Installing the Overrun Sensor Magnet, page 3-6). WPC 2000 uses these switch
settings to determine at what angle to begin the overrun sensor closure test, which is used to
make sure that the overrun limit switch closes at the same angle on every stroke. Settings for
option switches 1 and 2 are shown in Table 3-4, page 3-27.
ELECTRIC SHOCK HAZARD WHEN WORKING INSIDE THE ENCLOSURE
Turn off and disconnect power from WPC 2000 and from the machinery it is connected to before
making any wiring connections or settings inside the enclosure. This includes power to the
machine control and motor.
Failure to comply with these instructions could result in death or serious injury.
CYCLE POWER AFTER CHANGING OPTION SWITCH SETTINGS
Whenever you change an option switch setting, you must power down the WPC 2000 and power it
back up again in order to enable the new setting. If you do not cycle power, the previous switch
setting will remain in effect.
-

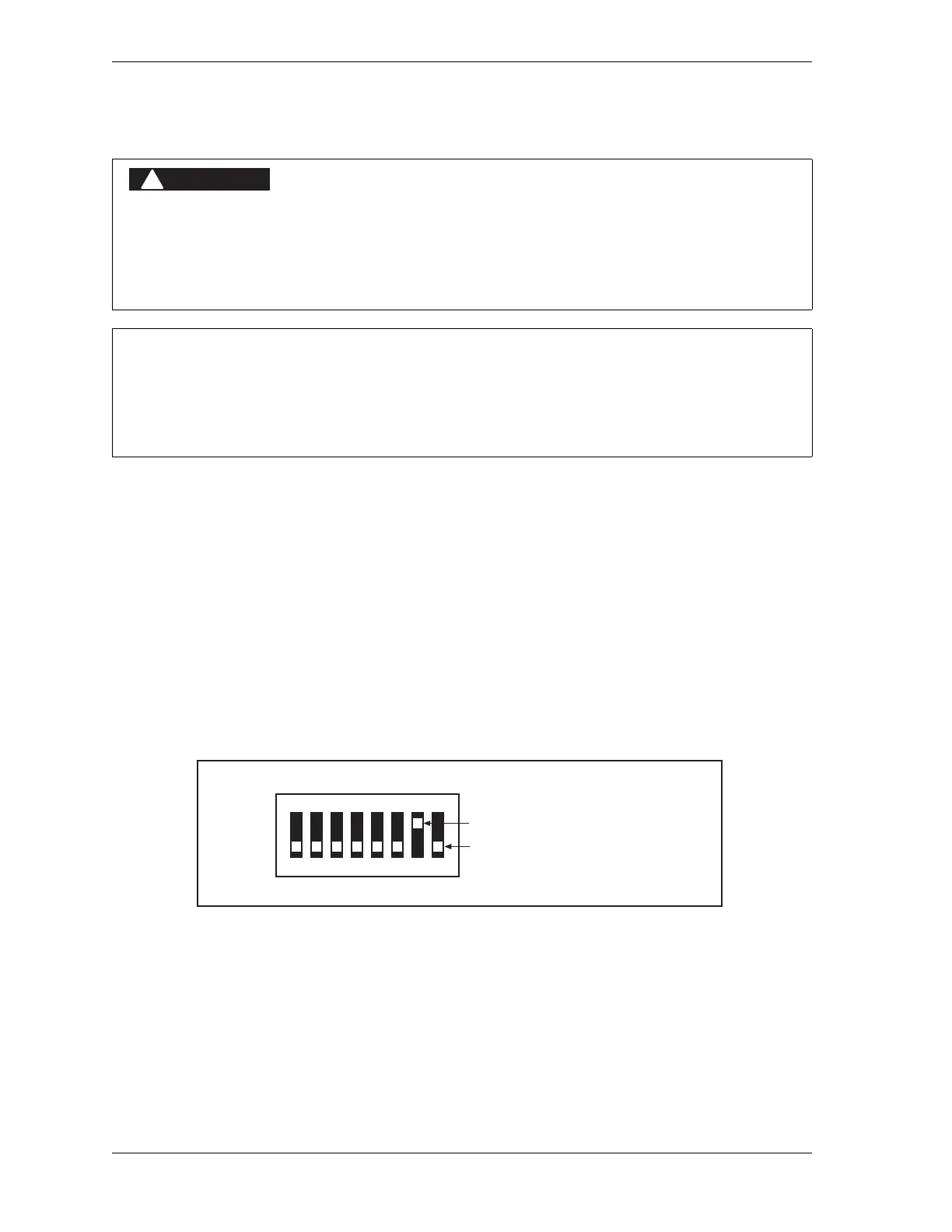

Figure 3-11. S101 Option Switch OFF and ON Settings
ON
12345678
Switch ON setting
S101
Switch OFF setting (Default)
To Next Page
