1128500 WPC 2000 User Manual
3-2 Initialization, Setup, and Checkout
To select a parameter so you can view or adjust its setting, press the Reset/Select button on the
WPC 2000 display until the indicator segment for that parameter is illuminated. The value of
the parameter appears in the digital LED readout. Locations of the indicator segments on the
WPC 2000 display are shown in Figure 3-1.
Each time you press the Reset/Select button, the next indicator segment in the sequence is
illuminated. To illuminate the group of four indicator segments in the lower half of the
display, you must switch the press to Inch mode.
“Angle/SPM” is the default indicator segment when the press is in Inch mode, the crankshaft
angle being displayed in the digital LED readout. Whenever you change operating mode to
Single-stroke or Continuous, “Counter” becomes the active (i.e., illuminated) segment, and
the current parts count is displayed in the digital readout. These defaults are summarized in
Table 3-1. When the press is stopped and “Angle/SPM” is selected, the crankshaft angle is
displayed for all Stroke Select settings.
* The Counter does not operate in Inch mode.
When the default indicator segment is selected, the crank-angle clock shows the crankshaft
angle of the press in all Stroke Select settings. Each LED on the clock represents
approximately 11°. The crank-angle clock shows the press Stopping Angle, Top-stop Angle,
and Auto Carry-up Angle when those indicator segments are illuminated.

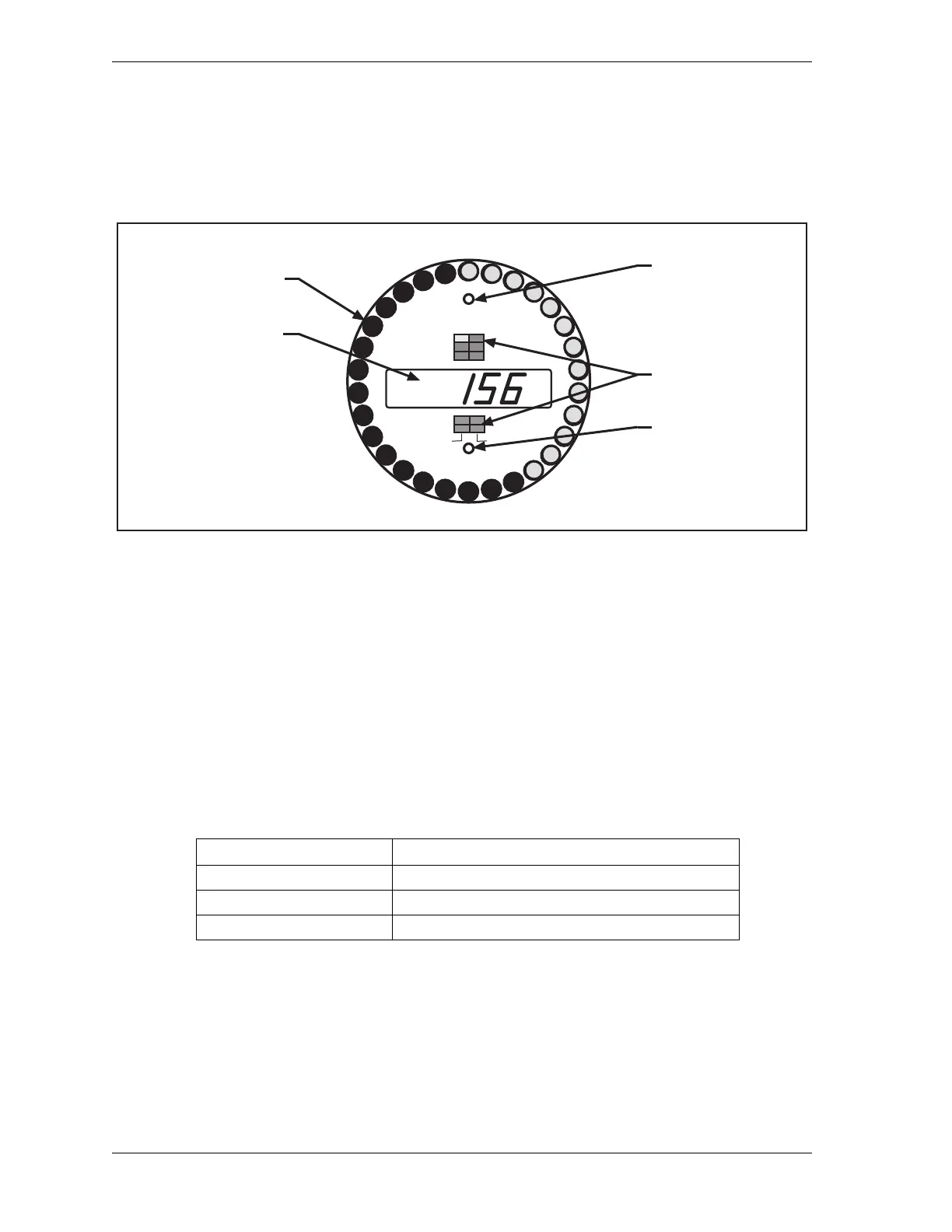

Figure 3-1. WPC 2000 Display Showing Indicator Segments
Table 3-1. WPC 2000 Display: Default Parameters (Press Running)
Stroke Select Setting Parameter Shown in Digital LED Display
Inch * Crankshaft angle (in degrees)
Single-stroke Parts count
Continuous Parts count
Digital Display
Crank Angle
Press Speed
Counter
Error Codes
Settings
Crank-angle Clock
LEDs
Display Indicator
Segments
Interrupted Stroke
LED
Brake Warning
LED
BRAKE WARNING
INTERRUPTED STROKE
TOP STOP ANGLE
AUTO CARRYUP
STOP TIME LIMIT
MICRO-INCH
STOPPING TIME
STOPPING ANGLE
90
° STOP TEST
COUNTER
COUNTER PRESET
ANGLE / SPM
cam on angle
cam off angle
